Set of wood covers for BMW 5 Series E39 523i (2000)

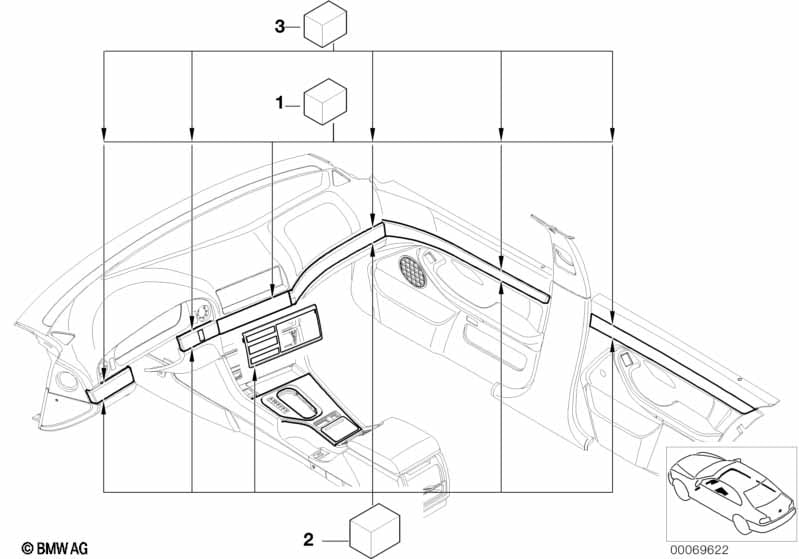

This Set of wood covers technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of wooden covers "Nussbaum" | 1 | 51418200707 | ENDED | Shop at ECS Tuning | |||||
| 01 | Set of wooden covers "Vavona" | 1 | 51418203724 | $820.26 | ENDED | Shop at ECS Tuning | ||||
| Tire pressure monitoring system (TPMS) | ||||||||||
| 01 | Set of wooden covers "Nussbaum" | 1 | 09/1997 | 51418200709 | ENDED | Shop at ECS Tuning | ||||
| 01 | Set of wooden covers "Vavona" | 1 | 09/1997 | 51418203726 | $820.26 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO ON BORD MONITOR Tire pressure monitoring system (TPMS) |
||||||||||
| 02 | Set of wooden covers "Vavona" | 1 | 09/1997 | 51418203730 | $820.26 | ENDED | Shop at ECS Tuning | |||
| 02 | Set of wooden covers "Nussbaum" | 1 | 09/1997 | 51418209884 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor |
=Yes |
|||||||||
| 02 | Set of wooden covers "Vavona" | 1 | 51418203728 | ENDED | Shop at ECS Tuning | |||||
| 02 | Set of wooden covers "Nussbaum" | 1 | 51418209882 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 02 | Set of wooden covers | BRUYERE CLUB | 1 | 51412499977 | $668.00 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Set of wooden covers | BRUYERE CLUB | 1 | 51412499978 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor 16:9 |
=Yes |
|||||||||
| 03 | Set of wooden covers "Vavona" | 1 | 03/2000 | 51417009432 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers "Nussbaum" | 1 | 03/2000 | 51417013735 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with TPMS tire pressure monitoring system and On-board monitor 16:9 |
=Yes =Yes |
|||||||||
| 03 | Set of wooden covers "Vavona" | 1 | 03/2000 | 51417013733 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers "Nussbaum" | 1 | 03/2000 | 51417013737 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
