Trim, decor elements, front for BMW 3 Series F30 LCI 335dX (2018)

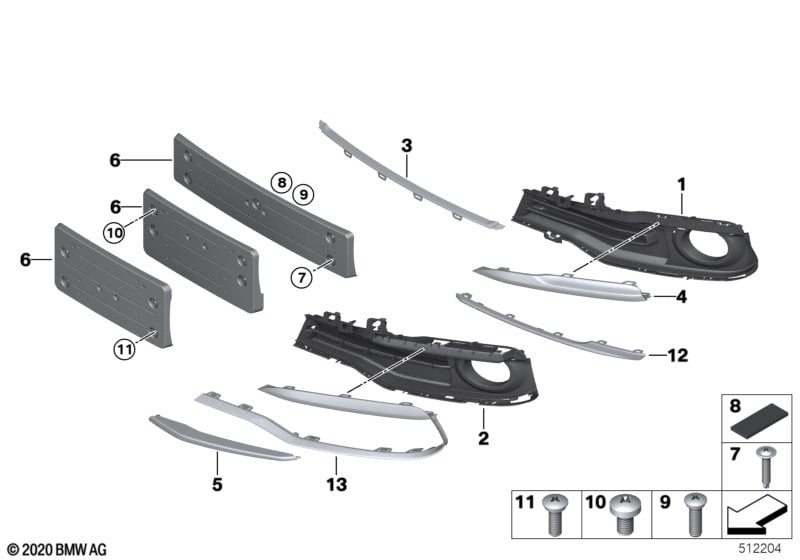

This Trim, decor elements, front technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 335dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports package and Sport Line and Sport Line and M Aerodynamics package and High speed synchronisation |
P337A=No P7ACA=No P7B1A=No S715A=No S840A=No |
|||||||||
| 01 | Partially open grid, right | BASIS | 1 | 51117396878 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Sport Line and Automatic transmission and M Aerodynamics package and Hot-climate version |
P7ACA=No P7B1A=No S205A=Yes S715A=No S823A=Yes |
|||||||||
| 01 | Partially open grid, left | BASIS | 1 | 51117396877 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and M Aerodynamics package |
P7B1A=Yes S715A=No |
|||||||||
| 02 | Partially open grid, left | EDITION SPORT | 1 | 51117464489 | Shop at ECS Tuning | |||||
| 02 | Partially open grid, right | EDITION SPORT | 1 | 51117464490 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Automatic transmission and M Aerodynamics package and Hot-climate version |
P7B1A=Yes S205A=Yes S715A=No S823A=Yes |
|||||||||
| 02 | Open grid, right | EDITION SPORT | 1 | 07/2017 | 51117464492 | Shop at ECS Tuning | ||||
| For vehicles with Sport Line and Exhaust emission standards EU6 RDE and Automatic transmission and M Aerodynamics package and Hot-climate version |
P7ACA=Yes S1DEA=Yes S205A=Yes S715A=No S823A=Yes |
|||||||||
| 02 | Open grid, right | SPORT | 1 | 51117396884 | Shop at ECS Tuning | |||||
| 02 | Partially open grid, left | SPORT | 1 | 51117396887 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Sport Line and Exhaust emission standards EU6 RDE and Automatic transmission and M Aerodynamics package and Hot-climate version |
P7ACA=Yes P7B1A=No S1DEA=Yes S205A=Yes S715A=No S823A=Yes |
|||||||||
| 02 | Partially open grid, right | SPORT | 1 | 51117396888 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line |
P7S2A=Yes |
|||||||||
| 03 | Finisher, rod, center | LUXURY | 1 | 51117396833 | Shop at ECS Tuning | |||||
| For vehicles with Edition Luxury Line |
P7B2A=Yes |
|||||||||
| 03 | Finisher, rod, center | 1 | 51117404627 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line or Sport Line |
P7ACA=Yes P7B1A=Yes |
|||||||||
| 03 | Finisher, rod, center | SPORT | 1 | 51117396831 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line |
P7S2A=Yes |
|||||||||
| 04 | Air inlet finisher, left | LUXURY | 1 | 51117396841 | Shop at ECS Tuning | |||||
| 04 | Air inlet finisher, right | LUXURY | 1 | 51117396842 | Shop at ECS Tuning | |||||
| For vehicles with Edition Luxury Line |
P7B2A=Yes |
|||||||||
| 04 | Air inlet finisher, left | 1 | 51117404625 | Shop at ECS Tuning | ||||||
| 04 | Air inlet finisher, right | 1 | 51117404626 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Edition Luxury Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7B2A=No P7S2A=No S715A=No |
|||||||||
| 04 | Air inlet finisher, left | BASIS | 1 | 51117397615 | Shop at ECS Tuning | |||||
| 04 | Air inlet finisher, right | BASIS | 1 | 51117397616 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line or Sport Line |
P7ACA=Yes P7B1A=Yes |
|||||||||
| 05 | Finisher, rod, left | SPORT | 1 | 51117396835 | Shop at ECS Tuning | |||||
| 05 | Finisher, rod, right | SPORT | 1 | 51117396836 | Shop at ECS Tuning | |||||
| 06 | Baseplate for license plate | ECE | 1 | 51137396926 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | Baseplate for license plate | US / JAPAN | 1 | 51137396928 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Active cruise control+Stop&Go function |
L807A=Yes S5DFA=Yes |
|||||||||
| 06 | Baseplate for license plate | ACC US / JAPAN | 1 | 51117397614 | Shop at ECS Tuning | |||||
| 07 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 5 | 07146959925 | $0.29 | Shop at ECS Tuning | ||||
| 08 | Adhesive pad | 10X45MM | 1 | 51187134021 | $1.00 | Shop at ECS Tuning | ||||
| 09 | Phillips screw f plastic material | TS5X16MM | 2 | 51118122522 | $0.39 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | TS 5X16 | 2 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with Sport Line or Sport Line |
P7ACA=Yes P7B1A=Yes |
|||||||||
| 13 | Air inlet finisher, left | SPORT | 1 | 51117396853 | Shop at ECS Tuning | |||||
| 13 | Air inlet finisher, right | SPORT | 1 | 51117396854 | Shop at ECS Tuning | |||||
