Mounting parts, engine compartment for BMW X1 F48 20i

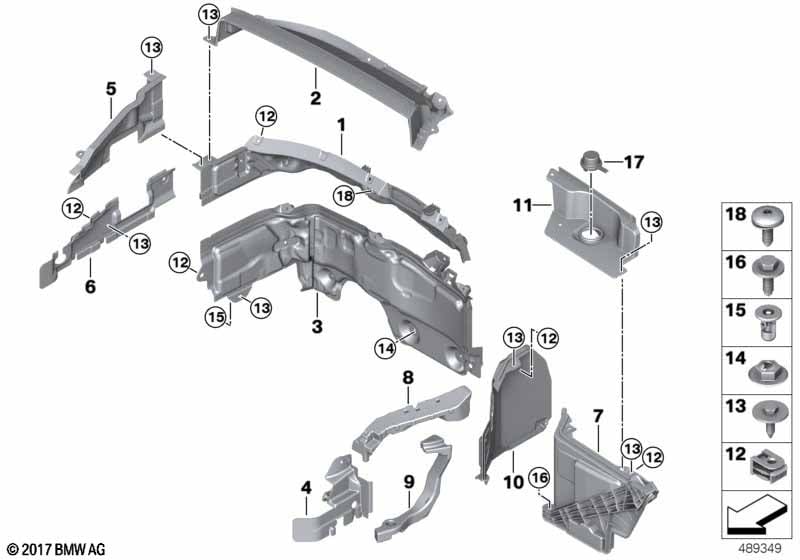

This Mounting parts, engine compartment technical drawing provides a detailed breakdown of the assembly for the X1 F48 20i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bulkhead, upper section, rear | 1 | 51717290714 | Shop at ECS Tuning | ||||||
| 02 | Bulkhead, upper section, front | 1 | 51717290716 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead lower section | 1 | 51717290814 | Shop at ECS Tuning | ||||||
| 07 | Bracket, battery carrier | 1 | 51717419826 | Shop at ECS Tuning | ||||||
| 10 | Battery cover | BENZIN | 1 | 51717290817 | Shop at ECS Tuning | |||||
| 11 | Battery cover | 1 | 51717290727 | Shop at ECS Tuning | ||||||
| 12 | C-clip for plastic nut | TS5 | 8 | 07147311312 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | TS5X20 SW8 D=22 | 10 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Body nut | D=18MM, ZNS-3 | 2 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 15 | Expanding nut | L=18.4, DMAX=18 | 2 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X40-PC-U2-10 | 2 | 51719908456 | Shop at ECS Tuning | |||||
| 17 | Cap | 1 | 51717317817 | Shop at ECS Tuning | ||||||
| 18 | Torx screw with washer | 3 | 07147142046 | $0.71 | Shop at ECS Tuning |
