Trim, windshield cowl, outer for BMW MINI Clubman F54 Cooper (2019)

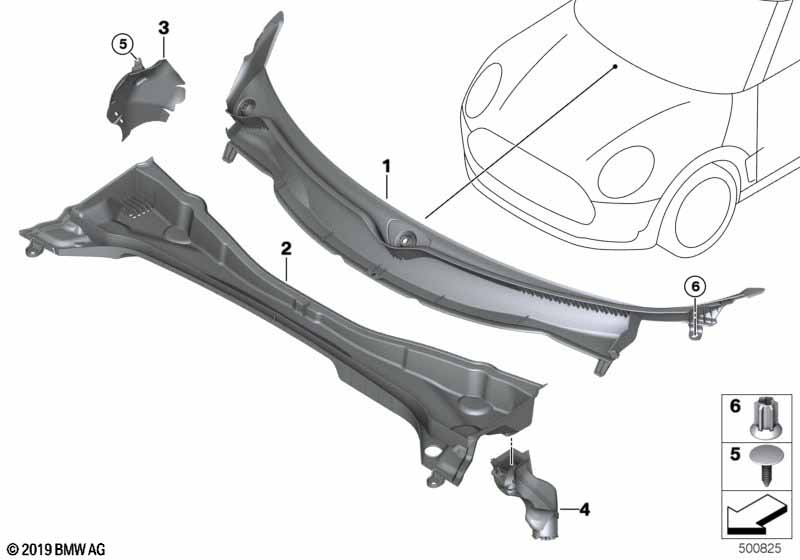

This Trim, windshield cowl, outer technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cowl panel cover, Part 1 | 1 | 51717354218 | Shop at ECS Tuning | ||||||
| 02 | Cowl panel cover, Part 2 | 1 | 51717354229 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead cowl panel | 1 | 51717363521 | Shop at ECS Tuning | ||||||
| 04 | Discharge duct, left | 1 | 51317355437 | Shop at ECS Tuning | ||||||
| 04 | Discharge duct, right | 1 | 51317355438 | Shop at ECS Tuning | ||||||
| 06 | Push-type nut | 2 | 61138353086 | $0.28 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 Cooper Trim, windshield cowl, outer?
- This technical diagram illustrates the Trim, windshield cowl, outer within the Vehicle trim group for the MINI Clubman F54 Cooper produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Cowl panel cover, Part 1 (Part #51717354218).
- Which models use the hardware listed in this Trim, windshield cowl, outer?
- The hardware and components featured in the Trim, windshield cowl, outer are specific to the MINI Clubman F54 Cooper produced during 2019. These technical specifications ensure that parts like the Cowl panel cover, Part 1 (51717354218) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim, windshield cowl, outer assembly?
- Each item in the Trim, windshield cowl, outer corresponds to the numbered list below the illustration. For the MINI Clubman F54 Cooper, you can identify the Cowl panel cover, Part 1 by locating its position on the schematic, which then links to the official BMW part number 51717354218 for the Vehicle trim section.
