Reinforcement, body for BMW MINI Clubman F54 Cooper (2019)

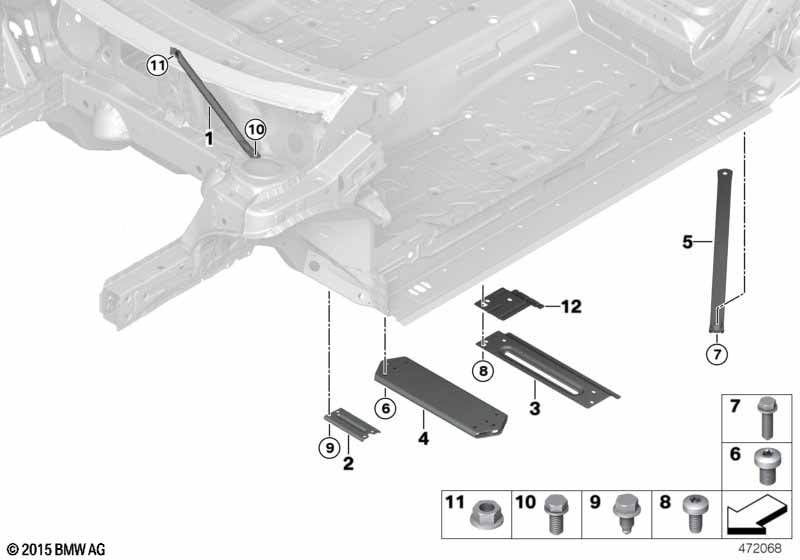

This Reinforcement, body technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Strut tower brace, left | 1 | 51617327753 | Shop at ECS Tuning | ||||||
| 01 | Strut tower brace, right | 1 | 51617327754 | Shop at ECS Tuning | ||||||
| 02 | Connecting support | 1 | 51717292429 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 04 | Cross-brace, tunnel, front | 1 | 51717381493 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package |
S1CBA=No |
|||||||||
| 04 | Cross-brace, tunnel, front | 1 | 51617336753 | Shop at ECS Tuning | ||||||
| 05 | Torsion strut rear | 1 | 51617407055 | Shop at ECS Tuning | ||||||
| 05 | Torsion link, rear right | 1 | 51617407056 | Shop at ECS Tuning | ||||||
| 06 | Countersunk screw | M10X18-10.9-ZNS | 6 | 07119908082 | Shop at ECS Tuning | |||||
| 07 | Screw | M12X1,5X48 | 2 | 07119908596 | Shop at ECS Tuning | |||||
| 08 | Torx screw | M8X18-10.9 ZNS3 | 4 | 33326764505 | $0.80 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X14-8.8-ZNS3 | 4 | 07119906977 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M10X25-10.9ZNS3 | 2 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 11 | Flange nut | M10-10-ZNS3 | 2 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Protective plate for fuel tank | 1 | 12/2015 | 51717468799 | Shop at ECS Tuning | |||||
