Glazing for BMW 3 Series E46 328i (2000)

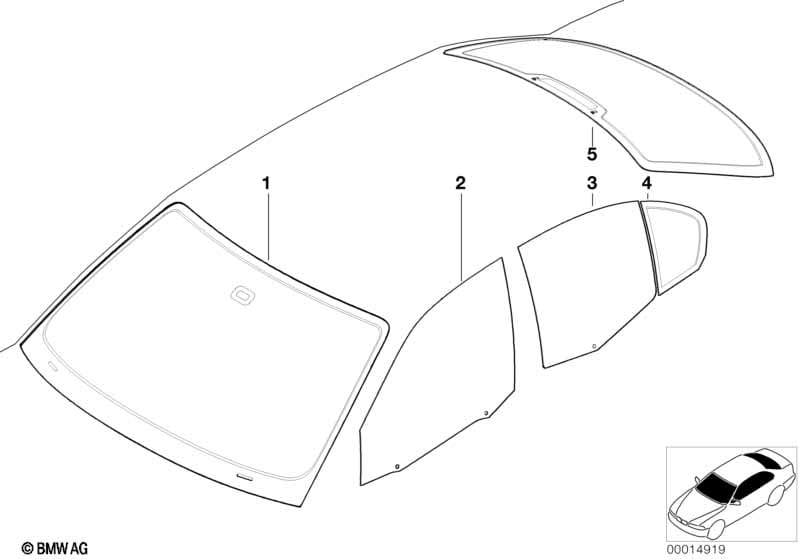

This Glazing technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! Vehicles with rain sensor until 03/99 need in addition an interior rear-mirror including covers. To find out the part number however it is necessary to search for vehicles from 03/99. A modified silkscreen print is applied adjacent to the sun visor in place of the colored wedge. A modified silkscreen print is applied adjacent to the sun visor in place of the colored wedge. |
|||||||||
| For vehicles with National version China and Green windscreen, green shade band and Rain sensor |
L8AAA=No S354A=Yes S521A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | 1 | 10/1998 | 09/2001 | 51318257932 | $435.53 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 10/1998 | 09/2001 | 83192289285 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 10/1998 | 09/2001 | 83192211217 | Shop at ECS Tuning | |||
| -- | Covering Upper | 1 | 10/1998 | 09/2001 | 51318196162 | $32.57 | Shop at ECS Tuning | |||
| -- | Sound insulation windshield | L=1410X15MM | 1 | 10/1998 | 09/2001 | 51489493821 | Shop at ECS Tuning | |||
| For vehicles with National version China and Climate comfort windscreen and Rain sensor |
L8AAA=No S358A=Yes S521A=No |
|||||||||
| 01 | Windshield, infrared | 1 | 51318208454 | $418.50 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318196162 | $32.57 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | L=1410X15MM | 1 | 51489493821 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Rain sensor |
L8AAA=No S354A=Yes S358A=No S521A=No |
|||||||||
| 01 | Green windshield | 1 | 51318196154 | $396.47 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318196162 | $32.57 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | L=1410X15MM | 1 | 51489493821 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Rain sensor |
L8AAA=No S354A=No S358A=No S521A=No |
|||||||||
| 01 | Green windshield | 1 | 51318196157 | $361.57 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318196162 | $32.57 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | L=1410X15MM | 1 | 51489493821 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Rain sensor |
L8AAA=No S354A=No S358A=No S521A=Yes |
|||||||||
| 01 | Windshield | 1 | 09/2001 | 51318257930 | $396.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2001 | 83192289285 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 09/2001 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Covering Upper | 1 | 09/2001 | 51318196162 | $32.57 | Shop at ECS Tuning | ||||
| -- | Sound insulation windshield | L=1410X15MM | 1 | 09/2001 | 51489493821 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Rain sensor |
L8AAA=Yes S354A=No S358A=Yes S521A=Yes |
|||||||||
| 01 | Windshield, infrared | 1 | 09/2001 | 51318208453 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2001 | 83192289285 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 09/2001 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Covering Upper | 1 | 09/2001 | 51318196162 | $32.57 | Shop at ECS Tuning | ||||
| -- | Sound insulation windshield | L=1410X15MM | 1 | 09/2001 | 51489493821 | Shop at ECS Tuning | ||||
| 02 | Side window, green, door, front left | 1 | 51338196025 | $119.76 | Shop at ECS Tuning | |||||
| 02 | Side window, green, door, front right | 1 | 51338196026 | $119.76 | Shop at ECS Tuning | |||||
| 03 | Side window, green, door, rear left | 1 | 51348196027 | $119.93 | Shop at ECS Tuning | |||||
| 03 | Side window, green, door, rear right | 1 | 51348196028 | $119.93 | Shop at ECS Tuning | |||||
| 04 | Side window,green fixed,left rear door | 1 | 51348196029 | $64.25 | Shop at ECS Tuning | |||||
| 04 | Side window,green fixed,right rear door | 1 | 51348196030 | $64.25 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 05 | Rear window green | 1 | 09/1999 | 51317001460 | $355.34 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/1999 | 83192289285 | Shop at ECS Tuning | ||||
| Important notice on standardization! The window supplied as a replacement part is equipped with more plugs than the original and also differs in appearance. Reason: Only the top-level version is now being supplied. Any plugs that will not be used on the individual vehicle must be tied back out of the way. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
