Front panel for BMW MINI Clubman F54 One (2019)

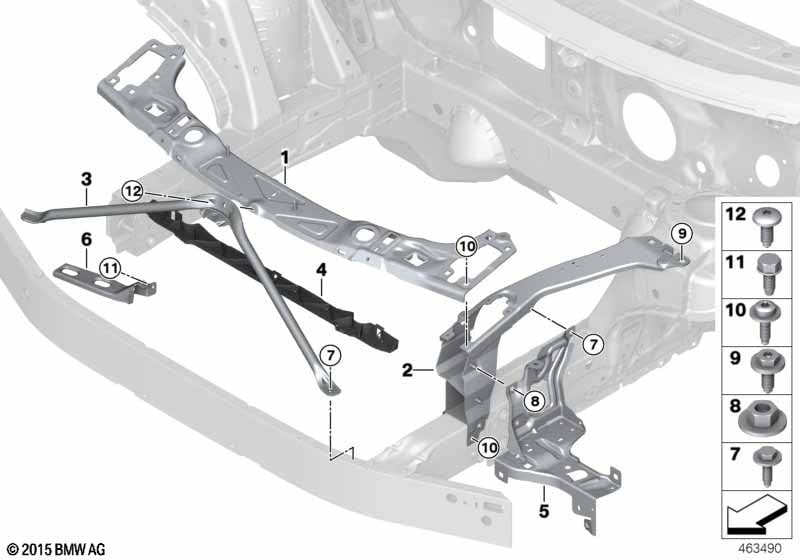

This Front panel technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crosslink, front | 1 | 51647434544 | Shop at ECS Tuning | ||||||
| 02 | Support left | 1 | 51647426633 | Shop at ECS Tuning | ||||||
| 02 | Support right | 1 | 51647426634 | Shop at ECS Tuning | ||||||
| 03 | V-brace for front panel | 1 | 51647351533 | Shop at ECS Tuning | ||||||
| 04 | Seal, radiator, upper | 1 | 51647347596 | Shop at ECS Tuning | ||||||
| 05 | Mount for headlight, left | 1 | 51647351535 | Shop at ECS Tuning | ||||||
| 05 | Mount for headlight, right | 1 | 51647351536 | Shop at ECS Tuning | ||||||
| 06 | Mount for washer fluid reservoir | 1 | 51647318491 | Shop at ECS Tuning | ||||||
| 07 | Countersunk screw | M6X20-PCU2-10.9 | 2 | 11/2015 | 07119908698 | Shop at ECS Tuning | ||||
| 08 | Hex nut | BM6-8-ZNNIV SI | 4 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X22 | 4 | 07147152728 | $0.75 | Shop at ECS Tuning | ||||
| 10 | Torx-bolt with washer | ISA M6X20 | 8 | 07119907285 | Shop at ECS Tuning | |||||
| 11 | Screw | M6X14 | 3 | 07146973023 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Combi oval-head machine screw | ISA M8X20 | 1 | 07147234925 | Shop at ECS Tuning |
