Door window lifting mechanism front for BMW 3 Series E46 330d (2004)

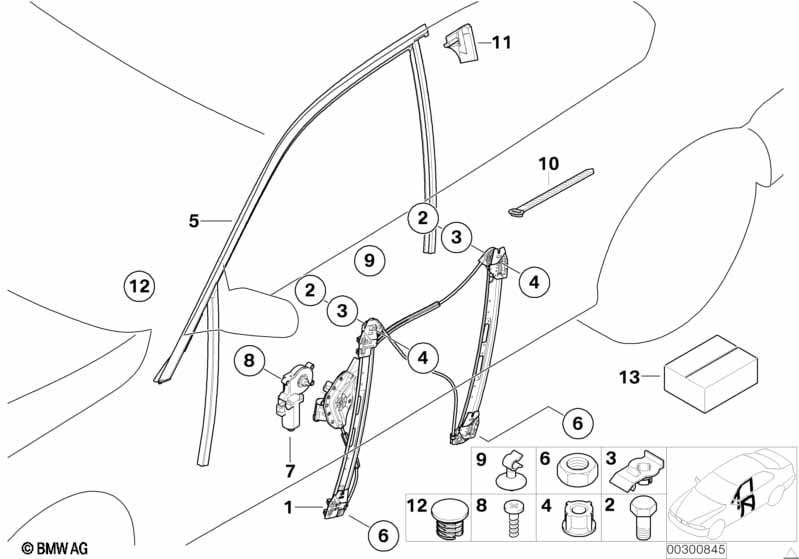

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.window lifter front left | 1 | 51337020659 | $127.55 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sound insulating door front left | 1 | 51487114713 | $35.43 | Shop at ECS Tuning | |||||
| 01 | Electr.window lifter front right | 1 | 51337020660 | $127.55 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sound insulating door front right | 1 | 51487114714 | $35.43 | Shop at ECS Tuning | |||||
| For vehicles with Climate comfort laminated glass |
S356A=Yes |
|||||||||
| 01 | Electr.window lifter front left | 1 | 09/2002 | 51337077499 | ENDED | Shop at ECS Tuning | ||||
| 01 | Electr.window lifter front right | 1 | 09/2002 | 51337077500 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X12 | 4 | 07147154229 | $0.19 | Shop at ECS Tuning | ||||
| 03 | Clip | 4 | 51338218383 | $0.55 | Shop at ECS Tuning | |||||
| 04 | Bush | 4 | 51338242760 | $0.68 | Shop at ECS Tuning | |||||
| 05 | Window guide, left front door | 1 | 51338266123 | $94.02 | Shop at ECS Tuning | |||||
| 05 | Window guide, right front door | 1 | 51338266124 | $94.02 | Shop at ECS Tuning | |||||
| For vehicles with Climate comfort laminated glass |
S356A=Yes |
|||||||||
| 05 | Window guide, left front door | 1 | 09/2002 | 51337110413 | Shop at ECS Tuning | |||||
| 05 | Window guide, right front door | 1 | 09/2002 | 51337110414 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M6 | 5 | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 07 | Drive for window lifter | 2-POLIG | 1 | 67628362063 | $147.05 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 07 | Drive for window lifter | 2-POLIG | 1 | 67628362064 | $147.05 | Shop at ECS Tuning | ||||
| 08 | Countersunk screw | 3 | 51338254577 | $0.52 | Shop at ECS Tuning | |||||
| 09 | Cable holder | 1 | 07147075057 | $1.28 | Shop at ECS Tuning | |||||
| 10 | Cable tie | 2 | 51337068960 | $1.23 | Shop at ECS Tuning | |||||
| 11 | Sealing front | 1 | 51338245859 | $2.48 | Shop at ECS Tuning | |||||
| 11 | SEALING FRONT right | 1 | 51338245860 | $2.48 | Shop at ECS Tuning | |||||
| 12 | Clip | 1 | 51218213615 | $0.35 | Shop at ECS Tuning | |||||
| 13 | Set, mounted parts, power window, front | VALUE PARTS | 2 | 51102311935 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Door window lifting mechanism front?
- This technical diagram illustrates the Door window lifting mechanism front within the Vehicle trim group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Electr.window lifter front left (Part #51337020659).
- Which models use the hardware listed in this Door window lifting mechanism front?
- The hardware and components featured in the Door window lifting mechanism front are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the Electr.window lifter front left (51337020659) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism front assembly?
- Each item in the Door window lifting mechanism front corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Electr.window lifter front left by locating its position on the schematic, which then links to the official BMW part number 51337020659 for the Vehicle trim section.
