Carrier, front for BMW 3 Series E46 328i (2000)
This Carrier, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier | 4 KM/H | 1 | 51118195287 | $209.47 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | Carrier | 8 KM/H = 5 MPH | 1 | 51118195300 | $256.48 | Shop at ECS Tuning | ||||
| 02 | Shock absorber front left | 4 KM/H | 1 | 51118195297 | $99.88 | Shop at ECS Tuning | ||||
| 02 | Shock absorber front right | 4 KM/H | 1 | 51118195298 | $99.88 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 02 | Shock absorber front left | 8 KM/H = 5 MPH | 1 | 51118195301 | $99.88 | +core | Shop at ECS Tuning | |||

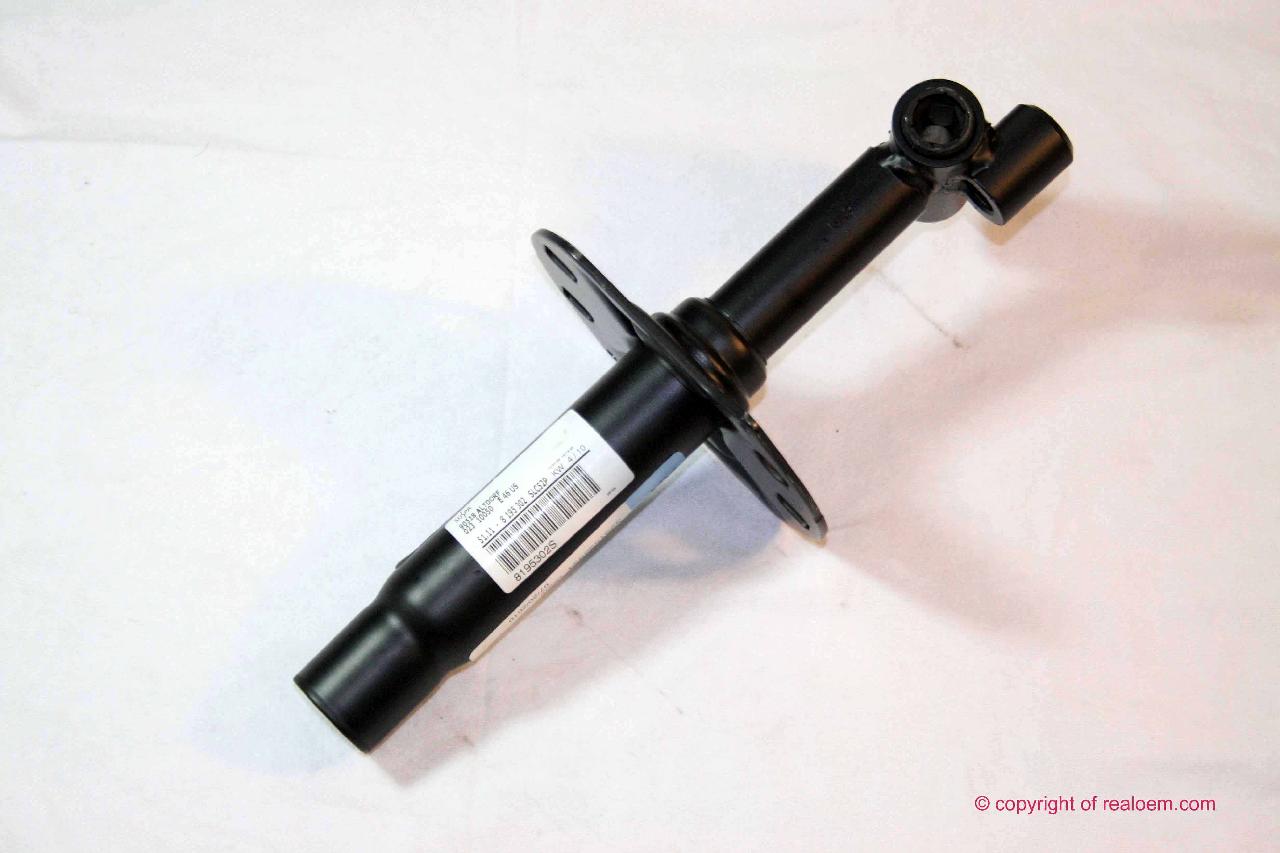

| 02 | Shock absorber front right | 8 KM/H = 5 MPH | 1 | 51118195302 | $99.88 | +core | Shop at ECS Tuning | |||

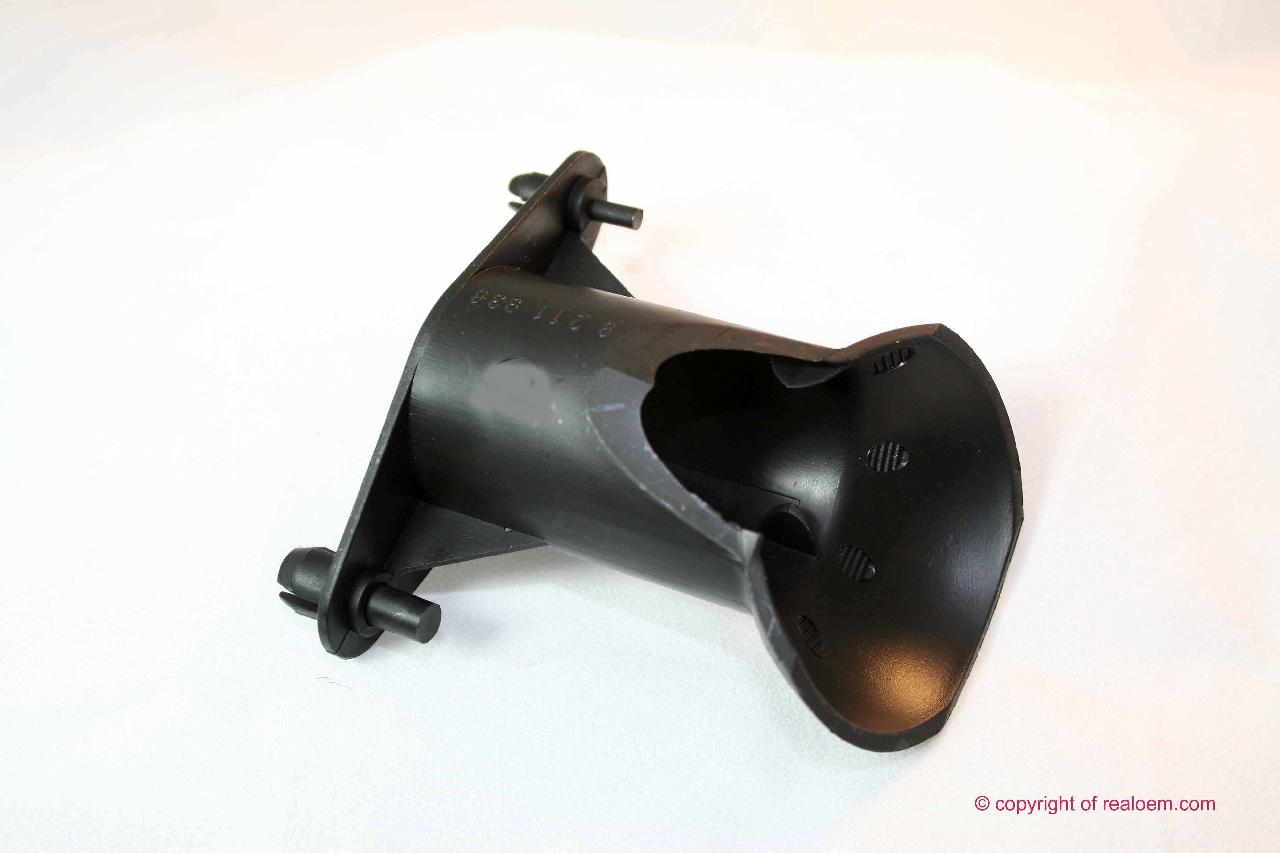

| 03 | Mounting sleeve | 2 | 51118211938 | $2.03 | Shop at ECS Tuning | |||||
| 04 | ASA-Bolt | 2 | 51117007219 | $3.58 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 05 | Fillister-head screw | 2 | 51118229318 | $1.95 | Shop at ECS Tuning | |||||

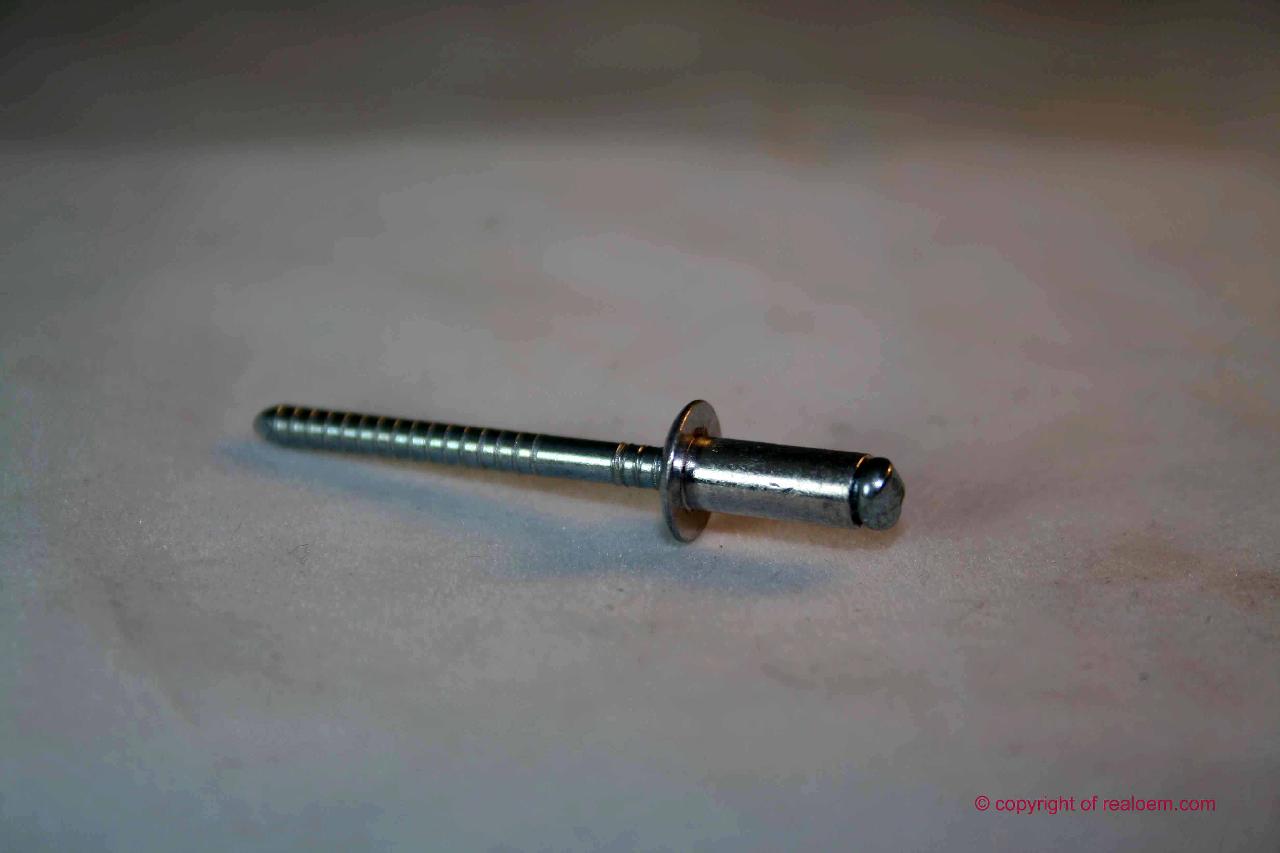

| 06 | Rivet | 4,8-4A | 4 | 07129948781 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Spacer plate | 1.0MM | X | 51718245775 | $3.27 | Shop at ECS Tuning | ||||
| 09 | Cap, shock absorber | 2 | 51118162553 | $2.54 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
