Trim cover, rear I for BMW 3 Series E46 320i (1999)
This Trim cover, rear I technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, primed, rear | 1 | 10/2001 | 51128195310 | $407.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 10/2001 | 51122293990 | +core | Shop at ECS Tuning | |||
| 01 | Bumper trim panel, painted, rear | CODE - UNI/MET. | 1 | 10/2001 | 51129071070 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 10/2001 | 51122293990 | +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 02 | Protective rubber strip, lft rear bumper | 1 | 10/2001 | 51128195315 | $26.03 | Shop at ECS Tuning | ||||
| 03 | Protective rubber strip,rght rear bumper | 1 | 10/2001 | 51128195316 | $26.03 | Shop at ECS Tuning | ||||
| 04 | Protect.rubber strip,centre rear bumper | 1 | 10/2001 | 51128195317 | $27.80 | Shop at ECS Tuning | ||||
| 05 | Trailer hitch flap, prime-coated | 1 | 10/2001 | 51128238819 | $41.39 | Shop at ECS Tuning | ||||
| 05 | Trailer hitch flap, painted | CODE - UNI/MET. | 1 | 10/2001 | 51129071072 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 06 | Frame | 1 | 10/2001 | 51128218165 | $12.68 | Shop at ECS Tuning | ||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 07 | Clamp | 2 | 10/2001 | 51121946136 | $0.79 | Shop at ECS Tuning | ||||

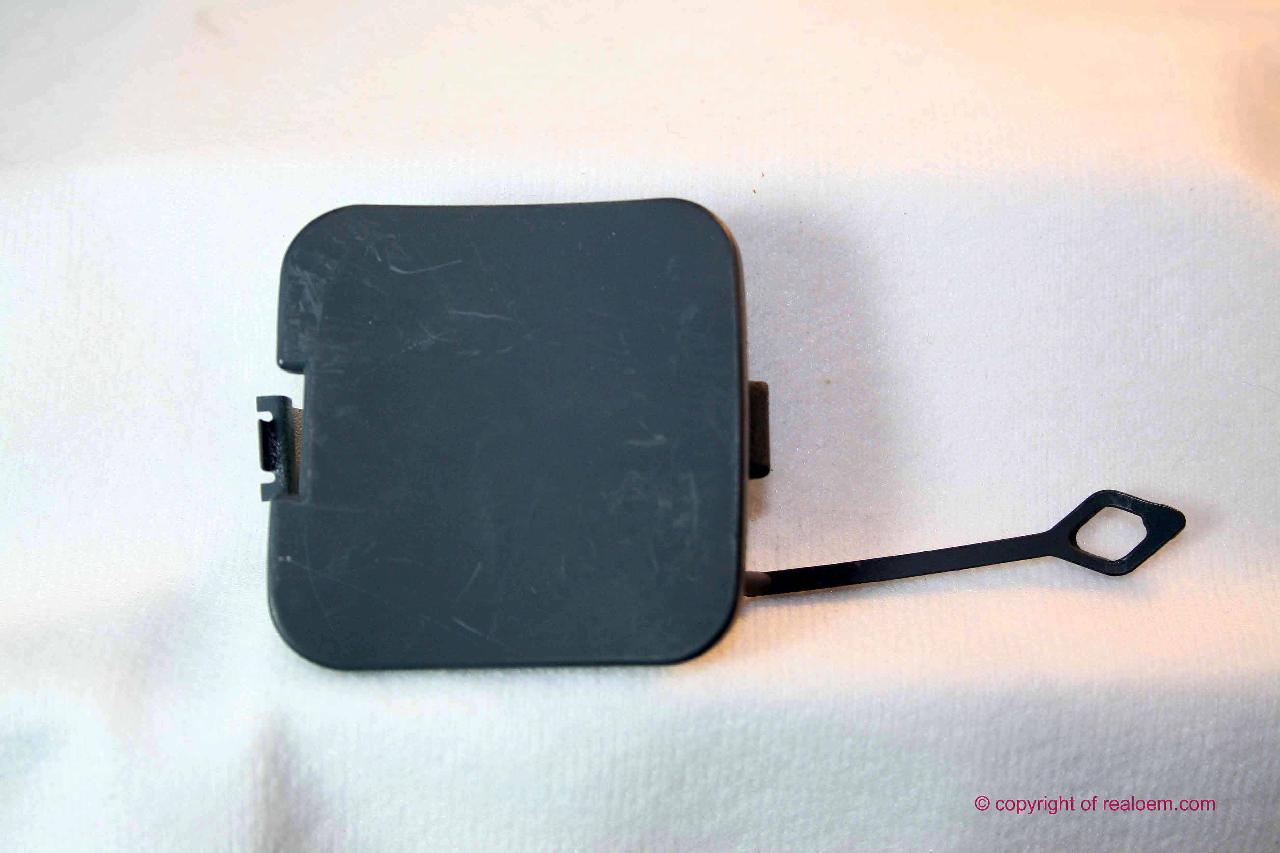

| 08 | Flap, towing eye, primed | 1 | 10/2001 | 51128215120 | $10.36 | Shop at ECS Tuning | ||||
| 08 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 10/2001 | 51129071073 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 09 | Cover | 1 | 10/2001 | 51128208926 | $31.03 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control |
=Yes |
|||||||||
| 09 | Cover | PDC | 1 | 10/2001 | 51128195333 | $34.05 | Shop at ECS Tuning | |||
| 10 | Expanding rivet | X | 10/2001 | 51118174185 | $0.30 | Shop at ECS Tuning | ||||
| 11 | Hex nut with plate | M8 | 6 | 10/2001 | 51117070183 | $0.77 | Shop at ECS Tuning | |||
| 12 | Support fender left | 1 | 10/2001 | 51128195321 | $3.45 | Shop at ECS Tuning | ||||
| 12 | Support fender right | 1 | 10/2001 | 51128195322 | $3.45 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M6 | 4 | 10/2001 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 14 | Body nut | ST4,8-9-ZNS3 | 2 | 10/2001 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 15 | Hex head screw | ST4,8X16-ZNS3 | 2 | 10/2001 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 17 | Breather covering rear | SCHWARZ | 1 | 10/2001 | 64226962293 | $7.30 | Shop at ECS Tuning | |||
| 17 | Breather covering rear | SCHWARZ | 1 | 10/2001 | 64228377280 | $7.08 | ENDED | Shop at ECS Tuning | ||
| 18 | Left bracket | 1 | 01/1999 | 10/2001 | 51127000347 | $1.02 | Shop at ECS Tuning | |||
| 18 | Right bracket | 1 | 01/1999 | 10/2001 | 51127000348 | $1.02 | Shop at ECS Tuning | |||
| 19 | Self-locking hex nut | M6 | 2 | 01/1999 | 10/2001 | 64509123157 | $0.70 | Shop at ECS Tuning | ||
| 20 | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122293990 | +core | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
