Trim panel dashboard for BMW 3 Series E46 M3 (2002)

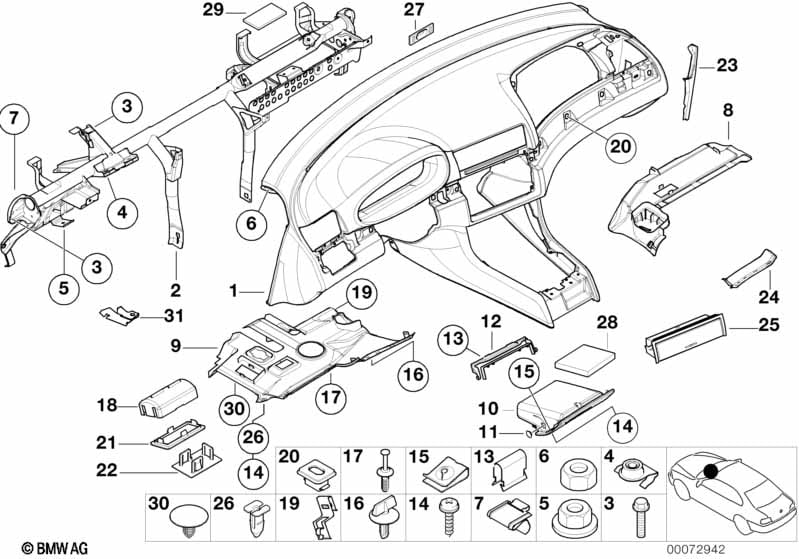

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather, Nappa/laguna-seca |
L7LS=Yes |
|||||||||
| 01 | Trim panel dashboard | 1 | 03/2002 | 51457906016 | $1930.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather nappa extended/black |
L7SW=Yes |
|||||||||
| 01 | Trim panel dashboard | 1 | 03/2002 | 51457906015 | $2426.21 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather nappa extended/imola-red |
L7IM=Yes |
|||||||||
| 01 | Trim panel dashboard | 1 | 03/2002 | 51457906017 | $2426.21 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather nappa extended/grey |
L7TT=Yes |
|||||||||
| 01 | Trim panel dashboard | 1 | 03/2002 | 51457906020 | $1930.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather nappa extended/cinnamon |
L7ZM=Yes |
|||||||||
| 01 | Trim panel dashboard | 1 | 03/2002 | 51457906019 | $2426.21 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather nappa extended/kiwi |
L7OV=Yes |
|||||||||
| 01 | Trim panel dashboard | 1 | 03/2002 | 51457906018 | $2426.21 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 or Vinyl light beige 2 or Exclusive leather "futura"/hellbeige 2 or Leather Montana/basic equip/hell-beige 2 or Leather Mosaico expanded/light beige |
E9HC=Yes K4HC=Yes LMHC=Yes N6HC=Yes Q9HC=Yes |
|||||||||
| 01 | Trim panel dashboard | 1 | 51457143217 | $2426.21 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Fabric Jacquard/gray or Leather, Walknappa/gray or Leather Montana/basic equip/grau |
E3DL=Yes E3TT=Yes E5LA=Yes E6TF=Yes H9TT=Yes N5TT=Yes N6TT=Yes |
|||||||||
| 01 | Trim panel dashboard | 1 | 51457143219 | $2426.21 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with anthracite or poetic-blue or blue or Light beige 2 or orange or pistazie or peach or red or Black or grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/traum-rot" or Leather M-texture/Alcantara/anthrazit or Cloth/leather "Finolino"/anthrazit or Cloth/leather "Finolino"/sonora or Cloth "Laser"/anthracite or Cloth "Impuls"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Fabric Tex 2000/anthracite or Fabric Tex 2000/brombeer or Fabric Tex 2000/techno-grau or Imitation leather/black or Exclusive leather "futura"/granatrot or Exclusive leather "futura"/schwarz or Exclusive leather "futura"/hellgrau or Leather Walknappa/imola-red or Leather, Walknappa/laguna seca blau or Leather Walknappa kiwi or Leather Walknappa/black or Leather, Walknappa/zimt or Leather Montana/basic equip/mahagoni or Leather Montana/basic equip/schwarz or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black or Leather, "Chameleon"/kiesel-grau or Leather, "Chameleon"/black-gray or Leather High/brombeer or Leather High/light gelb or Leather High/black or Fabric/leather "Scritto"/mystic-blau or Fabric/leather "Scritto"/black-grau |
AT=Yes AU=Yes BL=Yes HC=Yes OG=Yes PI=Yes PP=Yes RE=Yes SW=Yes TT=Yes E4AT=Yes E4TL=Yes F2AT=Yes GBAT=Yes GBB9=Yes G7AT=Yes G8AT=Yes H7BC=Yes H9AT=Yes J1AT=Yes J1BB=Yes J1TF=Yes K4SW=Yes LMC1=Yes LMSW=Yes LMTH=Yes N5IM=Yes N5LS=Yes N5OV=Yes N5SW=Yes N5ZM=Yes N6NG=Yes N6SW=Yes Q9LT=Yes Q9SW=Yes V3KA=Yes V3TM=Yes V5BB=Yes V5LT=Yes V5SW=Yes V8MF=Yes V8TM=Yes |
|||||||||
| 01 | Trim panel dashboard | 1 | 51457143215 | $2426.21 | +core | Shop at ECS Tuning | ||||
| 02 | Supporting tube | 1 | 51457115933 | $266.07 | +core | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X50-U1-8.8 | 1 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X16 | 3 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X30 | 2 | 07143428484 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Nut holder | 2 | 51458230035 | $1.25 | Shop at ECS Tuning | |||||
| 05 | Hex nut | BM6-8-ZNFE SW | 4 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M6 | 5 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 06 | Combination nut | 1 | 07147305178 | Shop at ECS Tuning | ||||||
| 06 | Self-locking hex nut | M6 | 1 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 07 | Clamp | 4 | 51458226638 | $1.11 | Shop at ECS Tuning | |||||
| 08 | Trim panel right | 1 | 51458224814 | $24.56 | Shop at ECS Tuning | |||||
| 09 | Trim panel foot controls | 1 | 51457002608 | $36.06 | Shop at ECS Tuning | |||||
| 10 | Hinged compartment | L7SW SCHWARZ | 1 | 03/2002 | 51457906043 | $376.84 | ENDED | Shop at ECS Tuning | ||
| 10 | Hinged compartment | L7LS LAGUNASECA | 1 | 03/2002 | 51457906044 | $345.96 | ENDED | Shop at ECS Tuning | ||
| 10 | Hinged compartment | L7IM IMOLAROT | 1 | 03/2002 | 51457906045 | $345.96 | ENDED | Shop at ECS Tuning | ||
| 10 | Hinged compartment | L7OV KIWI | 1 | 03/2002 | 51457906046 | $345.96 | ENDED | Shop at ECS Tuning | ||
| 10 | Hinged compartment | L7ZM ZIMT | 1 | 03/2002 | 51457906047 | $345.96 | ENDED, +core | Shop at ECS Tuning | ||
| 10 | Hinged compartment | L7TT GRAU | 1 | 03/2002 | 51457906048 | $345.96 | ENDED | Shop at ECS Tuning | ||
| 12 | Steering column cover | 1 | 51458209010 | $17.25 | Shop at ECS Tuning | |||||
| 13 | Clamp | 2 | 16111117201 | $0.30 | Shop at ECS Tuning | |||||
| 14 | Sheet metal screw | ST4,2X19-U2-C-H | 7 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Body nut | ST4,2-3-ZNS3 | 2 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 15 | C-clip nut | 8 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 15 | Body nut | ST4.2 ZNS | 2 | 51457032762 | $0.39 | Shop at ECS Tuning | ||||
| 16 | Lock | 1 | 51471923983 | $0.82 | Shop at ECS Tuning | |||||
| 17 | Expanding rivet | 1 | 51111964186 | $0.37 | Shop at ECS Tuning | |||||
| 18 | Floor lamp cover | 1 | 51458166683 | $4.60 | Shop at ECS Tuning | |||||
| 20 | Insert | ROT | 7 | 51458266814 | $0.85 | Shop at ECS Tuning | ||||
| 20 | Repair kit | 7 | 51458268560 | $5.59 | ENDED | Shop at ECS Tuning | ||||
| 21 | Cover | SANDGRAU | 1 | 51168186088 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 21 | Cover | ANTHRAZIT | 1 | 51168186089 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 22 | Blind plate | 1 | 51458237372 | $1.65 | Shop at ECS Tuning | |||||
| 23 | Covering left | 1 | 51718237235 | $2.25 | Shop at ECS Tuning | |||||
| 23 | Covering right | 1 | 51718237236 | $2.25 | Shop at ECS Tuning | |||||
| 24 | Covering Lower | 1 | 51458237201 | $8.03 | Shop at ECS Tuning | |||||
| For vehicles with On-board monitor with TV and Navigation system Professional |
S602A=No S609A=No |
|||||||||
| 25 | Tray for glasses | 1 | 51168260312 | $58.50 | Shop at ECS Tuning | |||||
| 26 | Expanding nut | 2 | 51458257986 | $0.40 | Shop at ECS Tuning | |||||
| 27 | Center plate | 1 | 51458233805 | $1.65 | ENDED | Shop at ECS Tuning | ||||
| 29 | Set felt strip self-adhesive | 1 | 08/2006 | 51452353024 | Shop at ECS Tuning | |||||
| 29 | Set of felt strips | SET | 1 | 08/2006 | 52207276398 | ENDED | Shop at ECS Tuning | |||
| 30 | Clip | D=30MM | 1 | 51488245867 | $0.35 | Shop at ECS Tuning | ||||
| 31 | Fixing clamp left | 1 | 51457029435 | $9.26 | Shop at ECS Tuning | |||||
| 31 | Fixing clamp right | 1 | 51457029436 | $9.26 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
