Sound insulating front for BMW MINI Clubman F54 Cooper (2019)

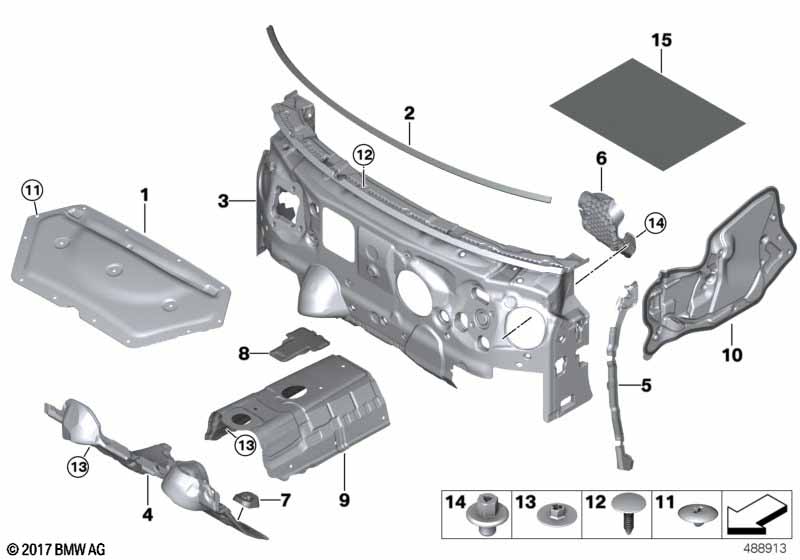

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating engine hood | 1 | 51487356767 | Shop at ECS Tuning | ||||||
| 02 | Sound insulation f apron | L=1430MM | 1 | 51487325890 | Shop at ECS Tuning | |||||
| 03 | Sound insulat., splash wall, upper part | RHD | 1 | 51487353860 | NoS | Shop at ECS Tuning | ||||
| 04 | Sound insulat., bottom sect. of bulkhead | 1 | 51487298868 | Shop at ECS Tuning | ||||||
| 05 | Seal, side frame, left | 1 | 51487356765 | Shop at ECS Tuning | ||||||
| 05 | Seal, side frame, right | 1 | 51487356766 | NoS | Shop at ECS Tuning | |||||
| 07 | Sound insulat., accelerator pedal mod. | 1 | 51487298928 | Shop at ECS Tuning | ||||||
| 08 | Sound insulation for shift mechanism | 1 | 51487384751 | Shop at ECS Tuning | ||||||
| 09 | Sound insulation, tunnel, exterior | 1 | 07/2020 | 51487298867 | ENDED | Shop at ECS Tuning | ||||
| 10 | Sound insulation, door, front left | 1 | 51487442377 | Shop at ECS Tuning | ||||||
| 10 | Sound insulation, door, front right | 1 | 51487442378 | Shop at ECS Tuning | ||||||
| 11 | Clip | 15 | 51489119216 | $0.37 | Shop at ECS Tuning | |||||
| 12 | Plug-in retainer | 6 | 07147283890 | Shop at ECS Tuning | ||||||
| 13 | Clip nut | 5X9 D=30 SW10 | 12 | 07147261260 | Shop at ECS Tuning | |||||
| 15 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
