Mounting parts, instr. panel for BMW 3 Series E46 M3 (2002)

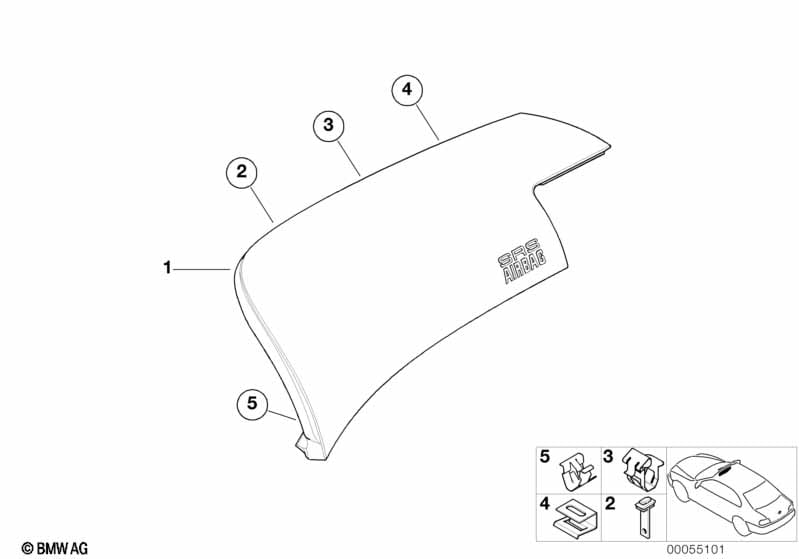

This Mounting parts, instr. panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with anthracite or poetic-blue or blue or Light beige 2 or orange or pistazie or peach or red or Black or grey |
AT=Yes AU=Yes BL=Yes HC=Yes OG=Yes PI=Yes PP=Yes RE=Yes SW=Yes TT=Yes |
|||||||||
| 01 | Air bag cover | SCHWARZ | 1 | 51457143229 | $311.76 | +core | Shop at ECS Tuning | |||
| 02 | Fastening elements | 1 | 51458146760 | $0.52 | Shop at ECS Tuning | |||||

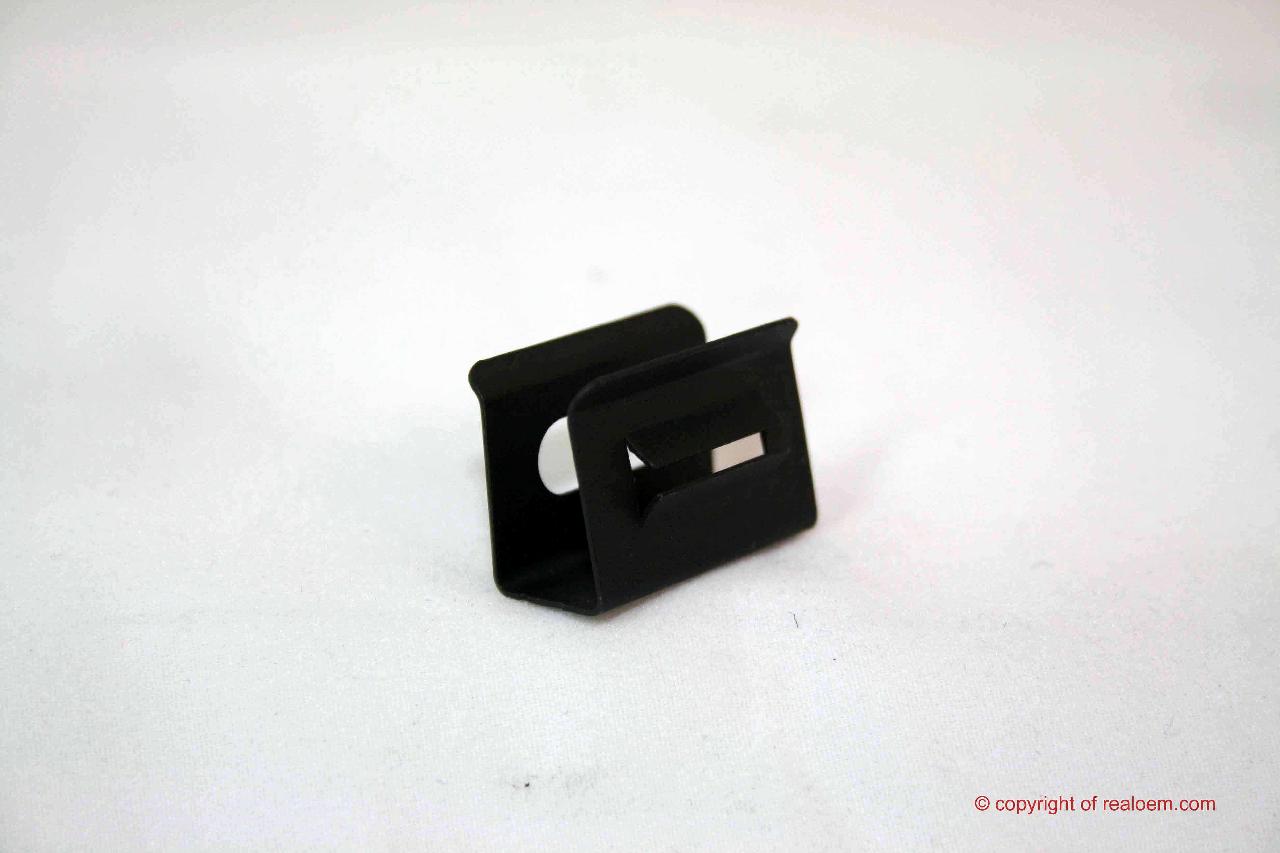

| 04 | Clamp | 1 | 51458146761 | $1.10 | Shop at ECS Tuning | |||||
| 05 | Clamp | 2 | 51457000979 | $0.55 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Mounting parts, instr. panel?
- This technical diagram illustrates the Mounting parts, instr. panel within the Vehicle trim group for the 3 Series E46 M3 produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Air bag cover (Part #51457143229).
- Which models use the hardware listed in this Mounting parts, instr. panel?
- The hardware and components featured in the Mounting parts, instr. panel are specific to the 3 Series E46 M3 produced during 2002. These technical specifications ensure that parts like the Air bag cover (51457143229) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting parts, instr. panel assembly?
- Each item in the Mounting parts, instr. panel corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Air bag cover by locating its position on the schematic, which then links to the official BMW part number 51457143229 for the Vehicle trim section.
