Heat insulation for BMW MINI Clubman F54 One

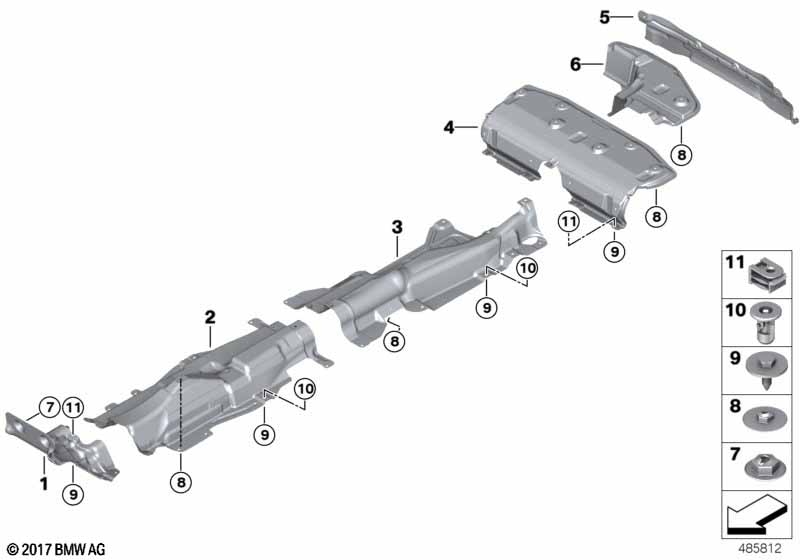

This Heat insulation technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat insulation, front wall | 1 | 51487290782 | ENDED | Shop at ECS Tuning | |||||
| 02 | Tunnel heat insulator | 2WD | 1 | 51487315970 | Shop at ECS Tuning | |||||
| 04 | Heat insulator rear silencer | 1 | 51487392646 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Body nut | D=18MM, ZNS-3 | 1 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable and Comfort access |
S235A=No S322A=No |
|||||||||
| 05 | Heat insulation, bumper, rear | 1 | 51487356340 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Comfort access |
S235A=Yes S322A=Yes |
|||||||||
| 05 | Heat insulation, bumper, rear | 1 | 51487375658 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Comfort access |
S235A=Yes S322A=No |
|||||||||
| 05 | Heat insulation, bumper, rear | 1 | 51487375658 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Comfort access |
S235A=No S322A=Yes |
|||||||||
| 05 | Heat insulation, bumper, rear | 1 | 51487375658 | Shop at ECS Tuning | ||||||
| 07 | Body nut | D=18MM, ZNS-3 | 3 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Body nut | D=30MM, ZNS3 | 17 | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | TS5X17 SW8 D=22 | 25 | 07149126886 | Shop at ECS Tuning | |||||
| 10 | Expanding nut | L=18.4, DMAX=18 | 6 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with CO2 package |
S1CBA=No |
|||||||||
| 11 | C-clip for plastic nut | TS5 | 7 | 07147311312 | Shop at ECS Tuning | |||||
