Center console cubbies for BMW 3 Series E46 M3 (2002)

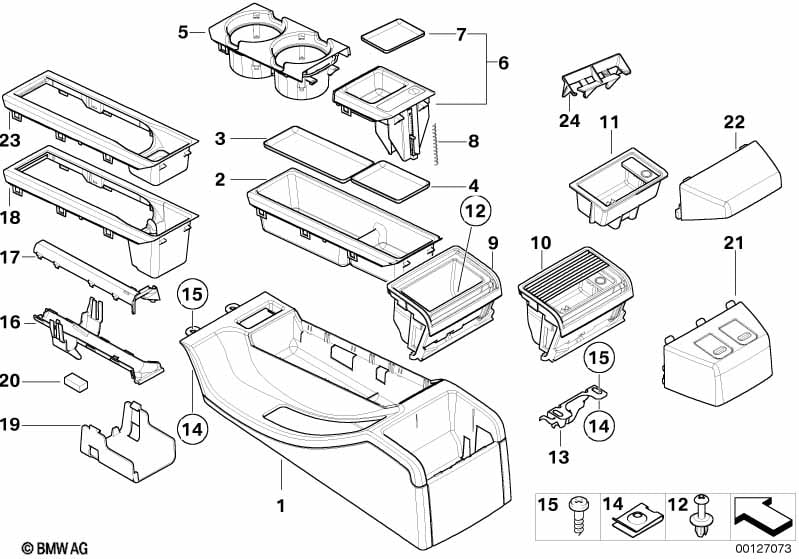

This Center console cubbies technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | CONSOLE, short | SCHWARZ | 1 | 51168234154 | $65.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | CONSOLE, short | HELLBEIGE | 1 | 51168234155 | $65.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Template | E46 CABRIO | 1 | 01290026907 | $0.99 | Shop at ECS Tuning | ||||
| -- | Template | E46/2/3/4/5 | 1 | 01290026908 | $0.99 | Shop at ECS Tuning | ||||
| 01 | CONSOLE, short | GRAU | 1 | 51168248507 | $65.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Template | E46 CABRIO | 1 | 01290026907 | $0.99 | Shop at ECS Tuning | ||||
| -- | Template | E46/2/3/4/5 | 1 | 01290026908 | $0.99 | Shop at ECS Tuning | ||||
| 02 | Console insert | SCHWARZ | 1 | 51168217927 | $60.12 | Shop at ECS Tuning | ||||
| 02 | Console insert | HELLBEIGE | 1 | 51168217929 | $60.12 | Shop at ECS Tuning | ||||
| 02 | Console insert | GRAU | 1 | 51168248498 | $60.12 | Shop at ECS Tuning | ||||
| 03 | Front tray | SCHWARZ | 1 | 51168242843 | $6.58 | Shop at ECS Tuning | ||||
| 03 | Front tray | HELLBEIGE | 1 | 51168242844 | $6.95 | Shop at ECS Tuning | ||||
| 04 | Rear tray | SCHWARZ | 1 | 51168242846 | $5.87 | Shop at ECS Tuning | ||||
| 04 | Rear tray | HELLBEIGE | 1 | 51168242847 | $5.87 | Shop at ECS Tuning | ||||
| 05 | Cup holder | SCHWARZ | 1 | 51168217953 | $33.50 | Shop at ECS Tuning | ||||
| 05 | Cup holder | HELLBEIGE | 1 | 51168217955 | $33.50 | Shop at ECS Tuning | ||||
| 05 | Cup holder | GRAU | 1 | 51168248504 | $33.50 | +core | Shop at ECS Tuning | |||
| 06 | Oddments tray with coinbox | SCHWARZ | 1 | 51168217957 | $29.50 | +core | Shop at ECS Tuning | |||
| 06 | Oddments tray with coinbox | HELLBEIGE | 1 | 51168217959 | $32.00 | Shop at ECS Tuning | ||||
| 06 | Oddments tray with coinbox | GRAU | 1 | 51168248505 | $32.00 | Shop at ECS Tuning | ||||
| 07 | Cup | SCHWARZ | 1 | 51168242859 | $13.55 | Shop at ECS Tuning | ||||
| 07 | Cup | HELLBEIGE | 1 | 51168242860 | $13.82 | Shop at ECS Tuning | ||||
| 08 | Tension spring | 1 | 51168242861 | $1.10 | Shop at ECS Tuning | |||||
| 09 | Storing partition rear | GRAU/CHROM | 1 | 51168258277 | $32.85 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Storing partition rear | HELLBEIGE/CHROM | 1 | 51168258278 | $32.85 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Storing partition rear | SCHWARZ/CHROM | 1 | 51168258276 | $32.85 | ENDED | Shop at ECS Tuning | |||
| No longer available. Alternatively, the ashtray can be offered |
||||||||||
| 10 | Ashtray rear | SCHWARZ/CHROM | 1 | 51168258280 | $44.77 | Shop at ECS Tuning | ||||
| 10 | Ashtray rear | GRAU/CHROM | 1 | 51168258281 | $44.77 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Ashtray rear | HELLBEIGE/CHROM | 1 | 51168258282 | $44.77 | Shop at ECS Tuning | ||||
| 10 | Ashtray wiht roller | SCHWARZ/CHROM | 1 | 09/1999 | 51168268340 | $44.77 | ENDED | Shop at ECS Tuning | ||
| 10 | Ashtray wiht roller | GRAU/CHROM | 1 | 09/1999 | 51168268341 | $44.77 | +core | Shop at ECS Tuning | ||
| 10 | Ashtray wiht roller | BEIGE/CHROM | 1 | 09/1999 | 51168268342 | $44.77 | Shop at ECS Tuning | |||
| 11 | Insert | CHROM | 1 | 09/1999 | 51168258283 | $12.15 | Shop at ECS Tuning | |||
| 12 | Expanding rivet | 2 | 51168197908 | $0.37 | Shop at ECS Tuning | |||||
| 13 | Holder | 1 | 51168235570 | $1.27 | Shop at ECS Tuning | |||||
| 14 | Body nut | ST4,2-1-ZNS3 | 4 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Sheet metal screw | ST4,2X19 | 4 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Bottom part of cable guide | SCHWARZ | 1 | 51167000476 | $11.40 | Shop at ECS Tuning | ||||
| 17 | Upper part of cable guide | SCHWARZ | 1 | 51167000469 | $7.92 | Shop at ECS Tuning | ||||
| 20 | Sealing strip | 5 | 51411970578 | $0.22 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 21 | Module | SCHWARZ | 1 | 09/1999 | 51168269444 | $93.57 | Shop at ECS Tuning | |||
| 21 | Module | GRAU | 1 | 09/1999 | 51168269445 | $93.57 | Shop at ECS Tuning | |||
| 21 | Module | HELLBEIGE 2 | 1 | 09/1999 | 51168269446 | $93.57 | Shop at ECS Tuning | |||
| For vehicles with Car telephone Professional |
S638A=Yes |
|||||||||
| 23 | Insert for telephone console | SCHWARZ | 1 | 09/2002 | 51167110646 | $33.22 | Shop at ECS Tuning | |||
| 23 | Insert for telephone console | GRAU | 1 | 09/2002 | 51167110647 | $33.22 | Shop at ECS Tuning | |||
| 23 | Insert for telephone console | HELLBEIGE | 1 | 09/2002 | 51167110648 | $33.22 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
