Center console/armrest,support,trim pan. for BMW 3 Series E46 318i (2004)

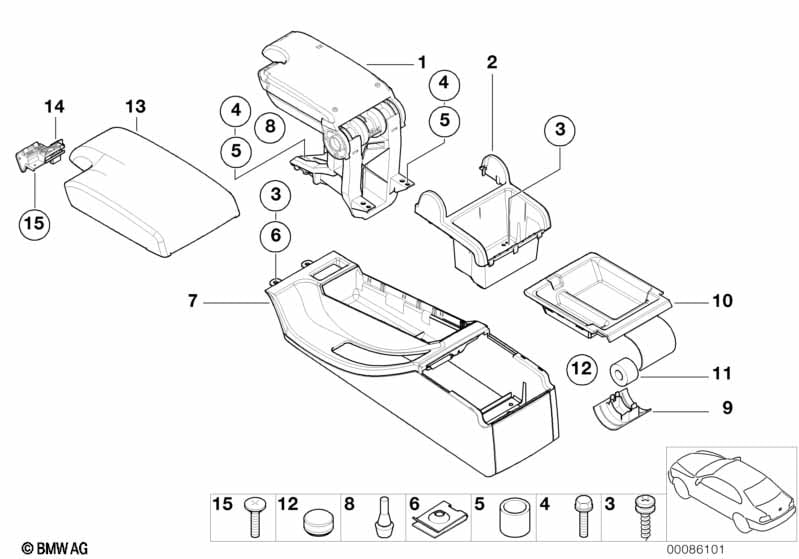

This Center console/armrest,support,trim pan. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Armrest front |
S473A=Yes |
|||||||||
| 01 | Armrest vinyl | GRAU | 1 | 51168248546 | $175.84 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Leather Montana/basic equip/hell-beige 2 |
S473A=Yes N6HC=Yes |
|||||||||
| 01 | Armrest leather | HELLBEIGE | 1 | 51168198620 | $265.49 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Leather Mosaico expanded/light beige |
S473A=Yes Q9HC=Yes |
|||||||||
| 01 | Armrest leather | HELLBEIGE | 1 | 51168238224 | $246.39 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Armrest front and Leather Montana/basic equip/grau |
S473A=Yes N6TT=Yes |
|||||||||
| 01 | Armrest leather | GRAU | 1 | 51168248531 | $265.49 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Cloth/leather "Maglia"/hell-beige 2 or Vinyl light beige 2 |
S473A=Yes E9HC=Yes K4HC=Yes |
|||||||||
| 01 | Armrest vinyl | HELLBEIGE | 1 | 51168198621 | $175.84 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Leather M-texture/Alcantara/anthrazit or Leather Walknappa/black or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black or Leather High/brombeer or Leather High/light gelb or Leather High/black |
S473A=Yes F2AT=Yes N5SW=Yes Q9LT=Yes Q9SW=Yes V5BB=Yes V5LT=Yes V5SW=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 51168238223 | $246.39 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/traum-rot" or Cloth "Laser"/anthracite or Fabric Tex 2000/anthracite or Fabric Tex 2000/brombeer or Fabric Tex 2000/techno-grau or Imitation leather/black |
S473A=Yes E4AT=Yes E4TL=Yes G7AT=Yes J1AT=Yes J1BB=Yes J1TF=Yes K4SW=Yes |
|||||||||
| 01 | Armrest vinyl | SCHWARZ | 1 | 51168213632 | $175.84 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Cloth/leather "Finolino"/anthrazit or Fabric Jacquard/anthracite or Leather Montana/basic equip/poetic blue or Leather Montana/basic equip/mahagoni or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather, "Chameleon"/kiesel-grau or Leather, "Chameleon"/black-gray or Fabric/leather "Scritto"/mystic-blau or Fabric/leather "Scritto"/black-grau |
S473A=Yes GBAT=Yes H9AT=Yes N6AU=Yes N6NG=Yes N6SW=Yes N6TD=Yes V3KA=Yes V3TM=Yes V8MF=Yes V8TM=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 51168213628 | $265.49 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front |
S473A=Yes |
|||||||||
| 02 | Console upper | HELLBEIGE | 1 | 51168217932 | $24.32 | Shop at ECS Tuning | ||||
| 02 | Console upper | SCHWARZ | 1 | 51168218307 | $24.32 | Shop at ECS Tuning | ||||
| 02 | Console upper | GRAU | 1 | 51168248529 | $24.32 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | ST4,2X19 | 6 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X35-Z1 | 3 | 07119901686 | $0.54 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X30-Z1-10.9 | 3 | 07119904137 | $0.89 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,2-1-ZNS3 | 6 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front |
S473A=Yes |
|||||||||
| 07 | Console, center arm rest | HELLBEIGE | 1 | 51168217942 | $65.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Template | E46 CABRIO | 1 | 01290026899 | $1.68 | Shop at ECS Tuning | ||||
| -- | Template | E46/2/3/4/5 | 1 | 01290026908 | $0.99 | Shop at ECS Tuning | ||||
| 07 | Console, center arm rest | SCHWARZ | 1 | 51168218305 | $65.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Template | E46 CABRIO | 1 | 01290026899 | $1.68 | Shop at ECS Tuning | ||||
| -- | Template | E46/2/3/4/5 | 1 | 01290026908 | $0.99 | Shop at ECS Tuning | ||||
| 07 | Console, center arm rest | GRAU | 1 | 51168248496 | $65.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Template | E46 CABRIO | 1 | 01290026899 | $1.68 | Shop at ECS Tuning | ||||
| -- | Template | E46/2/3/4/5 | 1 | 01290026908 | $0.99 | Shop at ECS Tuning | ||||
| 08 | Bump stop | 2 | 51168258969 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| 09 | Center armrest cover | SCHWARZ | 1 | 51168231317 | $10.48 | Shop at ECS Tuning | ||||
| 09 | Center armrest cover | HELLBEIGE | 1 | 51168231319 | $10.48 | Shop at ECS Tuning | ||||
| 09 | Center armrest cover | GRAU | 1 | 51168248539 | $10.48 | Shop at ECS Tuning | ||||
| 10 | Cup | SCHWARZ | 1 | 51168228810 | $19.12 | Shop at ECS Tuning | ||||
| 10 | Cup | HELLBEIGE 2 | 1 | 51168228811 | $19.12 | Shop at ECS Tuning | ||||
| 10 | Cup | GRAU | 1 | 51168248541 | $19.12 | Shop at ECS Tuning | ||||
| 11 | Ring | 2 | 51168135597 | $1.02 | Shop at ECS Tuning | |||||
| 12 | Plug | 2 | 51168228760 | $0.30 | Shop at ECS Tuning | |||||
| For vehicles with Armrest front and Leather trim Walknappa |
S473A=Yes =Yes |
|||||||||
| 13 | Armrest upper leather | HELLBEIGE 2 | 1 | 51168238230 | $234.58 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Leather, Walknappa/gray |
S473A=Yes N5TT=Yes |
|||||||||
| 13 | Armrest upper leather | GRAU | 1 | 51167901351 | $234.58 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Cloth/leather "Maglia"/hell-beige 2 or Vinyl light beige 2 |
S473A=Yes E9HC=Yes K4HC=Yes |
|||||||||
| 13 | Upper armrest vinyl | HELLBEIGE 2 | 1 | 51168229233 | $134.58 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Cloth "International"/grey or Fabric Jacquard/gray |
S473A=Yes H2TT=Yes H9TT=Yes |
|||||||||
| 13 | Upper armrest vinyl | GRAU | 1 | 51168248547 | $134.58 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front or Lifestyle Edition and Fabric Jacquard/gray or Leather Montana/basic equip/grau |
S473A=Yes S722A=Yes H9TT=Yes N6TT=Yes |
|||||||||
| 13 | Armrest upper leather | GRAU | 1 | 51168248532 | $234.58 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Leather High/brombeer or Leather High/light gelb or Leather High/black |
S473A=Yes V5BB=Yes V5LT=Yes V5SW=Yes |
|||||||||
| 13 | Armrest upper leather | SCHWARZ | 1 | 51168238229 | $234.58 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Cloth/leather "Maglia"/hell-beige 2 or Vinyl light beige 2 or Leather Montana/basic equip/hell-beige 2 |
S473A=Yes E9HC=Yes K4HC=Yes N6HC=Yes |
|||||||||
| 13 | Armrest upper leather | HELLBEIGE 2 | 1 | 51168229236 | $234.58 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/traum-rot" or Cloth "Laser"/anthracite or Cloth "Laser"/blue or Cloth "Laser"/orange or Cloth "Laser"/red or Fabric/imit.leather"California"/anthrac. or Cloth/vinyl "California/orange" or Cloth/vinyl "California/lavanda" or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Fabric Tex 2000/anthracite or Fabric Tex 2000/brombeer or Fabric Tex 2000/techno-grau or Imitation leather/black |
S473A=Yes E4AT=Yes E4TL=Yes G7AT=Yes G7BL=Yes G7OG=Yes G7RE=Yes H4AT=Yes H4PP=Yes H4SE=Yes H7BC=Yes H9AT=Yes J1AT=Yes J1BB=Yes J1TF=Yes K4SW=Yes |
|||||||||
| 13 | Upper armrest vinyl | SCHWARZ | 1 | 51168229232 | $134.58 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/traum-rot" or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Fabric Tex 2000/anthracite or Fabric Tex 2000/brombeer or Fabric Tex 2000/techno-grau or Imitation leather/black or Leather Montana/basic equip/poetic blue or Leather Montana/basic equip/mahagoni or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather, "Chameleon"/kiesel-grau or Leather, "Chameleon"/black-gray or Fabric/leather "Scritto"/mystic-blau or Fabric/leather "Scritto"/black-grau or Leather M-texture/Alcantara/anthrazit |
S473A=Yes E4AT=Yes E4TL=Yes G7AT=Yes H7BC=Yes H9AT=Yes J1AT=Yes J1BB=Yes J1TF=Yes K4SW=Yes N6AU=Yes N6NG=Yes N6SW=Yes N6TD=Yes V3KA=Yes V3TM=Yes V8MF=Yes V8TM=Yes X1AT=Yes |
|||||||||
| 13 | Armrest upper leather | SCHWARZ | 1 | 51168229235 | $234.58 | Shop at ECS Tuning | ||||
| 14 | Lock | SCHWARZ | 1 | 51168228808 | $9.18 | Shop at ECS Tuning | ||||
| 14 | Lock | HELLBEIGE 2 | 1 | 51168228809 | $9.18 | Shop at ECS Tuning | ||||
| 14 | Lock | GRAU | 1 | 51168242858 | $9.18 | Shop at ECS Tuning | ||||
| 15 | Screw for thermoplastic plastics | P-TS3X10-ZN | 4 | 07129925827 | $0.11 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
