Door trim, rear for BMW 3 Series E46 328i (2000)

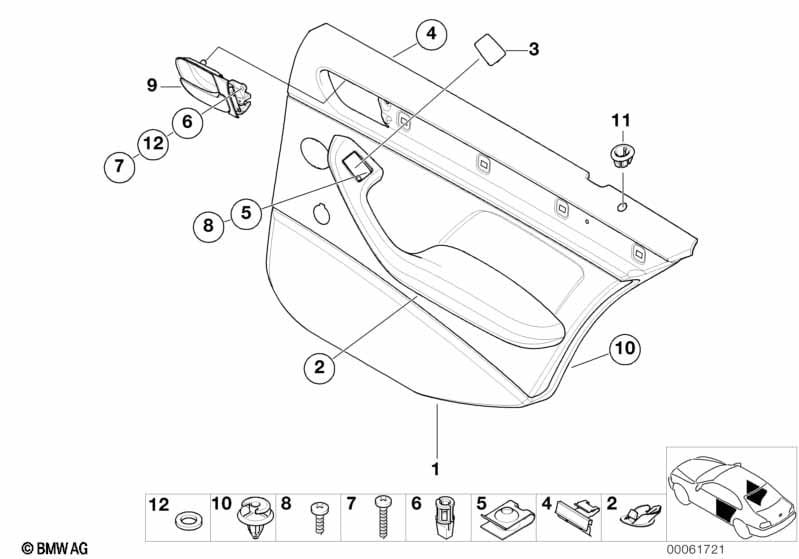

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 01 | Door trim panel, rear, left | HELLBEIGE | 1 | 51428224539 | $764.51 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | HELLBEIGE | 1 | 51428224540 | $764.51 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 01 | Door trim panel, rear, left | GRAU | 1 | 51428224379 | $321.41 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | GRAU | 1 | 51428224380 | $321.41 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 01 | Door trim panel, rear, left | TANINROT | 1 | 51428224541 | $1090.62 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | TANINROT | 1 | 51428224542 | $1090.62 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 01 | Door trim panel, rear, left | HELLBEIGE | 1 | 51428230201 | $1079.79 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | HELLBEIGE | 1 | 51428230202 | $1079.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 01 | Door trim panel, rear, left | BIANCO NERO | 1 | 51427025709 | $560.79 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | BIANCO NERO | 1 | 51427025710 | $560.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 01 | Door trim panel, rear, left | SCHWARZ | 1 | 51428232629 | $613.35 | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | SCHWARZ | 1 | 51428232630 | $613.35 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 01 | Door trim panel, rear, left | HELLBEIGE | 1 | 51428230259 | $321.41 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | HELLBEIGE | 1 | 51428230260 | $321.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 01 | Door trim panel, rear, left | LIGHTGELB | 1 | 51428230203 | $848.16 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | LIGHTGELB | 1 | 51428230204 | $848.16 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 01 | Door trim panel, rear, left | GRAU | 1 | 51428224537 | $764.51 | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | GRAU | 1 | 51428224538 | $764.51 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 01 | Door trim panel, rear, left | LAVENDEL | 1 | 51428224495 | $321.41 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | LAVENDEL | 1 | 51428224496 | $321.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 01 | Door trim panel, rear, left | SCHWARZ | 1 | 51428230199 | $848.16 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | SCHWARZ | 1 | 51428230200 | $1112.22 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 51427890715 | $613.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 51427890716 | $613.35 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 01 | Door trim panel, rear, left | PEACH | 1 | 51428230213 | $321.41 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | PEACH | 1 | 51428230214 | $613.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 51428224431 | $321.41 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 51428224432 | $321.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 01 | Door trim panel, rear, left | HELLBEIGE | 1 | 51428229775 | $613.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | HELLBEIGE | 1 | 51428229776 | $613.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 01 | Door trim panel, rear, left | GT-GRUEN | 1 | 51428224433 | $321.41 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | GT-GRUEN | 1 | 51428224434 | $321.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 51428224381 | $321.41 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 51428224382 | $321.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 01 | Door trim panel, rear, left | MINT | 1 | 51428224383 | $321.41 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | MINT | 1 | 51428224384 | $321.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 01 | Door trim panel, rear, left | SCHWARZ | 1 | 51428224535 | $764.51 | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | SCHWARZ | 1 | 51428224536 | $764.51 | Shop at ECS Tuning | ||||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 51428213919 | $613.35 | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 51428213920 | $321.41 | NoS | Shop at ECS Tuning | |||
| 02 | Plug | SCHWARZ | 2 | 51418213917 | $1.26 | Shop at ECS Tuning | ||||
| 02 | Plug | GRAU | 2 | 51418224397 | $1.26 | Shop at ECS Tuning | ||||
| 02 | Plug | HELLBEIGE | 2 | 51418224398 | $1.26 | Shop at ECS Tuning | ||||
| 03 | Cover | SCHWARZ | 2 | 51428213935 | $3.21 | Shop at ECS Tuning | ||||
| 03 | Cover | GRAU | 2 | 51428224415 | $3.21 | Shop at ECS Tuning | ||||
| 03 | Cover | HELLBEIGE | 2 | 51428224416 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Clamp | 8 | 51418225552 | $0.74 | Shop at ECS Tuning | |||||
| 05 | Plug-in nut | M5 | 8 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 06 | Expanding nut | SCHWARZ | 2 | 51418238371 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Fillister head screw with collar | ISA 35X5 | 2 | 07146979835 | $0.89 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | 8 | 51417059617 | $0.39 | Shop at ECS Tuning | |||||
| 09 | Door handle, inside left | 1 | 51428200751 | $28.56 | Shop at ECS Tuning | |||||
| 09 | Door handle inner right | 1 | 51428200752 | $28.56 | Shop at ECS Tuning | |||||
| 10 | Clip with washer, natur | WEIß | 10 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 10 | Clip with seal ring | GRAU | 4 | 51418224781 | $0.69 | Shop at ECS Tuning | ||||
| 11 | Bush | 2 | 51418200729 | $0.65 | Shop at ECS Tuning | |||||
| 12 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 12 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
