Trim panel A- / B- / C-Column for BMW 3 Series E46 320d (2005)

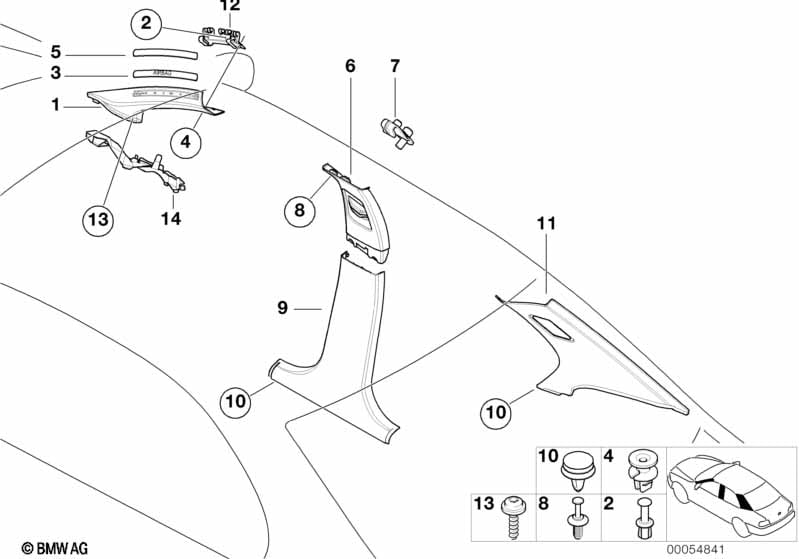

This Trim panel A- / B- / C-Column technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left column A cover | HELLGRAU | 1 | 51438268191 | $75.84 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | HELLGRAU | 1 | 51438268192 | $75.84 | Shop at ECS Tuning | ||||
| 01 | Left column A cover | HELLBEIGE 2 | 1 | 51438268193 | $75.84 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | HELLBEIGE 2 | 1 | 51438268194 | $75.84 | Shop at ECS Tuning | ||||
| 01 | Left column A cover | SCHWARZ | 1 | 03/1999 | 51432699793 | $75.84 | Shop at ECS Tuning | |||
| 01 | Right column A cover | SCHWARZ | 1 | 03/1999 | 51432699794 | $75.84 | Shop at ECS Tuning | |||
| 02 | Expanding rivet | 6 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 03 | Covering f A column cover ITS | SCHWARZ | 2 | 51432699055 | $11.51 | Shop at ECS Tuning | ||||
| 03 | Covering f A column cover ITS | HELLGRAU | 2 | 51438228691 | $11.51 | Shop at ECS Tuning | ||||
| 03 | Covering f A column cover ITS | HELLBEIGE | 2 | 51438228709 | $11.51 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | 6 | 51438229754 | $0.56 | Shop at ECS Tuning | |||||
| 05 | Covering f upper A column cover ITS | SCHWARZ | 2 | 51432699056 | Shop at ECS Tuning | |||||
| 05 | Covering f upper A column cover ITS | HELLGRAU | 2 | 51438238581 | $11.51 | Shop at ECS Tuning | ||||
| 05 | Covering f upper A column cover ITS | HELLBEIGE | 2 | 51438238582 | $11.51 | Shop at ECS Tuning | ||||
| 06 | Left upper column A cover ITS | SCHWARZ | 1 | 51432699101 | $111.37 | Shop at ECS Tuning | ||||
| 06 | Right upper column A cover ITS | SCHWARZ | 1 | 51432699102 | $111.37 | Shop at ECS Tuning | ||||
| 06 | Cover, B-column upper left | HELLGRAU | 1 | 07/1998 | 51438266945 | $111.37 | Shop at ECS Tuning | |||
| 06 | Cover, B-column upper right | HELLGRAU | 1 | 07/1998 | 51438266946 | $111.37 | Shop at ECS Tuning | |||
| 06 | Cover, B-column upper left | HELLBEIGE | 1 | 07/1998 | 51438266947 | $111.37 | Shop at ECS Tuning | |||
| 06 | Cover, B-column upper right | HELLBEIGE | 1 | 07/1998 | 51438266948 | $111.37 | Shop at ECS Tuning | |||
| 08 | Expanding rivet | D = 6MM | 4 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 09 | Cover, B-column bottom left | SCHWARZ | 1 | 51438226567 | $86.65 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover, B-column bottom right | SCHWARZ | 1 | 51438226568 | $86.65 | Shop at ECS Tuning | ||||
| 09 | Cover, B-column bottom left | GRAU | 1 | 51438226579 | $86.65 | Shop at ECS Tuning | ||||
| 09 | Cover, B-column bottom right | GRAU | 1 | 51438226580 | $86.65 | Shop at ECS Tuning | ||||
| 09 | Cover, B-column bottom left | HELLBEIGE 2 | 1 | 51438226581 | $86.65 | Shop at ECS Tuning | ||||
| 09 | Cover, B-column bottom right | HELLBEIGE 2 | 1 | 51438226582 | $86.65 | Shop at ECS Tuning | ||||
| 10 | Clip Natur | 8 | 51411973500 | $0.24 | Shop at ECS Tuning | |||||
| 10 | Clip | 8 | 51438225567 | $0.55 | Shop at ECS Tuning | |||||
| 10 | Clip, black | 8 | 52201964201 | $0.38 | Shop at ECS Tuning | |||||
| 11 | ITS trim C-pillar left | SCHWARZ | 1 | 51432699103 | $65.00 | Shop at ECS Tuning | ||||
| 11 | ITS trim C-pillar right | SCHWARZ | 1 | 51432699104 | $39.90 | Shop at ECS Tuning | ||||
| 11 | ITS trim C-pillar left | HELLGRAU | 1 | 51438225573 | $65.00 | Shop at ECS Tuning | ||||
| 11 | ITS trim C-pillar right | HELLGRAU | 1 | 51438225574 | $65.00 | Shop at ECS Tuning | ||||
| 11 | ITS trim C-pillar left | HELLBEIGE | 1 | 51438226589 | $65.00 | Shop at ECS Tuning | ||||
| 11 | ITS trim C-pillar right | HELLBEIGE | 1 | 51438226590 | $65.00 | Shop at ECS Tuning | ||||
| 12 | Bracket, column A cover, left | 1 | 07/1998 | 51438268167 | $10.92 | Shop at ECS Tuning | ||||
| 12 | Bracket, column A cover, right | 1 | 07/1998 | 51438268168 | $10.92 | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | 6 | 51438229759 | ENDED | Shop at ECS Tuning | |||||
| 13 | Torx bolt | ST4,8X32 | 6 | 07/1998 | 07149112637 | $0.64 | Shop at ECS Tuning | |||
| 13 | Fillister head self-tapping screw | 6 | 07/1998 | 72128266718 | $1.11 | Shop at ECS Tuning | ||||
| 14 | Bracket left | 1 | 51458222707 | $2.17 | Shop at ECS Tuning | |||||
| 14 | Bracket right | 1 | 51458222708 | $2.17 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
