Trim panel leg room for BMW 3 Series E46 M3 (2002)

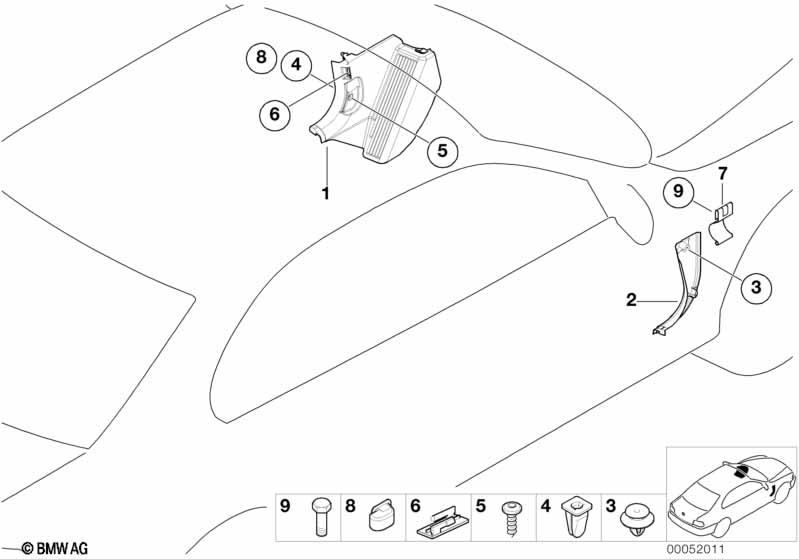

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel, M foot rest,frnt lft | M GRAU | 1 | 51437894565 | $66.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel, M foot rest,frnt lft | M HELLBEIGE | 1 | 51437894624 | $66.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front right | SCHWARZ | 1 | 51438227952 | $13.71 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel, M foot rest,frnt lft | M SCHWARZ | 1 | 01/2000 | 51432695411 | $66.50 | Shop at ECS Tuning | |||
| 02 | Lateral trim panel front right | GRAU | 1 | 51438238512 | $13.71 | Shop at ECS Tuning | ||||
| For vehicles with Leather, Walknappa/gray |
N5TT=Yes |
|||||||||
| 02 | Lateral trim panel front right | GRAU | 1 | 51438238512 | $13.71 | Shop at ECS Tuning | ||||
| For vehicles with Leather M-texture/Alcantara/anthrazit or Cloth "Impuls"/anthracite or Leather Walknappa/imola-red or Leather, Walknappa/laguna seca blau or Leather Walknappa kiwi or Leather Walknappa/black or Leather, Walknappa/zimt |
F2AT=Yes G8AT=Yes N5IM=Yes N5LS=Yes N5OV=Yes N5SW=Yes N5ZM=Yes |
|||||||||
| 02 | Lateral trim panel front right | SCHWARZ | 1 | 51438227952 | $13.71 | Shop at ECS Tuning | ||||
| 03 | Clip, black | 2 | 51498123832 | $0.29 | Shop at ECS Tuning | |||||
| 04 | Expanding nut | ST 4.8 | 1 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 WEISS | 1 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | L=15MM, DMAX=12 | 1 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Set fillister head self-tapping screw 20 | ST4,8X19-Z1 | 1 | 07509063297 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Light beige 2 |
HC=Yes |
|||||||||
| 06 | Cover | SANDBEIGE | 1 | 51438212185 | $1.14 | Shop at ECS Tuning | ||||
| For vehicles with grey |
TT=Yes |
|||||||||
| 06 | Cover | GRAU | 1 | 51438212182 | $1.14 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or poetic-blue or blue or orange or pistazie or peach or red or lavanda dunkel or Black or tanin-rot or topas-blau |
AT=Yes AU=Yes BL=Yes OG=Yes PI=Yes PP=Yes RE=Yes SE=Yes SW=Yes TD=Yes TO=Yes |
|||||||||
| 06 | Cover | SCHWARZ | 1 | 51438212181 | $1.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
