Headlining for BMW 3 Series E46 325i (2004)

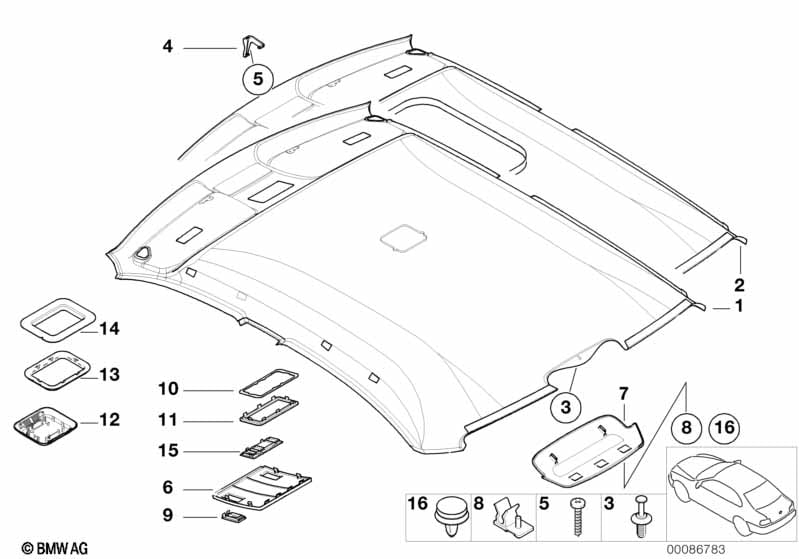

This Headlining technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Glass roof, electrical and Headlining anthracite and Light beige 2 |
S403A=Yes S775A=No HC=Yes |
|||||||||
| 01 | Headliner ITS | HELLBEIGE | 1 | 51448226602 | $367.86 | +core | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Headlining anthracite and Light beige 2 |
S403A=No S775A=Yes HC=Yes |
|||||||||
| 01 | Headliner ITS | HELLBEIGE | 1 | 51448226602 | $367.86 | +core | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Headlining anthracite and Light beige 2 |
S403A=No S775A=No HC=Yes |
|||||||||
| 01 | Headliner ITS | HELLBEIGE | 1 | 51448226602 | $367.86 | +core | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=Yes S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 01 | Headliner ITS | HELLGRAU | 1 | 51448225568 | $367.86 | +core | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=No S775A=Yes E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 01 | Headliner ITS | HELLGRAU | 1 | 51448225568 | $367.86 | +core | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=No S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 01 | Headliner ITS | HELLGRAU | 1 | 51448225568 | $367.86 | +core | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Headlining anthracite and Light beige 2 |
S403A=Yes S775A=No HC=Yes |
|||||||||
| 02 | Headliner, sunroof ITS | HELLBEIGE | 1 | 51448226604 | $367.86 | +core | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=Yes S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 02 | Headliner, sunroof ITS | HELLGRAU | 1 | 51448225970 | $367.86 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 04 | Support, head lining, front | 1 | 51448224982 | $2.16 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST4,8X19 | 1 | 07119904183 | $0.17 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,2X16-CR GL | 1 | 07119906761 | $1.40 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite |
S403A=Yes S775A=Yes |
|||||||||
| 06 | Front headlining cover | SCHWARZ | 1 | 03/1998 | 51447028576 | $10.51 | Shop at ECS Tuning | |||
| 06 | Front headlining cover | SCHWARZ | 1 | 51447028576 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Preparation f tel.installation universal and Headlining anthracite |
S403A=Yes S640A=Yes S775A=Yes |
|||||||||
| 06 | Front headlining cover | SCHWARZ | 1 | 51447028576 | $10.51 | Shop at ECS Tuning | ||||
| 06 | Front headlining cover | SCHWARZ | 1 | 03/1998 | 51447028576 | $10.51 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Headlining anthracite and Light beige 2 |
S403A=Yes S775A=No HC=Yes |
|||||||||
| 06 | Front headlining cover | HELLBEIGE | 1 | 51448224358 | $16.05 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Preparation f tel.installation universal and Headlining anthracite and Light beige 2 |
S403A=Yes S640A=Yes S775A=No HC=Yes |
|||||||||
| 06 | Front headlining cover | HELLBEIGE | 1 | 51448229031 | $16.05 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=Yes S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||

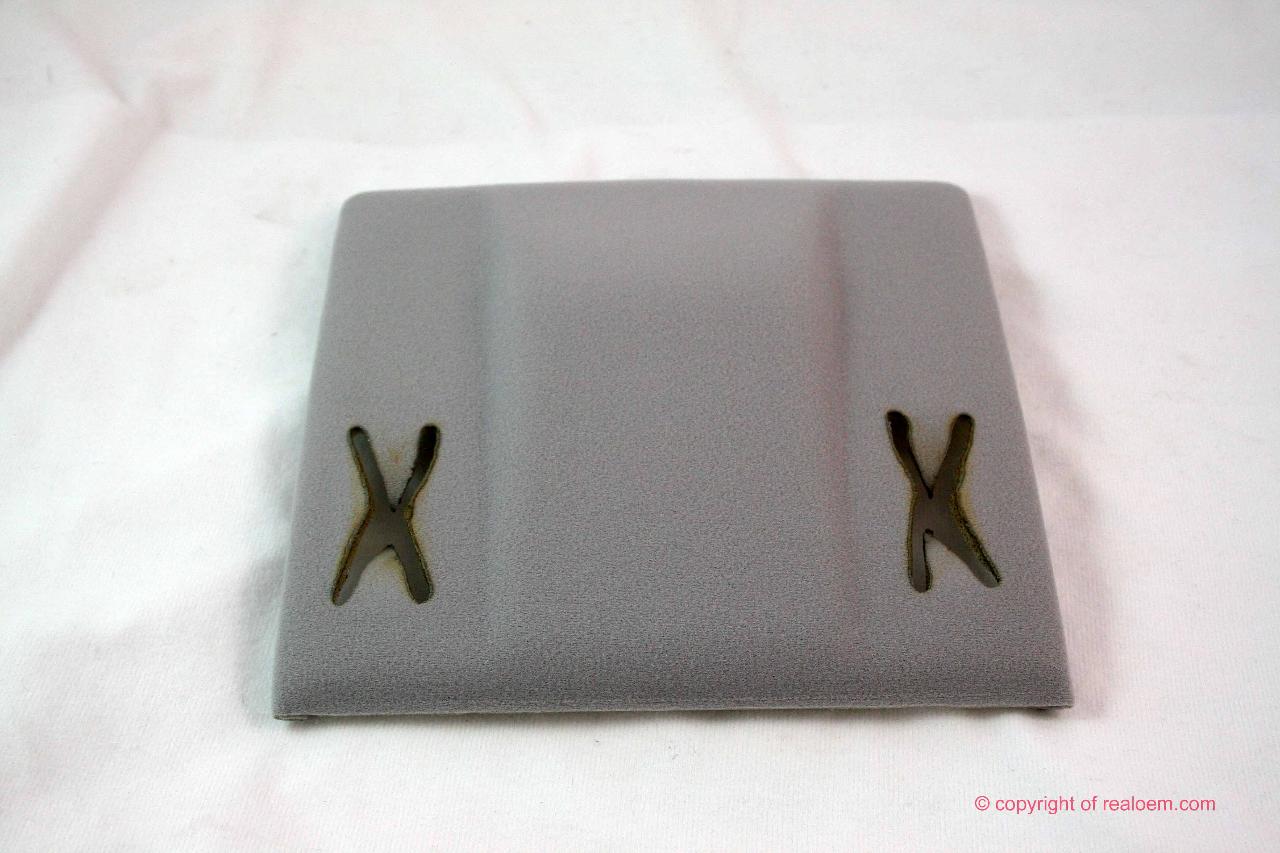

| 06 | Front headlining cover | HELLGRAU | 1 | 51448229033 | $16.05 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Preparation f tel.installation universal and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=Yes S640A=Yes S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 06 | Front headlining cover | HELLGRAU | 1 | 51448229030 | $16.05 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 07 | Covering headlining rear | SCHWARZ | 1 | 51442699109 | $32.08 | Shop at ECS Tuning | ||||
| 07 | Covering headlining rear | SCHWARZ | 1 | 03/1998 | 51442699109 | $32.08 | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and Light beige 2 |
S775A=No HC=Yes |
|||||||||
| 07 | Covering headlining rear | HELLBEIGE | 1 | 09/1999 | 51448249940 | $32.08 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 07 | Covering headlining rear | HELLGRAU | 1 | 09/1999 | 51448249939 | $32.08 | Shop at ECS Tuning | |||
| 08 | Clamp | 2 | 51448227793 | $0.55 | Shop at ECS Tuning | |||||
| 09 | Cover, microphone | SCHWARZ | 1 | 51448250108 | $4.29 | Shop at ECS Tuning | ||||
| For vehicles with Preparation f tel.installation universal |
S640A=Yes |
|||||||||
| 10 | Frame f hands free telephone | 1 | 51448171515 | $1.65 | Shop at ECS Tuning | |||||
| 11 | Frame f hands free telephone | ANTHRAZIT | 1 | 51442268975 | $3.21 | Shop at ECS Tuning | ||||
| For vehicles with Preparation f tel.installation universal and Headlining anthracite |
S640A=Yes S775A=No |
|||||||||
| 11 | Frame f hands free telephone | SANDBEIGE | 1 | 51448174705 | $3.21 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Preparation f tel.installation universal and Headlining anthracite |
S640A=Yes S775A=Yes |
|||||||||
| 11 | Frame f hands free telephone | ANTHRAZIT | 1 | 51442268975 | $3.21 | Shop at ECS Tuning | ||||
| For vehicles with Preparation f tel.installation universal and Headlining anthracite and Light beige 2 |
S640A=Yes S775A=No HC=Yes |
|||||||||
| 11 | Frame f hands free telephone | HELLBEIGE | 1 | 51448240041 | $3.21 | Shop at ECS Tuning | ||||
| For vehicles with Preparation f tel.installation universal and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S640A=Yes S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 11 | Frame f hands free telephone | HELLGRAU | 1 | 51448174704 | $3.21 | Shop at ECS Tuning | ||||
| 12 | Cover | SCHWARZ | 1 | 51442699064 | $21.40 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Headlining anthracite |
S302A=Yes S775A=Yes |
|||||||||
| 12 | Cover | SCHWARZ | 1 | 51442699064 | $21.40 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Headlining anthracite and Light beige 2 |
S302A=Yes S775A=No HC=Yes |
|||||||||
| 12 | Cover | HELLBEIGE | 1 | 04/1998 | 51448243733 | $21.40 | Shop at ECS Tuning | |||
| For vehicles with Alarm system and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black The gray trim 8243732 is no longer available. As a replacement, the black part number 2699064 must be used. |
S302A=Yes S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 12 | Trim radio interior protection | HELLGRAU | 1 | 04/1998 | 51448243732 | $21.40 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Alarm system |
S302A=Yes |
|||||||||
| 13 | Bracket f ultrasonic module bottom | 1 | 04/1998 | 51448243665 | $5.33 | ENDED | Shop at ECS Tuning | |||
| 14 | Bracket f ultrasonic module top | 1 | 04/1998 | 51448243666 | $9.59 | ENDED | Shop at ECS Tuning | |||
| 15 | Cover, microphone | ANTHRAZIT | 1 | 51448250118 | $4.29 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite |
S403A=Yes S629A=Yes S640A=Yes S775A=Yes |
|||||||||
| 15 | Cover, microphone | ANTHRAZIT | 1 | 06/1998 | 51448250118 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite |
S403A=Yes S629A=Yes S640A=No S775A=Yes |
|||||||||
| 15 | Cover, microphone | ANTHRAZIT | 1 | 06/1998 | 51448250118 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite |
S403A=Yes S629A=No S640A=Yes S775A=Yes |
|||||||||
| 15 | Cover, microphone | ANTHRAZIT | 1 | 06/1998 | 51448250118 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite |
S403A=Yes S629A=No S640A=No S775A=Yes |
|||||||||
| 15 | Cover, microphone | ANTHRAZIT | 1 | 06/1998 | 51448250118 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite |
S403A=No S629A=Yes S640A=Yes S775A=Yes |
|||||||||
| 15 | Cover, microphone | ANTHRAZIT | 1 | 06/1998 | 51448250118 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite |
S403A=No S629A=Yes S640A=No S775A=Yes |
|||||||||
| 15 | Cover, microphone | ANTHRAZIT | 1 | 06/1998 | 51448250118 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite |
S403A=No S629A=No S640A=Yes S775A=Yes |
|||||||||
| 15 | Cover, microphone | ANTHRAZIT | 1 | 06/1998 | 51448250118 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Light beige 2 |
S403A=Yes S629A=Yes S640A=Yes S775A=No HC=Yes |
|||||||||
| 15 | Cover, microphone | HELLBEIGE | 1 | 06/1998 | 51448250116 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Light beige 2 |
S403A=Yes S629A=Yes S640A=No S775A=No HC=Yes |
|||||||||
| 15 | Cover, microphone | HELLBEIGE | 1 | 06/1998 | 51448250116 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Light beige 2 |
S403A=Yes S629A=No S640A=Yes S775A=No HC=Yes |
|||||||||
| 15 | Cover, microphone | HELLBEIGE | 1 | 06/1998 | 51448250116 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Light beige 2 |
S403A=Yes S629A=No S640A=No S775A=No HC=Yes |
|||||||||
| 15 | Cover, microphone | HELLBEIGE | 1 | 06/1998 | 51448250116 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Light beige 2 |
S403A=No S629A=Yes S640A=Yes S775A=No HC=Yes |
|||||||||
| 15 | Cover, microphone | HELLBEIGE | 1 | 06/1998 | 51448250116 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Light beige 2 |
S403A=No S629A=Yes S640A=No S775A=No HC=Yes |
|||||||||
| 15 | Cover, microphone | HELLBEIGE | 1 | 06/1998 | 51448250116 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Light beige 2 |
S403A=No S629A=No S640A=Yes S775A=No HC=Yes |
|||||||||
| 15 | Cover, microphone | HELLBEIGE | 1 | 06/1998 | 51448250116 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=Yes S629A=Yes S640A=Yes S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 15 | Cover, microphone | HELLGRAU | 1 | 06/1998 | 51448250115 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=Yes S629A=Yes S640A=No S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 15 | Cover, microphone | HELLGRAU | 1 | 06/1998 | 51448250115 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=Yes S629A=No S640A=Yes S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 15 | Cover, microphone | HELLGRAU | 1 | 06/1998 | 51448250115 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=Yes S629A=No S640A=No S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 15 | Cover, microphone | HELLGRAU | 1 | 06/1998 | 51448250115 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=No S629A=Yes S640A=Yes S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 15 | Cover, microphone | HELLGRAU | 1 | 06/1998 | 51448250115 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=No S629A=Yes S640A=No S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 15 | Cover, microphone | HELLGRAU | 1 | 06/1998 | 51448250115 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Car telephone (GSM) w card reader, front and Preparation f tel.installation universal and Headlining anthracite and Cloth flock "Raute"/mint-green or Cloth flock "Raute"/anthracite or Cloth flock "Raute"/navy blue or Cloth flock "Raute"/grey or Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/tief-grün" or Fabric Jacquard bicolor Moda/lavendel or Cloth "High Tex"/techno-grey or Cloth "Laser"/anthracite or Cloth/leather "Bianco-Nero"/anthracite/w or Fabric Jacquard/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/taninrot or Leather Montana/basic equip/grau or Leather Mosaico expanded/lightgelb or Leather Mosaico expanded/black |
S403A=No S629A=No S640A=Yes S775A=No E3AP=Yes E3AT=Yes E3DL=Yes E3TT=Yes E4AT=Yes E4GG=Yes E5LA=Yes E6TF=Yes G7AT=Yes H7BC=Yes H9AT=Yes K4SW=Yes N6SW=Yes N6TD=Yes N6TT=Yes Q9LT=Yes Q9SW=Yes |
|||||||||
| 15 | Cover, microphone | HELLGRAU | 1 | 06/1998 | 51448250115 | $4.29 | Shop at ECS Tuning | |||
| 16 | Clip Natur | 2 | 51411973500 | $0.24 | Shop at ECS Tuning | |||||
| 16 | Clip | 2 | 51438189311 | $0.55 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
