Sound insulating rear for BMW MINI Clubman F54 One (2019)

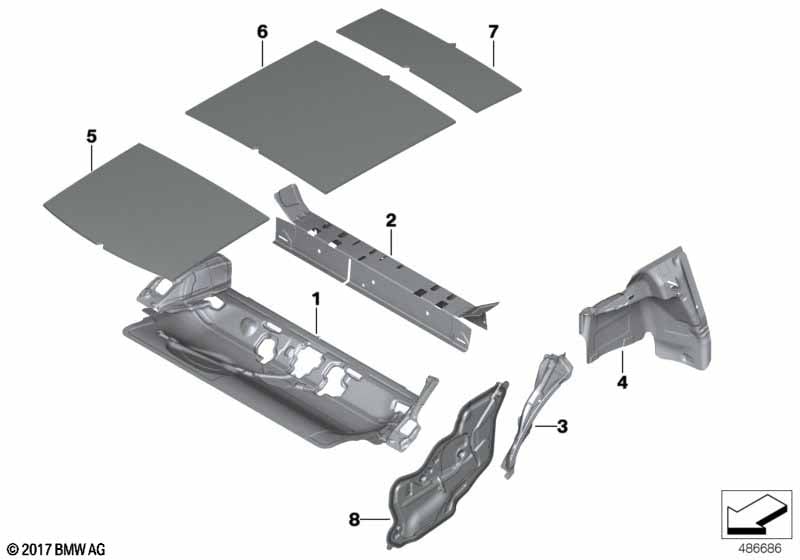

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation floor rear | 1 | 51487353863 | Shop at ECS Tuning | ||||||
| 02 | Trunk cross member sound insulation | 1 | 51487298609 | Shop at ECS Tuning | ||||||
| 03 | Sound insulating wheel housing rear left | 1 | 51487369179 | Shop at ECS Tuning | ||||||
| 03 | Sound insulating wheel housing rear rig. | 1 | 51487369180 | Shop at ECS Tuning | ||||||
| 04 | Noise insulation, whlhousing, trunk, le | 1 | 51487360779 | Shop at ECS Tuning | ||||||
| 04 | Noise insulation, whlhousing, trunk, ri | 1 | 51487360780 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 05 | Sound insulating roof front | 1 | 51487363545 | Shop at ECS Tuning | ||||||
| 06 | Sound insulating roof center | 1 | 51487370223 | Shop at ECS Tuning | ||||||
| 07 | Sound insulating roof rear | 1 | 41007385775 | Shop at ECS Tuning | ||||||
| 08 | Sound insulating door rear left | 1 | 51487442379 | Shop at ECS Tuning | ||||||
| 08 | Sound insulating door rear right | 1 | 51487442380 | Shop at ECS Tuning | ||||||
