Floor covering for BMW 3 Series E46 330d (2004)
This Floor covering technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor trim cover, front | GRAU | 1 | 51478197048 | $406.22 | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | HELLBEIGE | 1 | 51478197267 | $406.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | ANTHRAZIT | 1 | 51478213976 | Shop at ECS Tuning | |||||
| 02 | Floor covering rear | HELLBEIGE | 1 | 51478197047 | $374.70 | Shop at ECS Tuning | ||||
| 02 | Floor covering rear | GRAU | 1 | 51478198649 | $301.32 | ENDED | Shop at ECS Tuning | |||
| 02 | Floor covering rear | ANTHRAZIT | 1 | 51478213980 | Shop at ECS Tuning | |||||
| 03 | Clip | D=30MM | 2 | 51488245867 | $0.35 | Shop at ECS Tuning | ||||
| 04 | Push-button | D=30MM;H=13MM | 2 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Protection foil | 1 | 51478164919 | $11.20 | Shop at ECS Tuning | |||||
| 06 | Left insert | 1 | 51478209921 | $10.37 | Shop at ECS Tuning | |||||
| 06 | Right insert | 1 | 51478213032 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Dynamic stability control |
S210A=Yes |
|||||||||
| 06 | Left insert | 1 | 51478242727 | $10.37 | Shop at ECS Tuning | |||||
| 07 | Heater duct left | 1 | 51478204105 | $17.56 | Shop at ECS Tuning | |||||
| 07 | Heater duct right | 1 | 51478204106 | $17.56 | Shop at ECS Tuning | |||||
| 08 | Clip | H=15MM | 2 | 51481924909 | $0.42 | Shop at ECS Tuning | ||||
| For vehicles with grey |
TT=Yes |
|||||||||
| 10 | Rotary latch 17 mm | GRAU | 8 | 51478243738 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Light beige 2 |
HC=Yes |
|||||||||
| 10 | Rotary latch 17 mm | HELLBEIGE 2 DKL | 8 | 51478243739 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or poetic-blue or blue or orange or pistazie or peach or red or lavanda dunkel or Black or tanin-rot or topas-blau |
AT=Yes AU=Yes BL=Yes OG=Yes PI=Yes PP=Yes RE=Yes SE=Yes SW=Yes TD=Yes TO=Yes |
|||||||||
| 10 | Rotary latch 17 mm | ANTHRAZIT | 8 | 51478243737 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Intermediate piece f floor heater duct | 1 | 51168234446 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Floor covering?

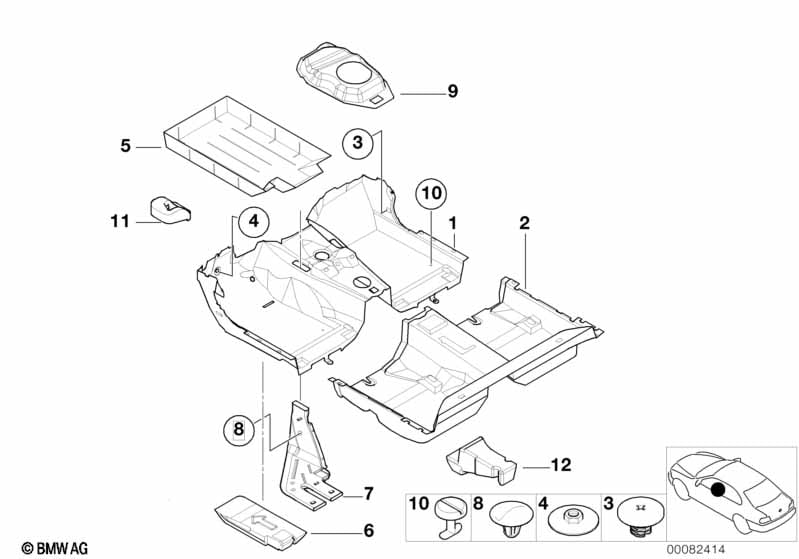

- This technical diagram illustrates the Floor covering within the Vehicle trim group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Floor trim cover, front (Part #51478197048).
