Rear window shelf / sun blind electr. for BMW 3 Series E46 318i (2004)

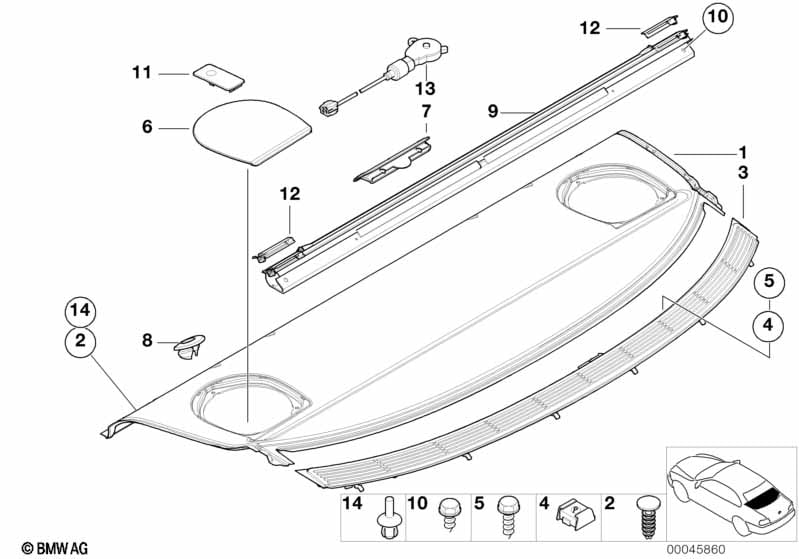

This Rear window shelf / sun blind electr. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51468289513 | $139.44 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | GRAU | 1 | 51468289514 | $139.44 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | HELLBEIGE | 1 | 51468289516 | $139.44 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | MINTGRUEN | 1 | 07/1998 | 51468289515 | $139.44 | ENDED | Shop at ECS Tuning | ||
| 02 | Clip, black | 4 | 52201964201 | $0.38 | Shop at ECS Tuning | |||||
| 03 | Grid | SCHWARZ | 1 | 51468213963 | $24.90 | Shop at ECS Tuning | ||||
| 03 | Grid | GRAU | 1 | 51468226490 | $24.90 | Shop at ECS Tuning | ||||
| 03 | Grid | MINTGRUEN | 1 | 51468226492 | $26.51 | ENDED | Shop at ECS Tuning | |||
| 03 | Grid | HELLBEIGE | 1 | 51468226493 | $24.90 | Shop at ECS Tuning | ||||
| 04 | Prestol-cage | ST4,2 | 4 | 07129901744 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST4,2X16-Z2 | 4 | 07119901279 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Hex head screw | ST4,2X16 | 4 | 07119900753 | $0.24 | Shop at ECS Tuning | ||||
| 06 | Cover Loudspeaker | SCHWARZ | 2 | 51468213971 | $16.06 | Shop at ECS Tuning | ||||
| 06 | Cover Loudspeaker | GRAU | 2 | 51468226494 | $16.06 | Shop at ECS Tuning | ||||
| 06 | Cover Loudspeaker | MINTGRUEN | 2 | 51468226496 | $16.06 | Shop at ECS Tuning | ||||
| 06 | Cover Loudspeaker | HELLBEIGE | 2 | 51468226497 | $16.06 | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 06 | Cover Loudspeaker | SCHWARZ | 2 | 51468213972 | $24.00 | Shop at ECS Tuning | ||||
| 06 | Cover Loudspeaker | GRAU | 2 | 51468226498 | $24.00 | Shop at ECS Tuning | ||||
| 06 | Cover Loudspeaker | MINTGRUEN | 2 | 51468226500 | $25.67 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover Loudspeaker | HELLBEIGE | 2 | 51468226501 | $24.00 | Shop at ECS Tuning | ||||
| 07 | Cover, belt outlet | SCHWARZ | 2 | 51468213970 | $2.64 | Shop at ECS Tuning | ||||
| 07 | Cover, belt outlet | GRAU | 2 | 51468226502 | $2.64 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover, belt outlet | MINTGRUEN | 2 | 51468226504 | $2.40 | Shop at ECS Tuning | ||||
| 07 | Cover, belt outlet | HELLBEIGE | 2 | 51468226505 | $2.64 | Shop at ECS Tuning | ||||
| 08 | Head rest cover | SCHWARZ | 4 | 51468196403 | $0.88 | Shop at ECS Tuning | ||||
| 08 | Head rest cover | GRAU | 4 | 51468226506 | $0.88 | Shop at ECS Tuning | ||||
| 08 | Head rest cover | MINTGRUEN | 4 | 51468226508 | $0.80 | Shop at ECS Tuning | ||||
| 08 | Head rest cover | HELLBEIGE | 4 | 51468226509 | $0.88 | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear |
S415A=Yes |
|||||||||
| 09 | Roller sun shield | 1 | 51468202185 | $481.19 | Shop at ECS Tuning | |||||
| 10 | Fillister head screw | M5X10 | 3 | 07149149399 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 11 | Cover | SCHWARZ | 1 | 51218213603 | $9.27 | Shop at ECS Tuning | ||||
| 11 | Cover | GRAU | 1 | 51468226510 | $9.18 | Shop at ECS Tuning | ||||
| 11 | Cover | MINTGRUEN | 1 | 51468226512 | $9.26 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover | HELLBEIGE | 1 | 51468226513 | $9.18 | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear |
S415A=Yes |
|||||||||
| 12 | Covering left | 1 | 51468218275 | $2.14 | Shop at ECS Tuning | |||||
| 12 | Covering right | 1 | 51468218276 | $2.14 | Shop at ECS Tuning | |||||
| 13 | Drive sun blind | 1 | 09/2001 | 67656916270 | $201.22 | Shop at ECS Tuning | ||||
| 14 | Expanding rivet | 4 | 51467002606 | $0.45 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
