Lateral trunk floor trim panel for BMW 3 Series E46 325i (2001)

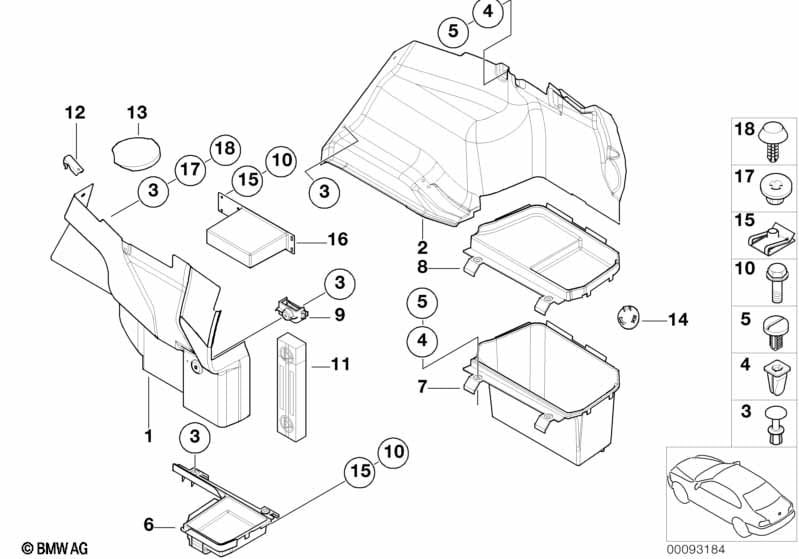

This Lateral trunk floor trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel left | 1 | 51478267967 | $29.67 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 01 | Trim panel left | 1 | 51478266563 | $39.81 | Shop at ECS Tuning | |||||
| For vehicles with On-board monitor with TV or Navigation system, radio or Navigation system Professional or CD changer for 6 CDs or Preparation, BMW 6-CD changer I-bus |
S602A=Yes S606A=Yes S609A=Yes S672A=Yes S692A=Yes |
|||||||||
| 01 | Trim panel left | 1 | 51478266561 | $78.84 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system or On-board monitor with TV or Navigation system, radio or Navigation system Professional or CD changer for 6 CDs or Preparation, BMW 6-CD changer I-bus |
S465A=Yes S602A=Yes S606A=Yes S609A=Yes S672A=Yes S692A=Yes |
|||||||||
| 01 | Trim panel left | 1 | 51478266565 | $89.78 | Shop at ECS Tuning | |||||
| 02 | Trim panel right | 1 | 51478193796 | $29.67 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 02 | Trim panel right | 1 | 51478204058 | $34.83 | Shop at ECS Tuning | |||||
| 03 | Expanding rivet | D = 8MM | 13 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | SCHWARZ | 13 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 04 | Lock insert | 5 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 04 | Lock insert | 2 | 64111376327 | $0.80 | Shop at ECS Tuning | |||||
| 05 | Locking button | 5 | 51478248015 | $0.44 | Shop at ECS Tuning | |||||
| 06 | Trunk tray left | 1 | 51478193797 | $22.34 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system, radio or Navigation system Professional or CD changer for 6 CDs or Hi-Fi System Harman Kardon |
S606A=Yes S609A=Yes S672A=Yes S674A=Yes |
|||||||||
| 06 | Trunk tray left | 1 | 51478162577 | $22.34 | Shop at ECS Tuning | |||||
| 07 | luggage compartment liner right | 1 | 51478204078 | $28.25 | Shop at ECS Tuning | |||||
| For vehicles with Battery in luggage compartment |
S832A=Yes |
|||||||||
| 08 | cover, battery luggage compartment | 1 | 51478193803 | $28.75 | Shop at ECS Tuning | |||||
| 09 | Bracket for hazard warn. triangle | SCHWARZ | 1 | 09/1998 | 51478265682 | $5.60 | Shop at ECS Tuning | |||
| 10 | Hex bolt | M5X14 | 4 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M5X14-8.8-ZNNIV | 4 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Warning triangle with container | ECE R27 | 1 | 71606770487 | Shop at ECS Tuning | |||||
| 12 | Locking bow | 1 | 51718215277 | $8.97 | Shop at ECS Tuning | |||||
| 13 | Cover | 2 | 51488230051 | $0.63 | Shop at ECS Tuning | |||||
| 14 | Left tail light cover | 1 | 51478232897 | $2.40 | Shop at ECS Tuning | |||||
| 14 | Right tail light cover | 1 | 51478232898 | $2.40 | Shop at ECS Tuning | |||||
| 15 | Body nut | M5 | 2 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system, radio or Navigation system Professional or CD changer for 6 CDs or Preparation, BMW 6-CD changer I-bus |
S606A=Yes S609A=Yes S672A=Yes S692A=Yes |
|||||||||
| 16 | Left oddments tray | 1 | 51478230573 | $11.20 | Shop at ECS Tuning | |||||
| 17 | Spacer bush | SCHWARZ | 4 | 51478189959 | $0.69 | Shop at ECS Tuning | ||||
| 18 | Push-button | SCHWARZ | 4 | 51478189958 | $0.42 | Shop at ECS Tuning | ||||
