Trunk trim panel for BMW 3 Series E46 330d (2004)

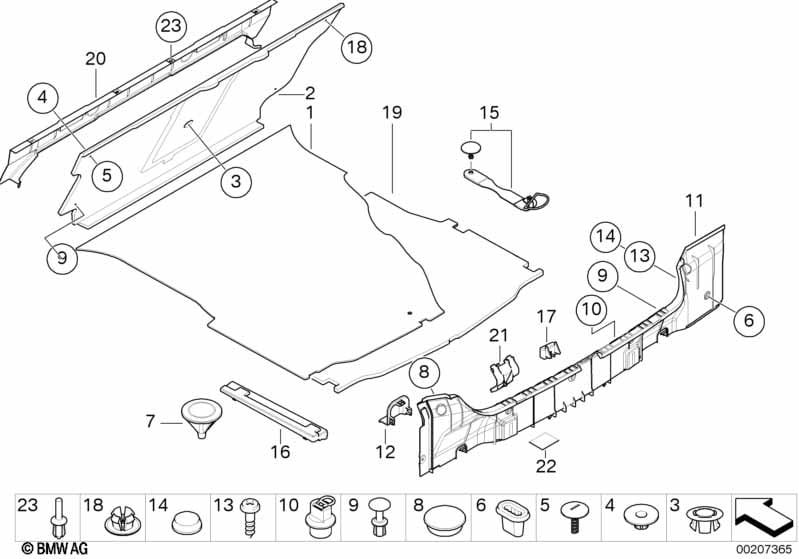

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk mat | 1 | 51478193790 | $118.81 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 01 | Trunk mat | 1 | 51478232347 | $77.05 | Shop at ECS Tuning | |||||
| 02 | Trunk partition trim panel | 1 | 51478193798 | $37.44 | Shop at ECS Tuning | |||||
| 03 | Battery wiring cap | 1 | 51478206645 | $0.80 | Shop at ECS Tuning | |||||
| 04 | Spacer bush | SCHWARZ | 4 | 51478189959 | $0.69 | Shop at ECS Tuning | ||||
| 05 | Push-button | SCHWARZ | 4 | 51478189958 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Clip, black | 4 | 52201964201 | $0.38 | Shop at ECS Tuning | |||||
| 06 | Grommet | 12X6,3 | 4 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Pad | H=50MM | 1 | 51471944899 | $3.37 | Shop at ECS Tuning | ||||
| 08 | Blind plug | D=15MM | 2 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 08 | Plug | SCHWARZ | 2 | 51718208355 | $0.26 | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | GRAU | 8 | 51478184135 | $0.52 | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | SCHWARZ | 8 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 10 | Mounting ring | H=28,5 MM | 2 | 51478110000 | $0.98 | Shop at ECS Tuning | ||||
| 11 | Covering rear | 1 | 51478193800 | $29.67 | Shop at ECS Tuning | |||||
| 12 | Cover | 2 | 51478213602 | $1.67 | Shop at ECS Tuning | |||||
| 13 | Sheet metal screw | ST4,2X19 | 4 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Cap | SCHWARZ | 4 | 51161949793 | $0.42 | Shop at ECS Tuning | ||||
| 15 | Holding strap | 1 | 51478256162 | $5.60 | Shop at ECS Tuning | |||||
| 16 | Left base | 225ER RAD | 1 | 51478245099 | $14.68 | Shop at ECS Tuning | ||||
| 16 | Right base | 225ER RAD | 1 | 51478245100 | $8.93 | Shop at ECS Tuning | ||||
| 17 | Pad, sill cover | 225ER RAD | 2 | 51478245101 | $1.95 | Shop at ECS Tuning | ||||
| 18 | Cap | H=30,2MM | 1 | 51478245102 | $0.64 | Shop at ECS Tuning | ||||
| 19 | removable panel for luggage compartment | 1 | 51478225327 | $77.05 | Shop at ECS Tuning | |||||
| 19 | Rear trunk mat base | 1 | 51487007887 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with BMW light-alloy wheel star spokes 43 or BMW light alloy wheel, cross spoke 29 or BMW light-alloy wheel star spokes 44 |
S273A=Yes S288A=Yes S290A=Yes |
|||||||||
| 19 | removable panel for luggage compartment | 1 | 09/1998 | 51478266559 | $87.79 | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 20 | Through-loading cross member trim | 1 | 51468204266 | $22.64 | Shop at ECS Tuning | |||||
| 22 | Set felt strip self-adhesive | 3 | 51452353024 | Shop at ECS Tuning | ||||||
| 23 | Expanding rivet | 4 | 51467002606 | $0.45 | Shop at ECS Tuning | |||||
