Sound insulating front for BMW 3 Series E46 M3 (2002)

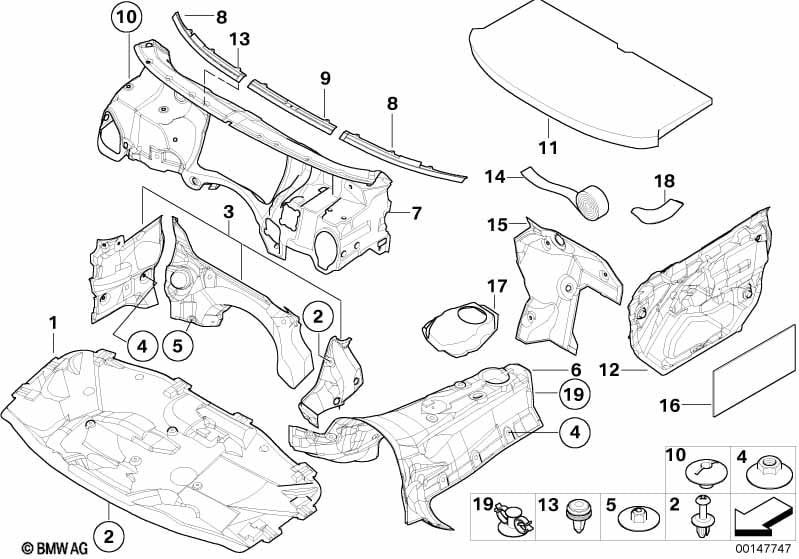

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating engine hood | 1 | 51487892711 | $91.30 | Shop at ECS Tuning | |||||
| 02 | Expanding rivet | D=7,5MM | 16 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 02 | Expanding rivet | D=11,3MM | 4 | 51717001494 | $0.82 | Shop at ECS Tuning | ||||
| 03 | Sound insulating dash panel engine room | 1 | 51487007997 | $91.30 | Shop at ECS Tuning | |||||
| 04 | Push-button | D=30MM;H=13MM | 6 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Body nut | D=30MM, ZNS3 | 2 | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Sound insulation, tunnel, exterior | 1 | 03/2002 | 51487895872 | $141.00 | Shop at ECS Tuning | ||||
| 07 | Upper sound insulating dash panel | 1 | 03/2002 | 51487072597 | $224.23 | Shop at ECS Tuning | ||||
| 08 | Bracket left | 1 | 51488231193 | $5.60 | Shop at ECS Tuning | |||||
| 08 | Bracket right | 1 | 51488231194 | $5.60 | Shop at ECS Tuning | |||||
| 09 | Bracket center | 1 | 51488231195 | $5.60 | Shop at ECS Tuning | |||||
| 10 | Push-button, gray | 1 | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
| 11 | Sound insulating roof front | 1 | 51488229733 | $34.42 | +core | Shop at ECS Tuning | ||||
| 12 | Sound insulating door front left | 1 | 51488204283 | $35.43 | Shop at ECS Tuning | |||||
| 12 | Sound insulating door front right | 1 | 51488204284 | $35.43 | Shop at ECS Tuning | |||||
| 13 | Clip | 9 | 51488252749 | $0.69 | Shop at ECS Tuning | |||||
| 15 | Sound insulating right | 1 | 51487007972 | $17.20 | Shop at ECS Tuning | |||||
| For vehicles with Dynamic stability control |
S210A=Yes |
|||||||||
| 15 | Sound insulating left | 1 | 51488238409 | $17.20 | Shop at ECS Tuning | |||||
| 16 | Sound deadener, door | 2 | 51487011784 | $7.73 | Shop at ECS Tuning | |||||
| 18 | Filling insert left | 1 | 51717893049 | $5.13 | Shop at ECS Tuning | |||||
| 18 | Filling insert right | 1 | 51717893050 | $5.13 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Sound insulating front?
- This technical diagram illustrates the Sound insulating front within the Vehicle trim group for the 3 Series E46 M3 produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulating engine hood (Part #51487892711).
- Which models use the hardware listed in this Sound insulating front?
- The hardware and components featured in the Sound insulating front are specific to the 3 Series E46 M3 produced during 2002. These technical specifications ensure that parts like the Sound insulating engine hood (51487892711) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulating front assembly?
- Each item in the Sound insulating front corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Sound insulating engine hood by locating its position on the schematic, which then links to the official BMW part number 51487892711 for the Vehicle trim section.
