Emblems / letterings for BMW 3 Series E46 320i (2005)

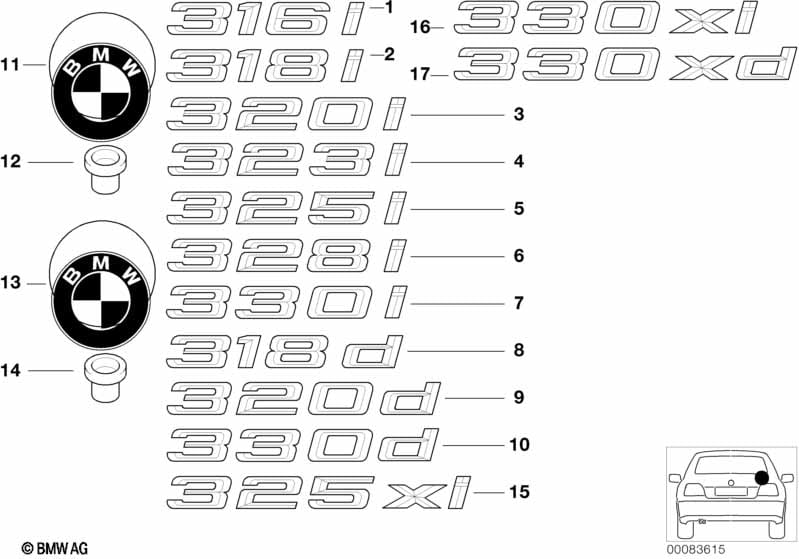

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Emblem adhered rear | - 320I - | 1 | 51148195153 | $27.18 | Shop at ECS Tuning | ||||
| only applies to hood | ||||||||||
| 11 | Badge | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 12 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| only applies to trunk lid | ||||||||||
| 13 | Badge | BMW Ø 74MM | 1 | 51148219237 | $30.43 | Shop at ECS Tuning | ||||
| 14 | Grommet | 2 | 51148209932 | $0.22 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320i Emblems / letterings?
- This technical diagram illustrates the Emblems / letterings within the Vehicle trim group for the 3 Series E46 320i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Emblem adhered rear (Part #51148195153).
- Which models use the hardware listed in this Emblems / letterings?
- The hardware and components featured in the Emblems / letterings are specific to the 3 Series E46 320i produced during 2005. These technical specifications ensure that parts like the Emblem adhered rear (51148195153) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emblems / letterings assembly?
- Each item in the Emblems / letterings corresponds to the numbered list below the illustration. For the 3 Series E46 320i, you can identify the Emblem adhered rear by locating its position on the schematic, which then links to the official BMW part number 51148195153 for the Vehicle trim section.
