Exterior trim / grill for BMW 3 Series E46 330d

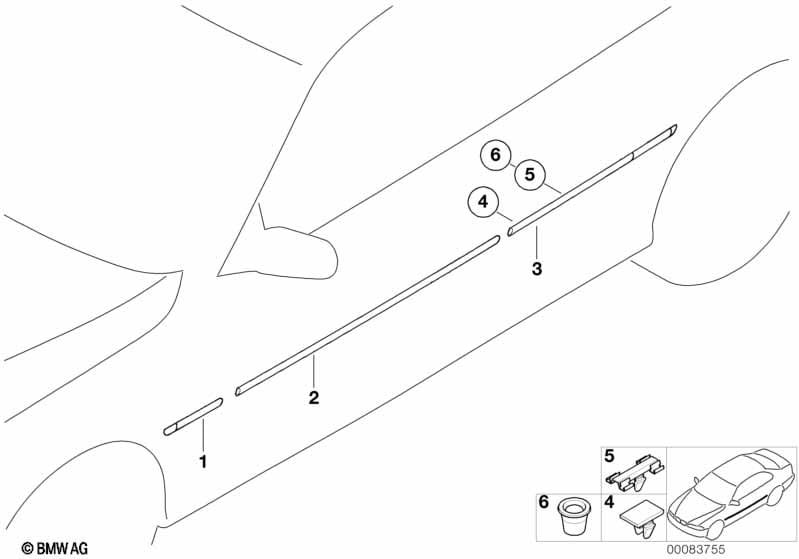

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding fender front left | SCHWARZ | 1 | 51138208447 | $21.56 | Shop at ECS Tuning | ||||
| 01 | Moulding fender front right | SCHWARZ | 1 | 51138208448 | $21.56 | Shop at ECS Tuning | ||||
| 02 | Moulding door front left | SCHWARZ | 1 | 51138208449 | $43.16 | Shop at ECS Tuning | ||||
| 02 | Moulding door front right | SCHWARZ | 1 | 51138208450 | $43.16 | Shop at ECS Tuning | ||||
| 03 | Moulding door rear left | SCHWARZ | 1 | 51138208451 | $40.97 | Shop at ECS Tuning | ||||
| 03 | Moulding door rear right | SCHWARZ | 1 | 51138208452 | $40.97 | Shop at ECS Tuning | ||||
| 04 | Clamp | X | 51138231179 | $0.61 | Shop at ECS Tuning | |||||
| 05 | Clamp | X | 51138231130 | $0.76 | Shop at ECS Tuning | |||||
| 06 | Grommet | X | 51131960127 | $0.23 | Shop at ECS Tuning |
