Sound insulating rear for BMW 3 Series E46 M3 (2002)

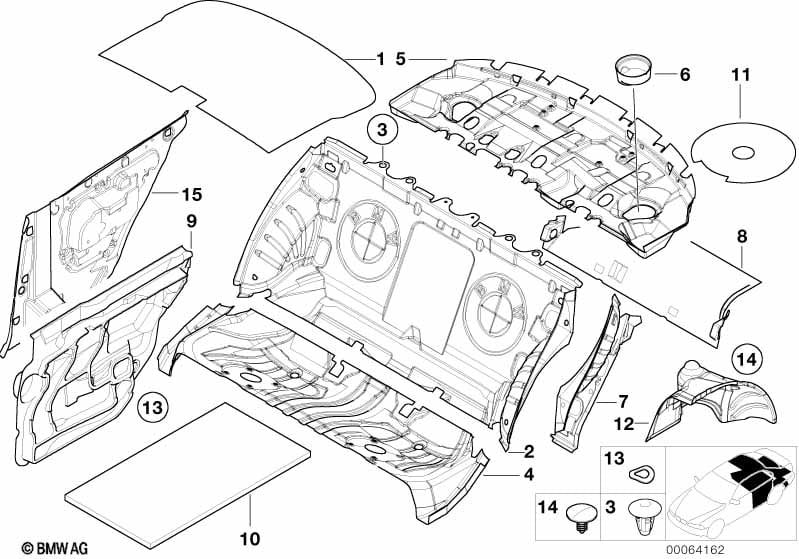

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating roof rear | 1 | 51488229734 | $24.47 | Shop at ECS Tuning | |||||
| 03 | Clip | H=15MM | 10 | 51481924909 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Sound insulation floor rear | 1 | 51488252759 | $52.67 | Shop at ECS Tuning | |||||
| 05 | Sound insulation for upper partit.trunk | 1 | 51488204056 | $152.88 | Shop at ECS Tuning | |||||
| 07 | Sound insulating wheel housing rear left | 1 | 51488204059 | $34.42 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound insulating wheel housing rear rig. | 1 | 51488204060 | $34.42 | Shop at ECS Tuning | |||||
| 08 | Sound insulating trunk floor | 1 | 51488204049 | $48.35 | Shop at ECS Tuning | |||||
| 10 | Sound deadener | 1160X700MM | 1 | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 11 | anti-drone liner, spare-wheel recess | 1 | 51488160470 | $4.50 | ENDED | Shop at ECS Tuning | ||||
| 14 | Clip | D=30MM | 8 | 51488245867 | $0.35 | Shop at ECS Tuning | ||||
| 15 | Sound insulating lateral trim panel left | 1 | 51488204047 | $36.51 | ENDED | Shop at ECS Tuning | ||||
| 15 | Sound insulating lateral trim panelrigh | 1 | 51488204048 | $36.51 | Shop at ECS Tuning |
