Exterior trim / grill for BMW 3 Series E46 318i (2003)

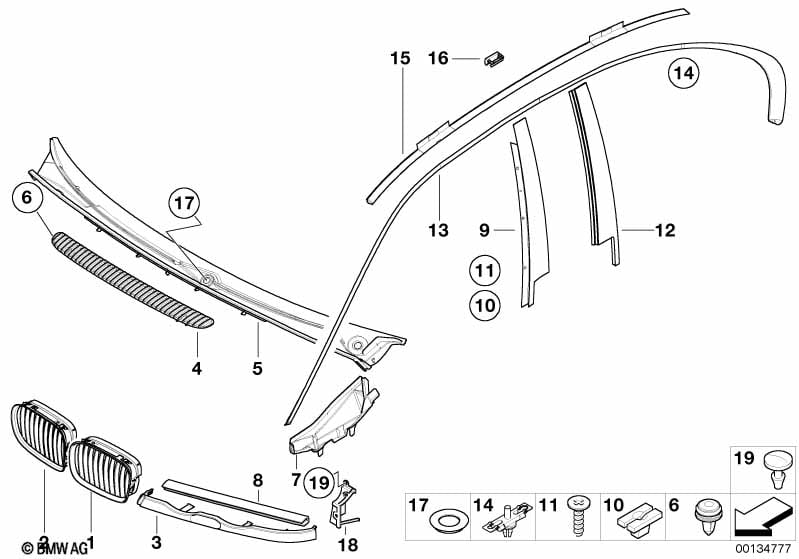

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille left | SCHWARZ | 1 | 09/2001 | 51137030545 | $43.38 | Shop at ECS Tuning | |||
| 01 | Grille left | CHROM | 1 | 09/2001 | 51137042961 | $64.00 | Shop at ECS Tuning | |||
| 02 | Grille right | SCHWARZ | 1 | 09/2001 | 51137030546 | $43.38 | Shop at ECS Tuning | |||
| 02 | Grille right | CHROM | 1 | 09/2001 | 51137042962 | $64.00 | Shop at ECS Tuning | |||
| 03 | trim panel left, painted | CODE - UNI/MET. | 1 | 09/2001 | 51130030406 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | trim panel right, painted | CODE - UNI/MET. | 1 | 09/2001 | 51130030407 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Cover, primed, left | 1 | 09/2001 | 51137043409 | $37.17 | Shop at ECS Tuning | ||||
| 03 | Cover, primed, right | 1 | 09/2001 | 51137043410 | $37.17 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 03 | trim panel left, painted | CODE - UNI/MET. | 1 | 09/2001 | 51130030404 | $129.46 | ENDED | Shop at ECS Tuning | ||
| 03 | trim panel right, painted | CODE - UNI/MET. | 1 | 09/2001 | 51130030405 | $129.46 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover, primed, left | 1 | 09/2001 | 51137043407 | $37.17 | Shop at ECS Tuning | ||||
| 03 | Cover, primed, right | 1 | 09/2001 | 51137043408 | $37.17 | Shop at ECS Tuning | ||||
| 04 | Finisher | SCHWARZ | 1 | 01/2002 | 51137075324 | $22.02 | Shop at ECS Tuning | |||
| 04 | Finisher | SCHWARZ | 1 | 04/2002 | 51137075324 | $22.02 | Shop at ECS Tuning | |||
| 04 | Finisher primed | 1 | 01/2002 | 51137075323 | $22.02 | Shop at ECS Tuning | ||||
| 04 | Finisher primed | 1 | 04/2002 | 51137075323 | $22.02 | Shop at ECS Tuning | ||||
| 04 | Finisher painted | CODE - UNI/MET. | 1 | 01/2002 | 51130030739 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 04 | Finisher painted | CODE - UNI/MET. | 1 | 04/2002 | 51130030739 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 05 | Cover, windshield | 1 | 51718208483 | $57.86 | Shop at ECS Tuning | |||||
| 06 | Clip | 7 | 51718234698 | $0.92 | Shop at ECS Tuning | |||||
| 07 | Covering left | 1 | 51718208479 | $6.00 | Shop at ECS Tuning | |||||
| 07 | Covering right | 1 | 51718208480 | $6.00 | Shop at ECS Tuning | |||||
| 08 | Synthetic strip | L= 484 MM | 1 | 09/2001 | 51137043411 | $2.89 | Shop at ECS Tuning | |||
| 09 | Window frame cover, front left door | 1 | 51338160969 | $39.00 | Shop at ECS Tuning | |||||
| 09 | Window frame cover, front right door | 1 | 51338160970 | $39.00 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 09 | Window frame cover, front left door | GLANZSCHWARZ | 1 | 04/1999 | 51332695283 | $160.66 | Shop at ECS Tuning | |||
| 09 | Window frame cover, front right door | GLANZSCHWARZ | 1 | 04/1999 | 51332695284 | $160.66 | Shop at ECS Tuning | |||
| 10 | Expanding nut | TS 4 | 3 | 51321960663 | $0.32 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | SCHWARZ | 3 | 51337044756 | $0.39 | Shop at ECS Tuning | ||||
| 11 | Countersunk head screw | 3 | 51337068211 | $0.19 | Shop at ECS Tuning | |||||
| 12 | Window frame cover, rear left door | 1 | 51348160971 | $39.00 | Shop at ECS Tuning | |||||
| 12 | Cover, window frame, right rear door | 1 | 51348160972 | $39.00 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 12 | Window frame cover, rear left door | GLANZSCHWARZ | 1 | 51342695289 | $160.66 | Shop at ECS Tuning | ||||
| 12 | Cover, window frame, right rear door | GLANZSCHWARZ | 1 | 51342695290 | $160.66 | Shop at ECS Tuning | ||||
| 13 | Moulding left | SCHWARZ | 1 | 51138208499 | $134.94 | ENDED | Shop at ECS Tuning | |||
| 13 | Moulding right | SCHWARZ | 1 | 51138208500 | $134.94 | ENDED | Shop at ECS Tuning | |||
| 13 | Moulding left | GLANZSCHWARZ | 1 | 04/1999 | 51132695281 | $416.59 | ENDED | Shop at ECS Tuning | ||
| 13 | Moulding right | GLANZSCHWARZ | 1 | 04/1999 | 51132695282 | $416.59 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 13 | Moulding left | CHROM | 1 | 51138208501 | $170.40 | ENDED | Shop at ECS Tuning | |||
| 13 | Moulding right | CHROM | 1 | 51138208502 | $170.40 | ENDED | Shop at ECS Tuning | |||
| 14 | Clamp | 30 | 51138204858 | $1.66 | Shop at ECS Tuning | |||||
| 15 | Roof molding left | SCHWARZ | 1 | 51138201049 | $73.64 | Shop at ECS Tuning | ||||
| 15 | Roof molding right | SCHWARZ | 1 | 51138201050 | $73.64 | Shop at ECS Tuning | ||||
| 15 | Roof molding prime-coated left | 1 | 51138208497 | $68.17 | Shop at ECS Tuning | |||||
| 15 | Roof molding prime-coated right | 1 | 51138208498 | $68.17 | Shop at ECS Tuning | |||||
| 15 | Roof molding painted right | CODE - UNI/MET. | 1 | 51139071684 | $244.40 | ENDED | Shop at ECS Tuning | |||
| 15 | Roof molding painted left | CODE - UNI/MET. | 1 | 51139071685 | $244.40 | ENDED | Shop at ECS Tuning | |||
| PAINTED PARTS CAN BE RETROFITTED |
||||||||||
| 15 | Roof molding prime-coated left | 1 | 51138208497 | $68.17 | Shop at ECS Tuning | |||||
| 15 | Roof molding prime-coated right | 1 | 51138208498 | $68.17 | Shop at ECS Tuning | |||||
| 15 | Roof molding painted right | CODE - UNI/MET. | 1 | 51139071684 | $244.40 | ENDED | Shop at ECS Tuning | |||
| 15 | Roof molding painted left | CODE - UNI/MET. | 1 | 51139071685 | $244.40 | ENDED | Shop at ECS Tuning | |||
| 16 | Fixing clamp right | NATUR | 7 | 51138189020 | $0.55 | Shop at ECS Tuning | ||||
| 16 | Fixing clamp left | SCHWARZ | 7 | 51138208503 | $0.55 | Shop at ECS Tuning | ||||
| 17 | Gasket | 2 | 51718233437 | $1.72 | Shop at ECS Tuning | |||||
| 18 | Bracket, left direction indicator light | 1 | 09/2001 | 63136914763 | $5.83 | Shop at ECS Tuning | ||||
| 18 | Bracket, right direction indicator light | 1 | 09/2001 | 63136914764 | $5.83 | Shop at ECS Tuning | ||||
| 19 | Blind rivet | 4 | 09/2001 | 63137055874 | $0.42 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Exterior trim / grill?
- This technical diagram illustrates the Exterior trim / grill within the Vehicle trim group for the 3 Series E46 318i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Grille left (Part #51137030545).
- Which models use the hardware listed in this Exterior trim / grill?
- The hardware and components featured in the Exterior trim / grill are specific to the 3 Series E46 318i produced during 2003. These technical specifications ensure that parts like the Grille left (51137030545) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exterior trim / grill assembly?
- Each item in the Exterior trim / grill corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Grille left by locating its position on the schematic, which then links to the official BMW part number 51137030545 for the Vehicle trim section.
