Front panel for BMW 3 Series E46 323i (2000)

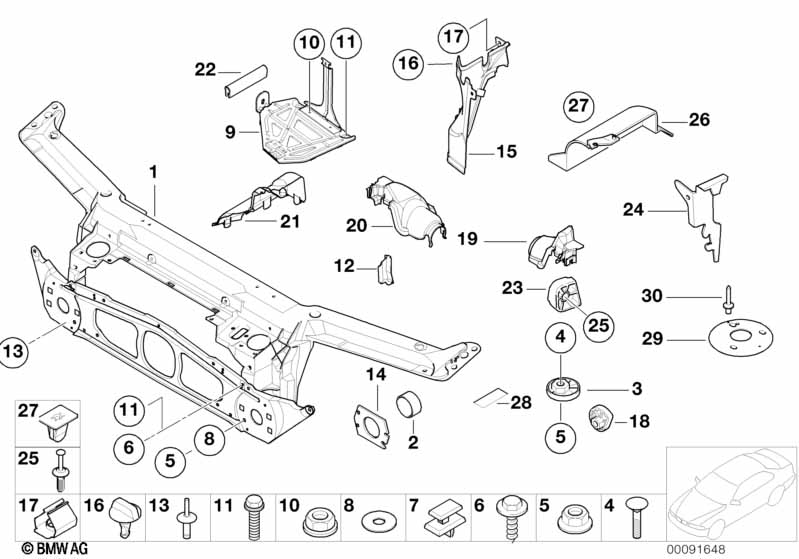

This Front panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front panel | 1 | 51717111691 | $301.97 | Shop at ECS Tuning | |||||
| 02 | Cap, shock absorber | 2 | 51118162553 | $2.54 | Shop at ECS Tuning | |||||
| 03 | eccentric, engine-compartment lid | 2 | 02/2001 | 51718208927 | $1.35 | Shop at ECS Tuning | ||||
| 04 | Saucer-head screw | M6X35-8.8-ZNS | 2 | 02/2001 | 07119900755 | $0.47 | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M6 | 2 | 02/2001 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 05 | Hex nut with plate | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Hex head screw | ST6,3X16-Z2 | 4 | 17111709442 | $0.55 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | 2 | 51247035332 | $0.52 | Shop at ECS Tuning | |||||
| 08 | Washer | A8,4X25 | 6 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M6X20-U2-8.8 | 4 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 12 | cover, module carrier left | 1 | 51718201161 | $1.83 | Shop at ECS Tuning | |||||
| 13 | Rivet | 4,8-4A | 4 | 07129948781 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Spacer plate | 1.0MM | 2 | 51718245775 | $3.27 | Shop at ECS Tuning | ||||
| 15 | bulkhead engine compartment top left | 1 | 51718202799 | $38.82 | Shop at ECS Tuning | |||||
| 16 | Lock | 2 | 51718204904 | $0.65 | Shop at ECS Tuning | |||||
| 16 | Lock | 2 | 51718215962 | $0.69 | Shop at ECS Tuning | |||||
| 17 | Clamp | 1 | 51718204921 | $0.58 | Shop at ECS Tuning | |||||
| 24 | Support left | 1 | 51718203397 | $9.22 | Shop at ECS Tuning | |||||
| 24 | Support right | 1 | 51718203398 | $9.22 | Shop at ECS Tuning | |||||
| 25 | Expanding rivet | 2 | 51111964186 | $0.37 | Shop at ECS Tuning | |||||
| 25 | Expanding rivet | 2 | 51247035332 | $0.52 | Shop at ECS Tuning | |||||
| 28 | Left protection foil | 1 | 51118128363 | ENDED | Shop at ECS Tuning | |||||
| 28 | Right protection foil | 1 | 52108128364 | ENDED | Shop at ECS Tuning | |||||
| 29 | Reinforcement, supporting bearing | 2 | 51717036781 | $11.85 | Shop at ECS Tuning | |||||
| 30 | Blind rivet | SCHWARZ | 2 | 54128144789 | $0.56 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323i Front panel?
- This technical diagram illustrates the Front panel within the Vehicle trim group for the 3 Series E46 323i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Front panel (Part #51717111691).
- Which models use the hardware listed in this Front panel?
- The hardware and components featured in the Front panel are specific to the 3 Series E46 323i produced during 2000. These technical specifications ensure that parts like the Front panel (51717111691) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front panel assembly?
- Each item in the Front panel corresponds to the numbered list below the illustration. For the 3 Series E46 323i, you can identify the Front panel by locating its position on the schematic, which then links to the official BMW part number 51717111691 for the Vehicle trim section.
