Battery tray for BMW 3 Series E46 M3 (2002)

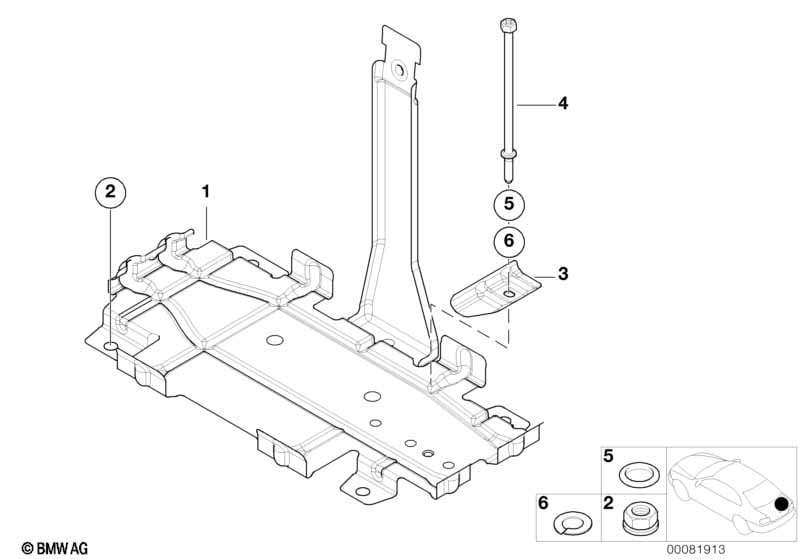

This Battery tray technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery tray | 1 | 51718237364 | $27.87 | Shop at ECS Tuning | |||||
| 02 | Combination nut | 5 | 07147305178 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Battery tray?
- This technical diagram illustrates the Battery tray within the Vehicle trim group for the 3 Series E46 M3 produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Battery tray (Part #51718237364).
- Which models use the hardware listed in this Battery tray?
- The hardware and components featured in the Battery tray are specific to the 3 Series E46 M3 produced during 2002. These technical specifications ensure that parts like the Battery tray (51718237364) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery tray assembly?
- Each item in the Battery tray corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Battery tray by locating its position on the schematic, which then links to the official BMW part number 51718237364 for the Vehicle trim section.
