Wheelarch trim for BMW 3 Series E46 323i (2000)

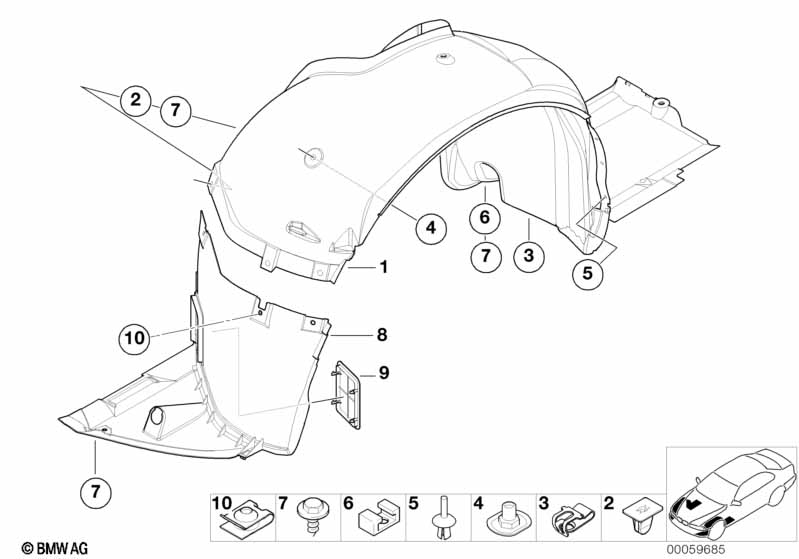

This Wheelarch trim technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, wheel housing, front left | 1 | 51717039677 | $58.17 | Shop at ECS Tuning | |||||
| 01 | Cover, wheel housing, front right | 1 | 51717039678 | $58.17 | Shop at ECS Tuning | |||||
| 02 | Expanding nut | TS 4,2 - TS 4,8 | 10 | 51718242741 | $0.32 | Shop at ECS Tuning | ||||
| 03 | Clip | 1 | 51717195796 | $1.44 | Shop at ECS Tuning | |||||
| 04 | Hexagon nut with collar | 2 | 07147154227 | $0.62 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | 6 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 06 | Prestol-cage | ST4,8-2 | 6 | 07129904323 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST4,8X16-ZNS3 | 16 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hex head screw with washer | ST4,8X16MM | 18 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Covering left | 1 | 51718193811 | $45.57 | Shop at ECS Tuning | |||||
| 08 | Covering right | 1 | 51718193812 | $45.57 | Shop at ECS Tuning | |||||
| For vehicles with Aerodynamics package |
S716A=Yes |
|||||||||
| 08 | Covering left | 1 | 51718265467 | $45.57 | Shop at ECS Tuning | |||||
| 08 | Covering right | 1 | 51718265468 | $45.57 | Shop at ECS Tuning | |||||
| 10 | Body nut | ST4,8-9-ZNS3 | 4 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
