Storing partition cover for BMW 3 Series E46 318i (2004)

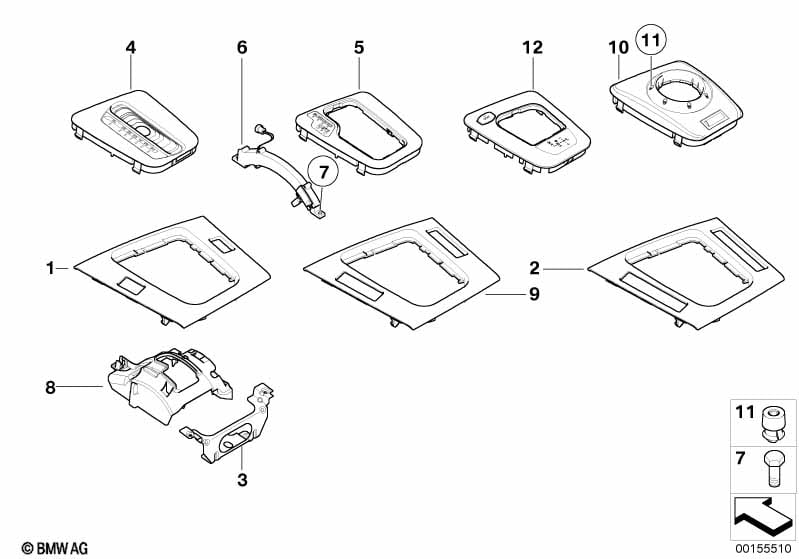

This Storing partition cover technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Depositing box bottom panel | SIEBLACK GRAU | 1 | 51167052072 | $31.81 | Shop at ECS Tuning | ||||
| 01 | Depositing box bottom panel | GRAPHIT MATT | 1 | 51168211465 | $30.68 | Shop at ECS Tuning | ||||
| 01 | Depositing box bottom panel | MATTCHROM | 1 | 51168234260 | $61.03 | Shop at ECS Tuning | ||||
| 01 | Depositing box bottom panel | SCHWARZ HOCHGL. | 1 | 51168234708 | $32.56 | Shop at ECS Tuning | ||||
| 01 | Depositing box bottom panel | GRAU HOCHGLANZ | 1 | 51168234712 | $32.56 | Shop at ECS Tuning | ||||
| 01 | Depositing box bottom panel | BEIGE HOCHGLANZ | 1 | 51168234714 | $32.56 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Depositing box bottom panel | TITAN II | 1 | 09/2001 | 51167052066 | $34.76 | Shop at ECS Tuning | |||
| For vehicles with Luxus equipment |
S772A=Yes |
|||||||||
| 01 | Bottom panel, storage partition, alumin. | BLACK CUBE | 1 | 51167830197 | $97.00 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 01 | Bottom panel, storage partition, alumin. | SÄULEN | 1 | 09/2001 | 51167052060 | $97.79 | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S435A=Yes |
|||||||||
| 01 | Bottom panel depositing box wood | AHORN HELL | 1 | 51168239117 | $88.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Bottom panel depositing box wood | BIRKE | 1 | 09/2001 | 51167052042 | $88.50 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 01 | Bottom panel, storage partition, alumin. | SILVER CUBE | 1 | 09/2002 | 51167896086 | $126.30 | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S438A=Yes |
|||||||||
| 01 | Bottom panel depositing box wood | MYRTE | 1 | 51168208718 | $94.80 | Shop at ECS Tuning | ||||
| For vehicles with Leather, Chameleon or Fabric/"Scritto" leather |
V3=Yes V8=Yes |
|||||||||
| 01 | Depositing box bottom panel | MOONGREY | 1 | 03/2003 | 51167115241 | $29.38 | Shop at ECS Tuning | |||
| 02 | Depositing box bottom panel | TITAN II | 1 | 09/2001 | 51167052068 | $35.75 | Shop at ECS Tuning | |||
| For vehicles with Window lifts,electric,front/rear |
S411A=Yes |
|||||||||
| 02 | Depositing box bottom panel | GRAPHIT MATT | 1 | 51168209372 | $30.68 | Shop at ECS Tuning | ||||
| 02 | Depositing box bottom panel | MATTCHROM | 1 | 51168234273 | $44.75 | Shop at ECS Tuning | ||||
| 02 | Depositing box bottom panel | SCHWARZ HOCHGL. | 1 | 51168234722 | $32.56 | Shop at ECS Tuning | ||||
| 02 | Depositing box bottom panel | GRAU HOCHGLANZ | 1 | 51168234724 | $32.56 | ENDED | Shop at ECS Tuning | |||
| 02 | Depositing box bottom panel | BEIGE HOCHGLANZ | 1 | 51168234726 | $32.56 | +core | Shop at ECS Tuning | |||
| 02 | Depositing box bottom panel | SIEBLACK GRAU | 1 | 09/2001 | 51167052074 | $76.13 | Shop at ECS Tuning | |||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 02 | Bottom panel, storage partition, alumin. | CUBE SILVER | 1 | 09/2002 | 51167896088 | $126.30 | Shop at ECS Tuning | |||
| For vehicles with Window lifts,electric,front/rear or Fine wood trim |
S411A=Yes S435A=Yes |
|||||||||
| 02 | Bottom panel depositing box wood | BIRKE | 1 | 09/2001 | 51167052056 | $94.80 | Shop at ECS Tuning | |||
| For vehicles with Window lifts,electric,front/rear and Fine wood trim |
S411A=Yes S435A=Yes |
|||||||||
| 02 | Bottom panel depositing box wood | AHORN HELL | 1 | 51168239121 | $94.80 | Shop at ECS Tuning | ||||
| For vehicles with Window lifts,electric,front/rear and Luxus equipment |
S411A=Yes S772A=Yes |
|||||||||
| 02 | Bottom panel, storage partition, alumin. | BLACK CUBE | 1 | 51167830199 | $97.00 | Shop at ECS Tuning | ||||
| For vehicles with Window lifts,electric,front/rear or Interior trim finishers, aluminium |
S411A=Yes S426A=Yes |
|||||||||
| 02 | Bottom panel, storage partition, alumin. | SÄULEN | 1 | 09/2001 | 51167052062 | $98.50 | Shop at ECS Tuning | |||
| For vehicles with Leather, Chameleon or Fabric/"Scritto" leather |
V3=Yes V8=Yes |
|||||||||
| 02 | Depositing box bottom panel | MOONGREY | 1 | 03/2003 | 51167115249 | $29.38 | Shop at ECS Tuning | |||
| For vehicles with Window lifts,electric,front/rear and Fine wood trim |
S411A=Yes S438A=Yes |
|||||||||
| 02 | Bottom panel depositing box wood | MYRTE | 1 | 51168209456 | $96.30 | Shop at ECS Tuning | ||||
| 03 | Bracket center | 1 | 51168196113 | $39.33 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 04 | Trim cover, 4th gear preselect lever | 1 | 51168196114 | $70.43 | Shop at ECS Tuning | |||||
| 05 | Preselect.lever cover f steptronic | 1 | 09/2001 | 51167059413 | Shop at ECS Tuning | |||||
| 05 | Preselect.lever cover f steptronic | 1 | 10/2001 | 51167059413 | Shop at ECS Tuning | |||||
| 07 | Screw | M3.5X10MM | 2 | 07119910393 | $0.22 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 08 | Protection cap,gear shift lug steptronic | 1 | 51168238583 | $4.07 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
