Floor mats, velours for BMW 2 Series F46 Gran Tourer 216d (2018)

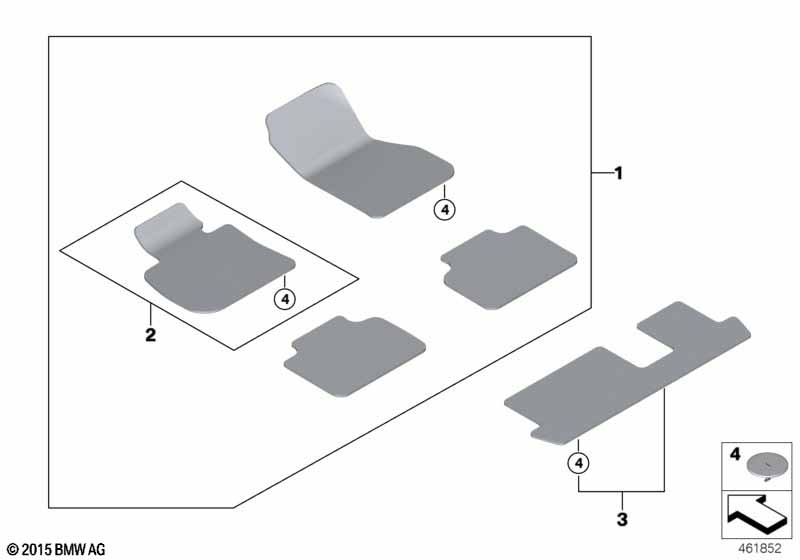

This Floor mats, velours technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of floor mats Velours | ANTHRAZIT | 1 | 51477410323 | Shop at ECS Tuning | |||||
| For vehicles with canberra-beige |
CY=Yes |
|||||||||
| 01 | Set of floor mats Velours | CANBERRABEIGE | 1 | 51477410320 | Shop at ECS Tuning | |||||
| 02 | Floor mat velours driver side | ANTHRAZIT | 1 | 51477390345 | Shop at ECS Tuning | |||||
| For vehicles with canberra-beige |
CY=Yes |
|||||||||
| 02 | Floor mat velours driver side | CANBERRABEIGE | 1 | 51477372213 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row |
S4UBA=Yes |
|||||||||
| 03 | Footmat, velours, for 3rd row seats | ANTHARZIT | 1 | 51477398196 | Shop at ECS Tuning | |||||
| For vehicles with 3rd seat row and canberra-beige |
S4UBA=Yes CY=Yes |
|||||||||
| 03 | Footmat, velours, for 3rd row seats | CANBERRABEIGE | 1 | 51477398197 | Shop at ECS Tuning | |||||
| 04 | Hook&loop element with bayonet fastener | D62MM/L14MM | 7 | 07149166609 | Shop at ECS Tuning | |||||
