Carrier, rear for BMW 3 Series E46 318i (2001)
This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, bumper rear | 4 KM/H | 1 | 51128195314 | $180.55 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 02 | Carrier, bumper rear | 8 KM/H = 5 MPH | 1 | 51128195324 | $198.63 | ENDED | Shop at ECS Tuning | |||
| 03 | Shock absorber, rear right | 1 | 09/2001 | 51127055336 | $90.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shock absorber, rear left | 1 | 09/2001 | 51127055335 | $90.83 | Shop at ECS Tuning | ||||
| 03 | Shock absorber, rear left | 1 | 09/2001 | 51127055335 | $90.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shock absorber, rear right | 1 | 09/2001 | 51127055336 | $90.83 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Towing hitch, detachable |
L802A=Yes S235A=No |
|||||||||

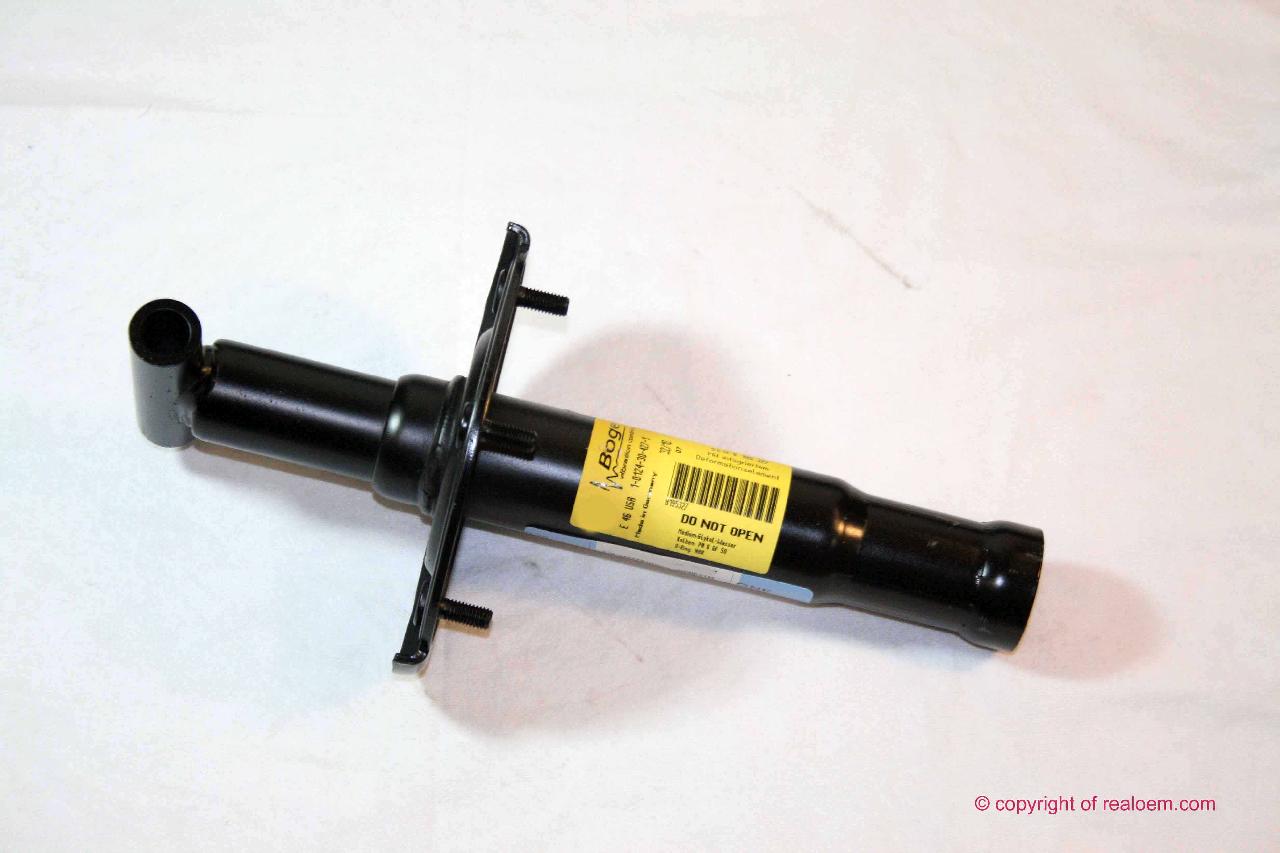

| 04 | Shock absorber, rear left | 8 KM/H = 5 MPH | 1 | 09/2001 | 51128195327 | $101.23 | Shop at ECS Tuning | |||
| 04 | Shock absorber, rear right | 8 KM/H = 5 MPH | 1 | 09/2001 | 51128195328 | $101.23 | Shop at ECS Tuning | |||
| 05 | Gasket | 2 | 51128254202 | $1.33 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable |
S235A=No |
|||||||||
| 06 | Cap | 2 | 51121938266 | $0.57 | Shop at ECS Tuning | |||||
| 07 | Fillister-head screw | 2 | 51117070198 | Shop at ECS Tuning | ||||||
| 08 | Hex nut with plate | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
