Interior trim finishers for BMW 3 Series E46 316i (2004)

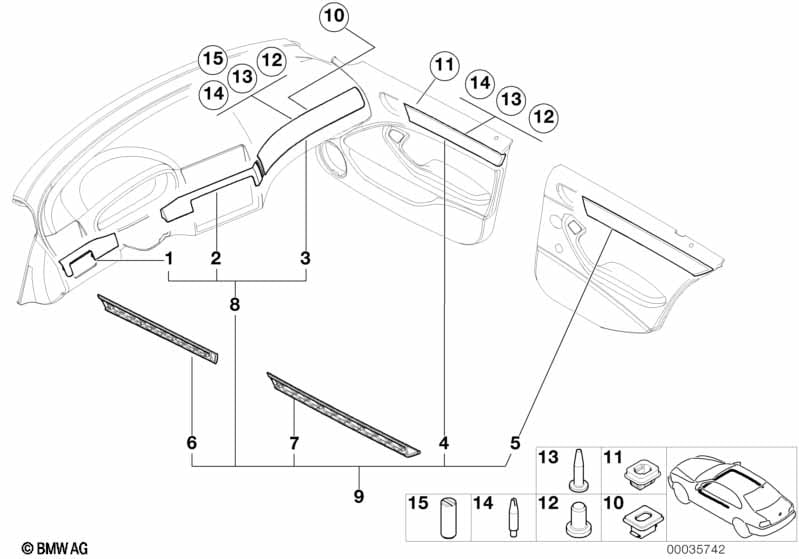

This Interior trim finishers technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Fine wood trim and Fine wood trim |
S435A=No S438A=No |
||||||||
| 01 | Decorative strip, dashboard right | GRAPHIT MATT | 1 | 51458214670 | Shop at ECS Tuning | |||||
| 01 | Decorative strip, dashboard right | SIEBLACK GRAU | 1 | 09/2001 | 51457047125 | +core | Shop at ECS Tuning | |||
| 01 | Decor strip,titan. II,instr. panel right | TITAN II | 1 | 09/2001 | 51457047126 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 01 | Decorative strip, alum., I-panel, right | SILVER CUBE | 1 | 09/2002 | 51457895410 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 01 | Decorative strip, alum., I-panel, right | ALU SÄULEN | 1 | 03/2001 | 51457047135 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Luxus equipment |
S772A=Yes |
|||||||||
| 01 | Decorative strip, alum., I-panel, right | BLACK CUBE | 1 | 51457830186 | +core | Shop at ECS Tuning | ||||
| For vehicles with Lifestyle Edition or Exclusive Edition |
S722A=Yes S723A=Yes |
|||||||||
| 01 | Decorative strip, dashboard right | MOONGREY | 1 | 03/2003 | 51457116975 | ENDED | Shop at ECS Tuning | |||
| 02 | Decorative strip, dashboard center | GRAPHIT MATT | 1 | 51458214668 | Shop at ECS Tuning | |||||
| 02 | Decorative strip, dashboard center | SIEBLACK GRAU | 1 | 09/2001 | 51457047127 | +core | Shop at ECS Tuning | |||
| 02 | Decor strip,titan. II,instr.panel center | TITAN II | 1 | 09/2001 | 51457047128 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 02 | Decorative strip, alum., I-panel, center | SILVER CUBE | 1 | 09/2002 | 51457895412 | +core | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 02 | Decorative strip, alum., I-panel, center | ALU SÄULEN | 1 | 03/2001 | 51457047134 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Luxus equipment |
S772A=Yes |
|||||||||
| 02 | Decorative strip, alum., I-panel, center | BLACK CUBE | 1 | 51457830188 | +core | Shop at ECS Tuning | ||||
| For vehicles with Lifestyle Edition or Exclusive Edition |
S722A=Yes S723A=Yes |
|||||||||
| 02 | Decorative strip, dashboard center | MOONGREY | 1 | 03/2003 | 51457116977 | ENDED | Shop at ECS Tuning | |||
| 03 | Decorative strip, dashboard left | GRAPHIT MATT | 1 | 51458214669 | Shop at ECS Tuning | |||||
| 03 | Decorative strip, dashboard left | SIEBLACK GRAU | 1 | 09/2001 | 51457047123 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Decor strip,titanium II,instr. panel lft | TITAN II | 1 | 09/2001 | 51457047124 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 03 | Decorative strip, alum., I-panel, left | SILVER CUBE | 1 | 09/2002 | 51457895409 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 03 | Decorative strip, alum., I-panel, left | ALU SÄULEN | 1 | 03/2001 | 51457047133 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Luxus equipment |
S772A=Yes |
|||||||||
| 03 | Decorative strip, alum., I-panel, left | BLACK CUBE | 1 | 51417830185 | +core | Shop at ECS Tuning | ||||
| For vehicles with Lifestyle Edition or Exclusive Edition |
S722A=Yes S723A=Yes |
|||||||||
| 03 | Decorative strip, dashboard left | MOONGREY | 1 | 03/2003 | 51457116976 | Shop at ECS Tuning | ||||
| 04 | Decorative strip, door front right | GRAPHIT MATT | 1 | 51418213994 | $24.34 | Shop at ECS Tuning | ||||
| 04 | Decorative strip, door front right | SIEBLACK GRAU | 1 | 09/2001 | 51457047160 | $36.08 | Shop at ECS Tuning | |||
| 04 | Decorative strip, door front right | TITAN II | 1 | 09/2001 | 51457047162 | $24.50 | Shop at ECS Tuning | |||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 04 | Aluminum decor strip, front right door | SILVER CUBE | 1 | 09/2002 | 51417896094 | $108.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 04 | Aluminum decor strip, front right door | ALU SÄULEN | 1 | 03/2001 | 51457047156 | $75.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Luxus equipment |
S772A=Yes |
|||||||||
| 04 | Aluminum decor strip, front right door | BLACK CUBE | 1 | 51417830190 | $108.00 | Shop at ECS Tuning | ||||
| For vehicles with Lifestyle Edition or Exclusive Edition |
S722A=Yes S723A=Yes |
|||||||||
| 04 | Decorative strip, door front right | MOONGREY | 1 | 03/2003 | 51417120698 | $34.37 | ENDED | Shop at ECS Tuning | ||
| 05 | Decorative strip, door rear right | GRAPHIT MATT | 1 | 51428213996 | $24.34 | Shop at ECS Tuning | ||||
| 05 | Decorative strip, door rear right | SIEBLACK GRAU | 1 | 09/2001 | 51457047164 | $36.08 | ENDED | Shop at ECS Tuning | ||
| 05 | Decorative strip, door rear right | TITAN II | 1 | 09/2001 | 51457047166 | $24.50 | Shop at ECS Tuning | |||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 05 | Aluminum decor strip, rear right door | SILVER CUBE | 1 | 09/2002 | 51427896096 | $108.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 05 | Aluminum decor strip, rear right door | ALU SÄULEN | 1 | 03/2001 | 51457047158 | $75.00 | Shop at ECS Tuning | |||
| For vehicles with Luxus equipment |
S772A=Yes |
|||||||||
| 05 | Aluminum decor strip, rear right door | BLACK CUBE | 1 | 51427830192 | $108.00 | +core | Shop at ECS Tuning | |||
| For vehicles with Lifestyle Edition or Exclusive Edition |
S722A=Yes S723A=Yes |
|||||||||
| 05 | Decorative strip, door rear right | MOONGREY | 1 | 03/2003 | 51427120700 | $34.37 | Shop at ECS Tuning | |||
| 06 | Decorative strip, door front left | GRAPHIT MATT | 1 | 51418213993 | $24.34 | Shop at ECS Tuning | ||||
| 06 | Decorative strip, door front left | SIEBLACK GRAU | 1 | 09/2001 | 51457047159 | $36.08 | Shop at ECS Tuning | |||
| 06 | Decorative strip, door front left | TITAN II | 1 | 09/2001 | 51457047161 | $24.50 | Shop at ECS Tuning | |||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 06 | Aluminum decor strip, front left door | SILVER CUBE | 1 | 09/2002 | 51417896093 | $108.00 | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 06 | Aluminum decor strip, front left door | ALU SÄULEN | 1 | 03/2001 | 51457047155 | $75.00 | Shop at ECS Tuning | |||
| For vehicles with Luxus equipment |
S772A=Yes |
|||||||||
| 06 | Aluminum decor strip, front left door | BLACK CUBE | 1 | 51417830189 | $108.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Lifestyle Edition or Exclusive Edition |
S722A=Yes S723A=Yes |
|||||||||
| 06 | Decorative strip, door front left | MOONGREY | 1 | 03/2003 | 51417120697 | $34.37 | Shop at ECS Tuning | |||
| 07 | Decorative strip, door rear left | GRAPHIT MATT | 1 | 51428213995 | $24.34 | Shop at ECS Tuning | ||||
| 07 | Decorative strip, door rear left | SIEBLACK GRAU | 1 | 09/2001 | 51457047163 | $36.08 | +core | Shop at ECS Tuning | ||
| 07 | Decorative strip, door rear left | TITAN II | 1 | 09/2001 | 51457047165 | $24.50 | Shop at ECS Tuning | |||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 07 | Aluminum decor strip, rear left door | SILVER CUBE | 1 | 09/2002 | 51427896095 | $108.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 07 | Aluminum decor strip, rear left door | ALU SÄULEN | 1 | 03/2001 | 51457047157 | $75.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Luxus equipment |
S772A=Yes |
|||||||||
| 07 | Aluminum decor strip, rear left door | BLACK CUBE | 1 | 51427830191 | $108.00 | +core | Shop at ECS Tuning | |||
| For vehicles with Lifestyle Edition or Exclusive Edition |
S722A=Yes S723A=Yes |
|||||||||
| 07 | Decorative strip, door rear left | MOONGREY | 1 | 03/2003 | 51427120699 | $34.37 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 08 | Set of decorative strips, aluminium | SILVER CUBE | 1 | 09/2002 | 51457895406 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Set of decorative strips, aluminium | SILVER CUBE | 1 | 09/2002 | 51417896091 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Luxus equipment |
S772A=Yes |
|||||||||
| 09 | Set of decorative strips, aluminium | BLACK CUBE | 1 | 51417830181 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Insert | ROT | 7 | 04/1998 | 51458266814 | $0.85 | Shop at ECS Tuning | |||
| 11 | Plug-in retainer | 16 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 12 | Threaded bolt | D=6X12 | 16 | 51416976220 | $1.04 | Shop at ECS Tuning | ||||
| 13 | Pin | D=6X25 | 7 | 04/1998 | 51458266808 | $1.02 | Shop at ECS Tuning | |||
| 14 | Threaded bolt | D=6X30 | 23 | 04/1998 | 51458266813 | $1.02 | Shop at ECS Tuning | |||
| 15 | Threaded bush | 23 | 51418233225 | $0.50 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
