Cover door sill / wheel arch for BMW 3 Series E46 330d (2004)

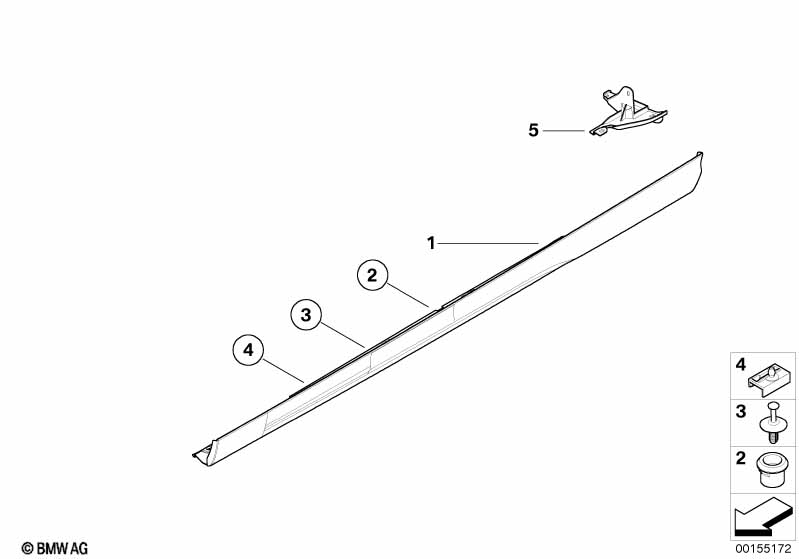

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primed left outer kick panel | 1 | 51718211943 | $144.34 | Shop at ECS Tuning | |||||
| 01 | Primed right door sill trim panel | 1 | 51718211944 | $144.34 | Shop at ECS Tuning | |||||
| 01 | Painted right door sill trim panel | CODE - UNI/MET. | 1 | 51719071632 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Painted left outer kick panel | CODE - UNI/MET. | 1 | 51719071633 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Grommet, green | D=9,1MM | X | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | X | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 04 | Clamp | NATUR | 12 | 51718184574 | $0.58 | Shop at ECS Tuning | ||||
| 05 | Covering left | 1 | 51718219167 | $7.22 | Shop at ECS Tuning | |||||
| 05 | Covering right | 1 | 51718219168 | $7.22 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
