Bumper USA, front for BMW 1502-2002tii 1602 (1971)

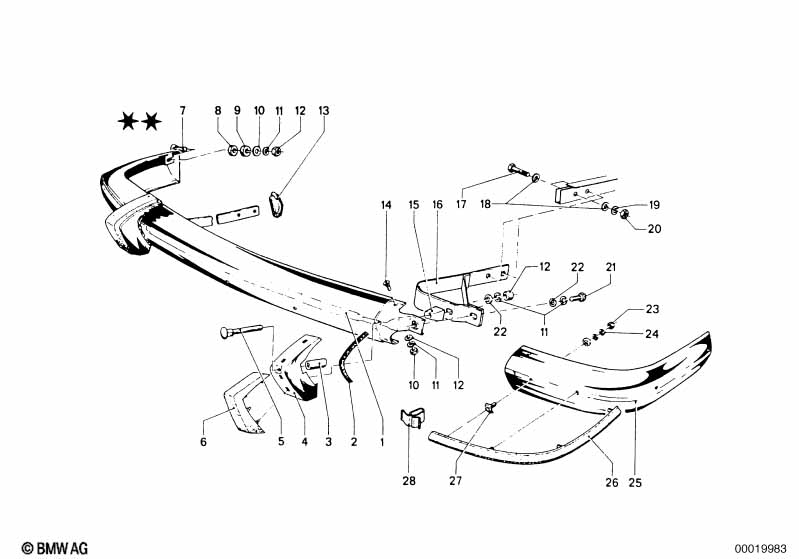

This Bumper USA, front technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper front center | 1 | 51115670000 | $474.18 | Shop at ECS Tuning | |||||
| 02 | Synthetic strip | SCHWARZ | X | 51111808420 | $5.46 | ENDED | Shop at ECS Tuning | |||
| 03 | Spacer sleeve | 1 | 51111823805 | ENDED | Shop at ECS Tuning | |||||
| 03 | Spacer sleeve | 1 | 51111823806 | ENDED | Shop at ECS Tuning | |||||
| 04 | Bumper over-rider | LINKS | 1 | 51111814701 | $121.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Bumper over-rider | RECHTS | 1 | 51111814702 | $121.43 | Shop at ECS Tuning | ||||
| 05 | Saucer-head screw | M8X100 | 2 | 07119910484 | $1.86 | Shop at ECS Tuning | ||||
| 06 | Rubber buffer | 2 | 51111815484 | $22.75 | Shop at ECS Tuning | |||||
| 07 | Saucer-head screw | M8X40 | 2 | 07119910463 | $0.92 | Shop at ECS Tuning | ||||
| 08 | Rubber washer | 4 | 51125071765 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 09 | Washer-gasket | 2 | 51125670140 | $0.50 | Shop at ECS Tuning | |||||
| 10 | Washer | 10-200 HV-ZNNIV | 6 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 11 | Wave washer | 8,4X15-ZNS3 | 10 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Hex nut with plate | M8 | 8 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 13 | Bushing | 2 | 51115470025 | $3.52 | Shop at ECS Tuning | |||||
| 14 | Screw | 2 | 51111804582 | $6.03 | ENDED | Shop at ECS Tuning | ||||
| 15 | Base | 1 | 51115670106 | $20.76 | Shop at ECS Tuning | |||||
| 16 | Bar left | 1 | 51111822063 | $72.74 | Shop at ECS Tuning | |||||
| 16 | Bar right | 1 | 51111822064 | $72.74 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M10X70 | 4 | 31111136250 | $2.95 | ENDED | Shop at ECS Tuning | |||
| 18 | Washer | 10-200 HV-ZNNIV | 8 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 19 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 20 | Hex nut | M10-8-ZNS | 4 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 21 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 22 | Washer | 8,4X24X2-ZNS3 | 4 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 23 | Hex nut | M6-8-ZNNIV SI | 8 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Washer | A6,4-ZNNIV SI | 8 | 07119904202 | Shop at ECS Tuning | |||||
| 25 | Bumper, front left | 1 | 51111815795 | $474.18 | Shop at ECS Tuning | |||||
| 25 | Bumper front right | 1 | 51111815796 | $474.18 | ENDED | Shop at ECS Tuning | ||||
| 26 | Rubber strip, bumper front left | 1 | 51111814697 | $66.20 | Shop at ECS Tuning | |||||
| 26 | Rubber strip, bumper front right | 1 | 51111814698 | $66.20 | Shop at ECS Tuning | |||||
| 27 | Fastener | 2 | 51111815611 | $2.26 | Shop at ECS Tuning | |||||
| 28 | Clip | 6 | 51111826895 | $2.72 | Shop at ECS Tuning |
