Grille for BMW 1502-2002tii 2002 (1972)

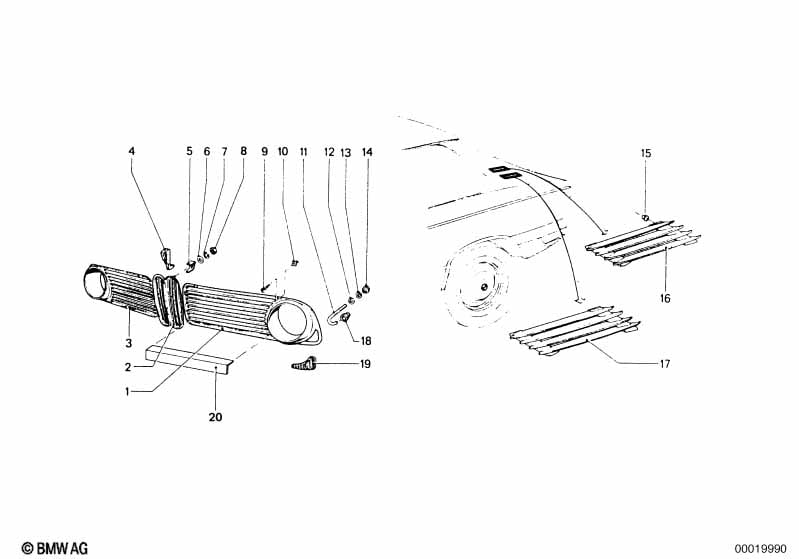

This Grille technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille left | CHROM | 1 | 09/1967 | 08/1973 | 51131808473 | $480.31 | ENDED | Shop at ECS Tuning | |
| only in conjunction with | ||||||||||

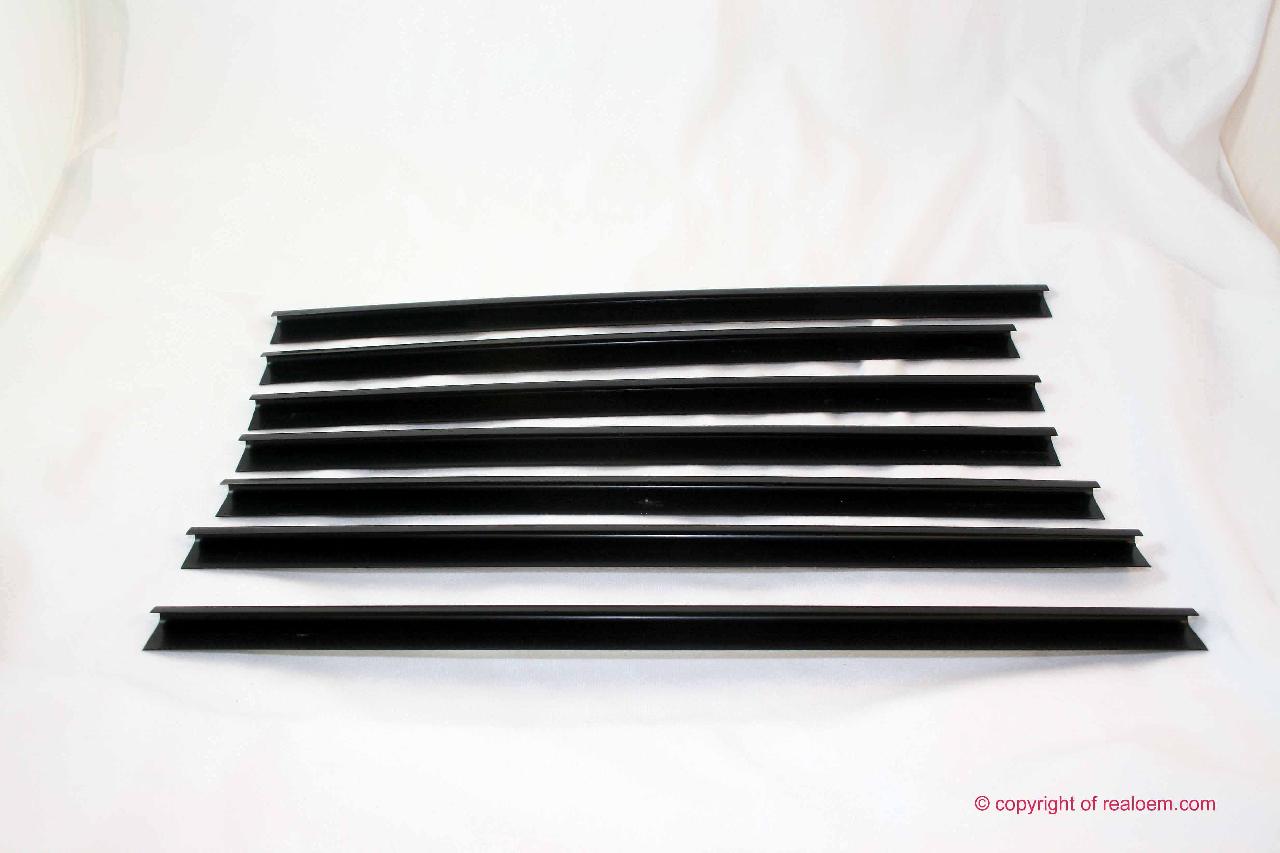

| -- | Covering schwarz | SET | 1 | 09/1967 | 08/1973 | 51131817840 | $97.95 | ENDED | Shop at ECS Tuning | |
| 02 | Grille center | CHROM/SCHWARZ | 1 | 09/1967 | 08/1973 | 51131801577 | $119.49 | Shop at ECS Tuning | ||

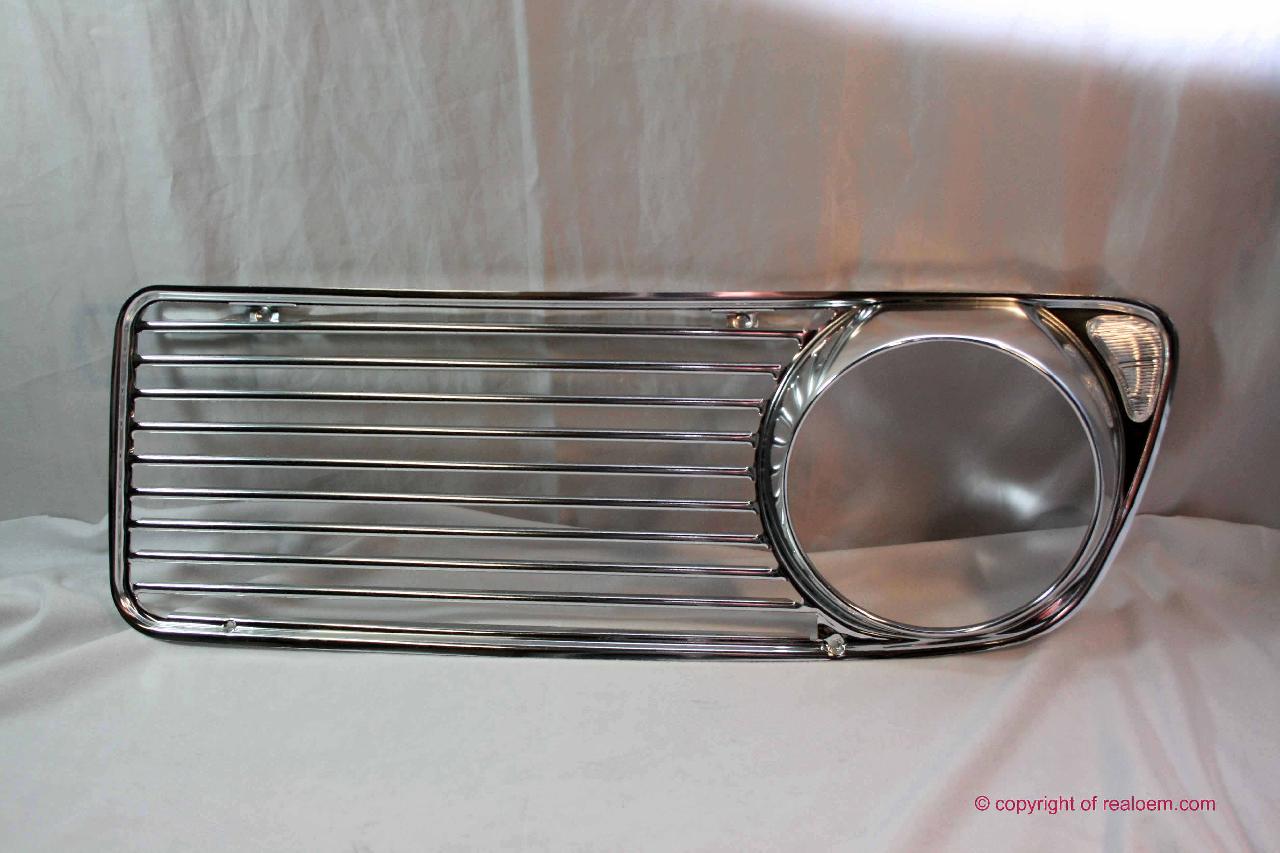

| 03 | Grille right | CHROM | 1 | 09/1967 | 08/1973 | 51131808474 | $480.31 | ENDED | Shop at ECS Tuning | |
| only in conjunction with | ||||||||||
| -- | Covering schwarz | SET | 1 | 09/1967 | 08/1973 | 51131817840 | $97.95 | ENDED | Shop at ECS Tuning | |
| 04 | Spacer sleeve | 2 | 03/1966 | 08/1973 | 51135480114 | $3.54 | ENDED | Shop at ECS Tuning | ||
| 05 | Holder | 2 | 03/1966 | 08/1973 | 51135680124 | $2.84 | ENDED | Shop at ECS Tuning | ||
| 06 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Spring washer | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | M5 | 2 | 07147202368 | Shop at ECS Tuning | |||||
| 09 | Recessed oval head sheet-metal screw | ST3,9X13 | 8 | 03/1966 | 08/1973 | 07119902459 | $1.55 | Shop at ECS Tuning | ||
| 10 | Body nut | B3,9 | 8 | 03/1966 | 08/1973 | 07129925705 | Shop at ECS Tuning | |||
| 11 | Holder | 2 | 51131800715 | $1.61 | ENDED | Shop at ECS Tuning | ||||
| 12 | Tooth washer | A4,3 | 2 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Spring washer | B4 | 2 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Button | 2 | 62128680120 | $1.23 | Shop at ECS Tuning | |||||
| 18 | Grommet | 2 | 03/1966 | 08/1973 | 52208238999 | $0.40 | Shop at ECS Tuning | |||
| 19 | Reflector left | 1 | 03/1966 | 08/1973 | 51135480106 | $3.90 | Shop at ECS Tuning | |||
| 19 | Reflector right | 1 | 03/1966 | 08/1973 | 51135480107 | $3.90 | Shop at ECS Tuning | |||
| 20 | Covering schwarz | SET | 1 | 09/1967 | 08/1973 | 51131817840 | $97.95 | ENDED | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
