Type plate / notice label for BMW 2.5CS-3.0CSL 2.5CS (1975)

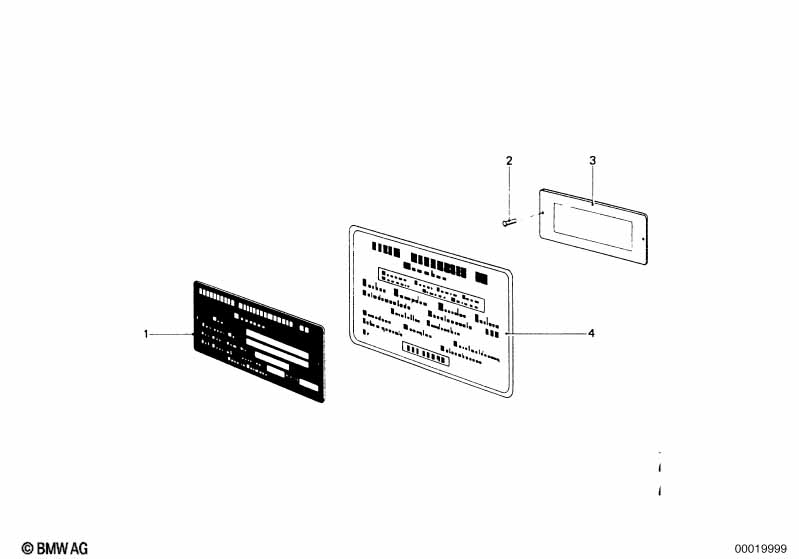

This Type plate / notice label technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Type plate | 1 | 51144631012 | $15.77 | ENDED | Shop at ECS Tuning | ||||
| 02 | Blind rivet | 3,2 2A | 2 | 07129948747 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Label | REIFENLUFTDRUCK | 1 | 51141801526 | $2.33 | ENDED | Shop at ECS Tuning | |||
| 04 | Label | SICHERUNGEN | 1 | 51141831599 | $3.41 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2.5CS Type plate / notice label?
- This technical diagram illustrates the Type plate / notice label within the Vehicle trim group for the 2.5CS-3.0CSL 2.5CS produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Type plate (Part #51144631012).
- Which models use the hardware listed in this Type plate / notice label?
- The hardware and components featured in the Type plate / notice label are specific to the 2.5CS-3.0CSL 2.5CS produced during 1975. These technical specifications ensure that parts like the Type plate (51144631012) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Type plate / notice label assembly?
- Each item in the Type plate / notice label corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2.5CS, you can identify the Type plate by locating its position on the schematic, which then links to the official BMW part number 51144631012 for the Vehicle trim section.
