Glove box for BMW 1502-2002tii 2002ti (1972)

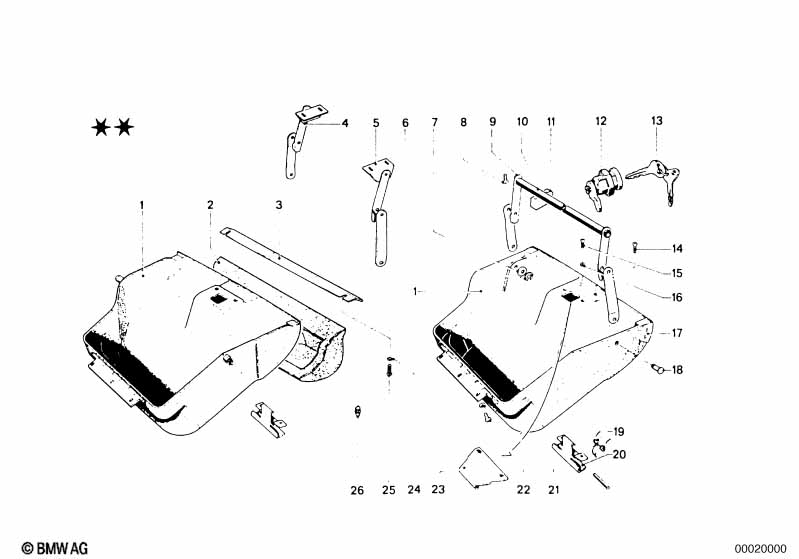

This Glove box technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Supporting bracket | 1 | 51161800710 | ENDED | Shop at ECS Tuning | |||||
| 05 | Supporting bracket | 1 | 51161800709 | ENDED | Shop at ECS Tuning | |||||
| 06 | Set circlip 10 | 4,0 | 2 | 07509064292 | ENDED | Shop at ECS Tuning | ||||
| 07 | Tooth washer | A4,3 | 4 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Csk.fillister head srew | M5X20 | 4 | 07119928497 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Joint link | 1 | 51167480028 | ENDED | Shop at ECS Tuning | |||||
| 10 | Connection pipe | 1 | 51167480029 | ENDED | Shop at ECS Tuning | |||||
| 11 | Bearing | 2 | 51167780024 | ENDED | Shop at ECS Tuning | |||||
| 14 | Fillister head screw | M4X12 | 2 | 07119900692 | $1.80 | Shop at ECS Tuning | ||||
| 15 | Fillister head screw | M4X8 | 2 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 16 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 18 | Bolt | 2 | 51167780030 | ENDED | Shop at ECS Tuning | |||||
| 19 | Retainer spring | 1 | 51161802366 | ENDED | Shop at ECS Tuning | |||||
| 20 | Clutch rel.fork lever | 1 | 51161808872 | ENDED | Shop at ECS Tuning | |||||
| 21 | Wave washer | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 22 | Fillister head screw | M5X10 | 3 | 07119907639 | $0.40 | Shop at ECS Tuning | ||||
| 23 | Notch | 1 | 51161808858 | $2.74 | Shop at ECS Tuning | |||||
| 24 | Hollow washer | 4 | 51211859979 | $0.40 | Shop at ECS Tuning | |||||
| 25 | Recessed oval head sheet-metal screw | ST3,5X16 | 4 | 07119902441 | $3.25 | Shop at ECS Tuning | ||||
| 26 | Rubber buffer | 2 | 51175790035 | $5.97 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002ti Glove box?
- This technical diagram illustrates the Glove box within the Vehicle trim group for the 1502-2002tii 2002ti produced during 1972. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #51161800710).
- Which models use the hardware listed in this Glove box?
- The hardware and components featured in the Glove box are specific to the 1502-2002tii 2002ti produced during 1972. These technical specifications ensure that parts like the Supporting bracket (51161800710) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glove box assembly?
- Each item in the Glove box corresponds to the numbered list below the illustration. For the 1502-2002tii 2002ti, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 51161800710 for the Vehicle trim section.
