Glove box for BMW 1502-2002tii 2002 (1973)

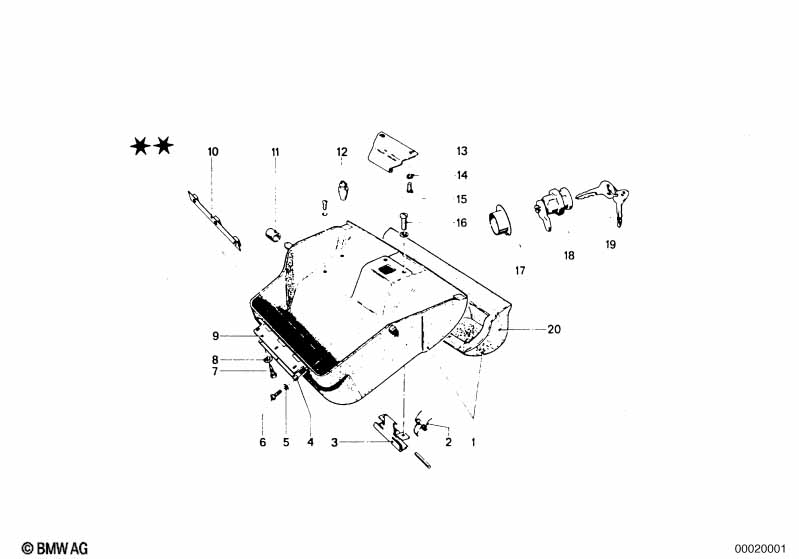

This Glove box technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glove box | 1 | 03/1971 | 07/1977 | 51161809991 | ENDED | Shop at ECS Tuning | |||
| 02 | Retainer spring | 1 | 51161802366 | ENDED | Shop at ECS Tuning | |||||
| 03 | Clutch rel.fork lever | 1 | 51161808872 | ENDED | Shop at ECS Tuning | |||||
| 04 | Bracket | 1 | 51161814999 | ENDED | Shop at ECS Tuning | |||||
| 05 | Washer | 4-200 HV-ZNS3 | 5 | 07119904207 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M4X12 | 3 | 07119913084 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex head screw | ST4,2X13-C | 3 | 07119916804 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Washer | 4-200 HV-ZNS3 | 3 | 07119904207 | Shop at ECS Tuning | |||||
| 09 | Hinge | 1 | 51161809777 | $26.86 | Shop at ECS Tuning | |||||
| 10 | Bracket | 1 | 51161809788 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hose | 2 | 51161808602 | ENDED | Shop at ECS Tuning | |||||
| 12 | Rubber buffer | 2 | 51175790035 | $5.97 | ENDED | Shop at ECS Tuning | ||||
| 13 | Notch | 1 | 51161808858 | $2.74 | Shop at ECS Tuning | |||||
| 14 | Set wave washer 25 | B4 | 2 | 07509064029 | ENDED | Shop at ECS Tuning | ||||
| 15 | Fillister head screw | M4X10-4.8-H | 2 | 07119907616 | $1.07 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw | M4X8 | 2 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 17 | Trim ring | 1 | 03/1971 | 07/1977 | 51161800703 | ENDED | Shop at ECS Tuning | |||
| 18 | Catch with key | 1 | 51161800705 | $39.18 | ENDED | Shop at ECS Tuning | ||||
| 19 | Standard key (blank) | PROFIL SX | X | 03/1971 | 07/1977 | 51246041586 | $6.98 | Shop at ECS Tuning | ||
| 20 | Trim panel | 1 | 03/1971 | 07/1977 | 51161809897 | ENDED | Shop at ECS Tuning |
