Outside mirror for BMW 1502-2002tii 2002 (1976)

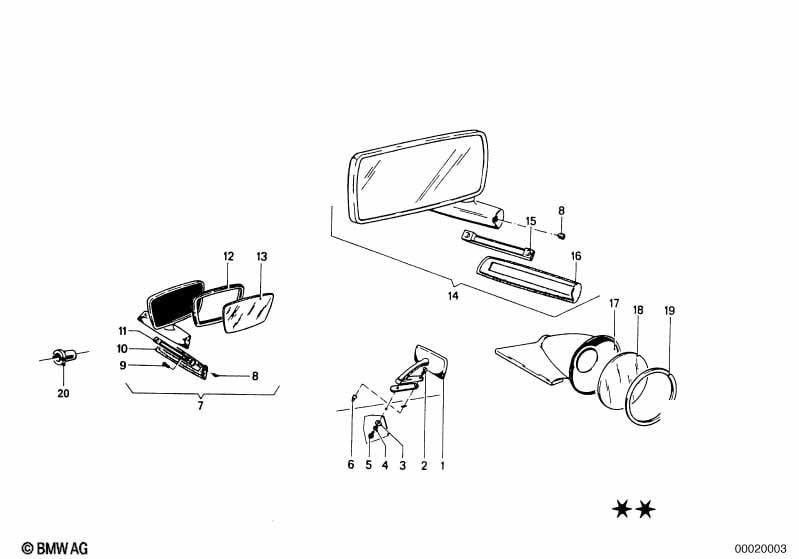

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear view mirror | 1 | 51161801866 | ENDED | Shop at ECS Tuning | |||||
| 02 | Csk.fillister head srew | AM4X22 | 1 | 07119901723 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 04 | Set tooth washer 25 | A6,4 | 1 | 07509064287 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X10-8.8-ZNS3 | 1 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Nut | M4 | 1 | 07129925804 | $1.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Exterior mirror left | TRAPEZ | 1 | 51161804452 | $202.45 | Shop at ECS Tuning | ||||
| 07 | Exterior mirror right | TRAPEZ | 1 | 51161807702 | $202.45 | Shop at ECS Tuning | ||||
| 08 | Grub screw | 1 | 51161808536 | $2.16 | ENDED | Shop at ECS Tuning | ||||
| 09 | Csk.fillister head srew | M4X20 | 2 | 07119928439 | $2.87 | Shop at ECS Tuning | ||||
| 10 | Seal seft | TRAPEZ | 1 | 51161807731 | $12.80 | Shop at ECS Tuning | ||||
| 10 | Seal right | TRAPEZ | 1 | 51161807732 | $12.80 | Shop at ECS Tuning | ||||
| 11 | Mirror holder | 2 | 51161832567 | $7.17 | ENDED | Shop at ECS Tuning | ||||
| 12 | Frame | 1 | 51161807748 | $18.58 | ENDED | Shop at ECS Tuning | ||||
| 13 | Mirror glass (driver's side) | TRAPEZ | 1 | 51161807747 | $38.24 | ENDED | Shop at ECS Tuning | |||
| 13 | Mirror glass (co-driver's side) | TRAPEZ | 1 | 51161807753 | $38.24 | ENDED | Shop at ECS Tuning | |||
| 14 | Exterior mirror left | LHD | 1 | 51161821793 | $204.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Exterior mirror right | RHD | 1 | 51161821794 | $204.09 | ENDED | Shop at ECS Tuning | |||
| 15 | Mirror holder | 2 | 51161832567 | $7.17 | ENDED | Shop at ECS Tuning | ||||
| 16 | Seal seft | 1 | 51161822061 | $12.09 | Shop at ECS Tuning | |||||
| 16 | Seal right | 1 | 51161822062 | $12.09 | Shop at ECS Tuning | |||||
| 20 | Nut | M4 | 2 | 07129925804 | $1.09 | ENDED | Shop at ECS Tuning |
