Center console for BMW 1502-2002tii 1602 (1971)

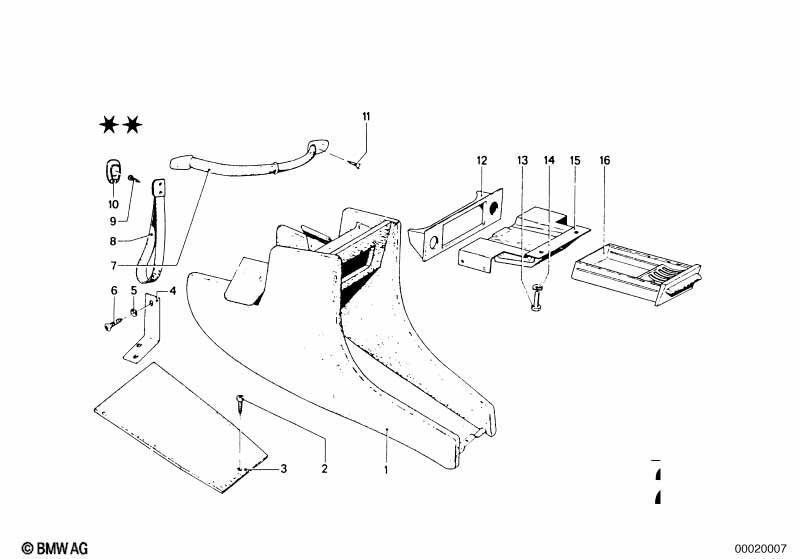

This Center console technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of storage tray | 1 | 51161825605 | $306.73 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,8X16 Z2 | 1 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Depositing box bottom panel | 1 | 51161808676 | $22.52 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket | 1 | 51161808634 | $1.07 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hollow washer | 8 | 51451804974 | $2.62 | Shop at ECS Tuning | |||||
| 06 | Recessed oval head sheet-metal screw | ST4,2X25 | 2 | 07119902473 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Handle | 2 | 03/1971 | 07/1977 | 51161888099 | $21.28 | ENDED | Shop at ECS Tuning | ||
| 08 | Grab strap | 2 | 03/1971 | 07/1977 | 51169558273 | $20.36 | ENDED | Shop at ECS Tuning | ||
| 09 | Recessed oval head sheet-metal screw | ST4,2X19 | 4 | 03/1971 | 07/1977 | 07119902468 | $0.11 | Shop at ECS Tuning | ||
| 10 | Cap | 1 | 03/1971 | 07/1977 | 51161905940 | $9.10 | Shop at ECS Tuning | |||
| 11 | Fillister head self-tapping screw | ST4,8X13-Z1 | 4 | 03/1971 | 07/1977 | 07119907956 | $0.18 | Shop at ECS Tuning | ||
| 12 | Cover | 1 | 51161814512 | $61.94 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | M4X6 | 2 | 07119907657 | $0.13 | Shop at ECS Tuning | ||||
| 14 | Wave washer | B4 | 2 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Holder | 1 | 51161832631 | ENDED | Shop at ECS Tuning | |||||
| 16 | Ashtray front | 1 | 51161808533 | $64.73 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
