Licence plate base for BMW 1502-2002tii 2002 (1972)

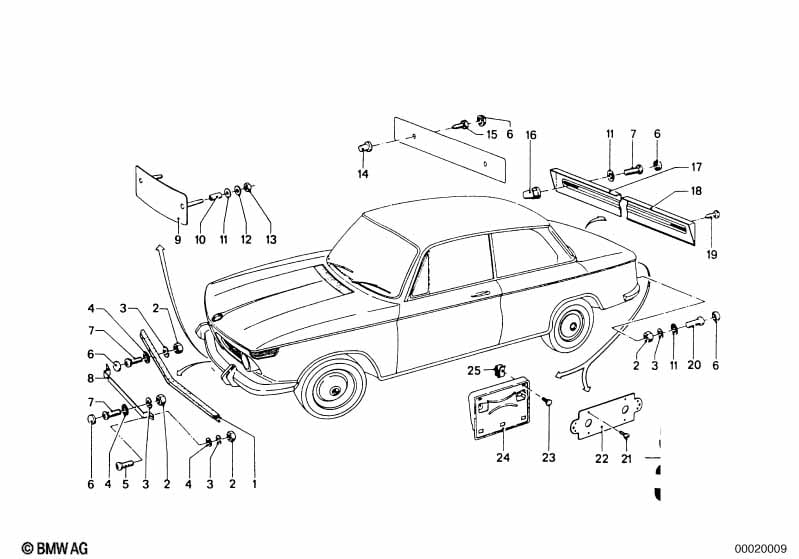

This Licence plate base technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base | 1 | 03/1966 | 12/1975 | 51115470019 | $50.54 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 03 | Spring washer | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 04 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 06 | Covering cap | SCHWARZ | X | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 07 | Screw | 4 | 51181813014 | $0.28 | ENDED | Shop at ECS Tuning | ||||
| 11 | Rubber washer | 4 | 51185480151 | $0.57 | Shop at ECS Tuning | |||||
| 16 | Cap nut | M5 | 2 | 03/1966 | 08/1973 | 51185480150 | $0.32 | ENDED | Shop at ECS Tuning | |
| 17 | Holder | 1 | 03/1966 | 04/1974 | 51185480186 | ENDED | Shop at ECS Tuning | |||
| 18 | Holder | 1 | 03/1966 | 04/1974 | 51185480185 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
