Vent window for BMW 1502-2002tii 1502 (1976)

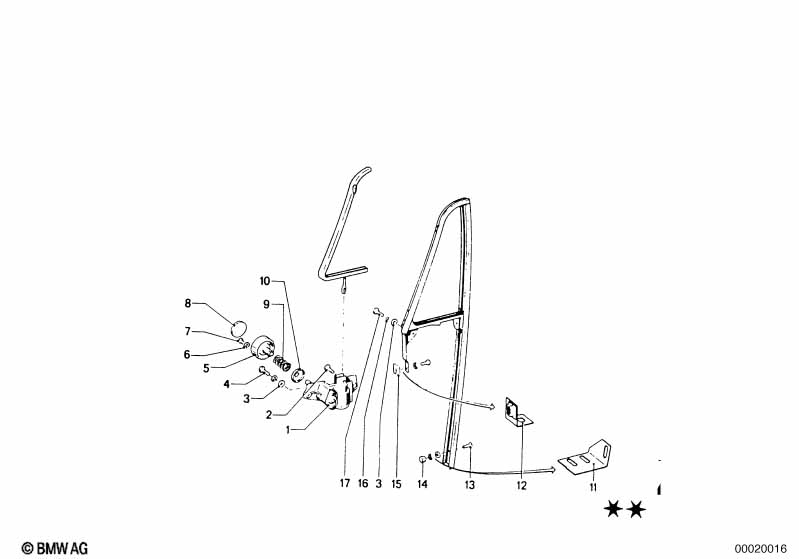

This Vent window technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vent window mechanism, left | 1 | 51326454320 | $84.31 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vent window mechanism, right | 1 | 51326454321 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X16-Z3-2 | 2 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Operating lever | 2 | 51326654364 | $23.53 | Shop at ECS Tuning | |||||
| 05 | Operating lever | 2 | 51321801246 | ENDED | Shop at ECS Tuning | |||||
| 06 | Spring washer | B4 | 2 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Fillister head screw | M4X12 | 2 | 07119900692 | $1.80 | Shop at ECS Tuning | ||||
| 08 | Cap | 2 | 51326654370 | $9.20 | ENDED | Shop at ECS Tuning | ||||
| 09 | Spring | 2 | 51326654365 | ENDED | Shop at ECS Tuning | |||||
| 10 | Trim ring | 2 | 51326754364 | ENDED | Shop at ECS Tuning | |||||
| 11 | Bracket front | 1 | 51326454331 | ENDED | Shop at ECS Tuning | |||||
| 11 | Bracket front | 1 | 51326454332 | ENDED | Shop at ECS Tuning | |||||
| 12 | Bracket | 2 | 41516454333 | ENDED | Shop at ECS Tuning | |||||
| 13 | Countersunk head screw | M6X16-8.8-ZNS3 | 2 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Tooth washer | A6,4 | 6 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M6X18 | 4 | 23317545769 | $0.67 | Shop at ECS Tuning |
