Front window guide for BMW 1502-2002tii 1602 (1971)

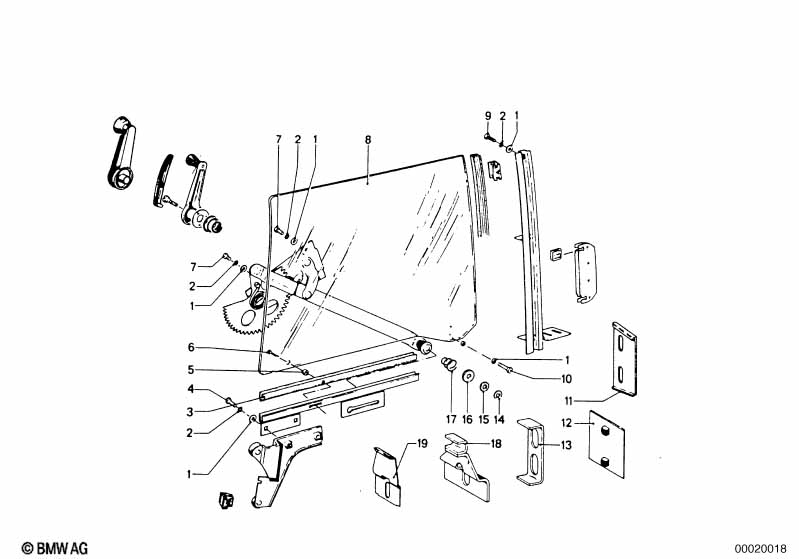

This Front window guide technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer | A6,4-200HV-ZNS3 | 8 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 02 | Tooth washer | A6,4 | 8 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Window guide rail | 1 | 51321813179 | $19.14 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X16-Z3-2 | 4 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Bush | 2 | 51321813178 | ENDED | Shop at ECS Tuning | |||||
| 06 | Set split pin 10 | 4X28 | 2 | 07509064016 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M6X8 | 6 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 08 | Door window green front left | 1 | 03/1966 | 07/1977 | 51321803715 | $134.31 | Shop at ECS Tuning | |||
| 08 | Door window green front right | 1 | 03/1966 | 07/1977 | 51321803716 | $134.31 | Shop at ECS Tuning | |||
| 08 | Door window clear front left | 1 | 03/1966 | 07/1977 | 51321813183 | $122.00 | Shop at ECS Tuning | |||
| 08 | Door window clear front right | 1 | 03/1966 | 07/1977 | 51321813184 | $122.00 | Shop at ECS Tuning | |||
| 09 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X25 | 4 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Stopper | 2 | 03/1966 | 07/1977 | 51326454326 | ENDED | Shop at ECS Tuning | |||
| 12 | Plate | 2 | 51326454325 | ENDED | Shop at ECS Tuning | |||||
| 14 | Circlip | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 15 | Washer | 2 | 51321836324 | $0.55 | Shop at ECS Tuning | |||||
| 16 | Washer | 2 | 51321836323 | $0.53 | Shop at ECS Tuning | |||||
| 17 | Spring | 2 | 51321836322 | $0.58 | Shop at ECS Tuning | |||||
| 19 | Stopper | 2 | 03/1966 | 07/1977 | 51326454330 | ENDED | Shop at ECS Tuning |
