Door trim panel for BMW 1502-2002tii 2002ti (1972)

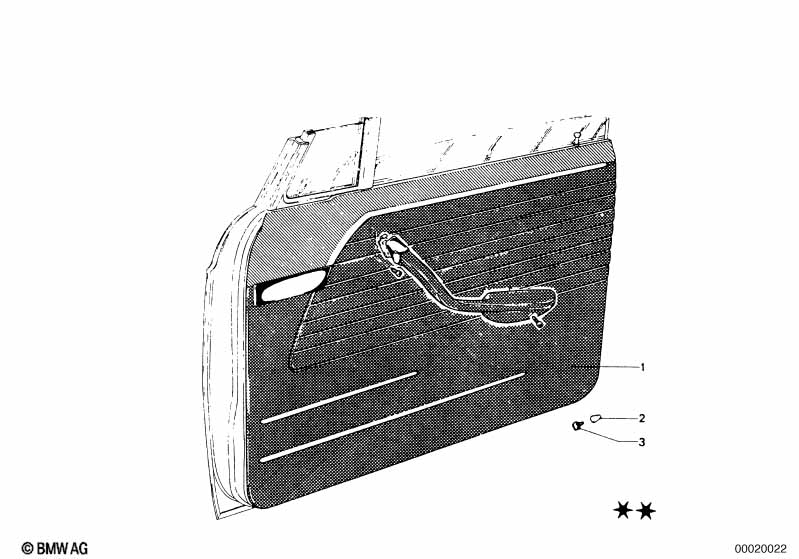

This Door trim panel technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door trim panel left | SCHWARZ/SCHWARZ | 1 | 51411816855 | $394.44 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door trim panel left | MARINE/SCHWARZ | 1 | 51411816859 | $359.15 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door trim panel left | GOLDBRAUN/SCHW | 1 | 51411816861 | $359.15 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Interior left front moulding | 1 | 51216440181 | $62.80 | Shop at ECS Tuning | |||||

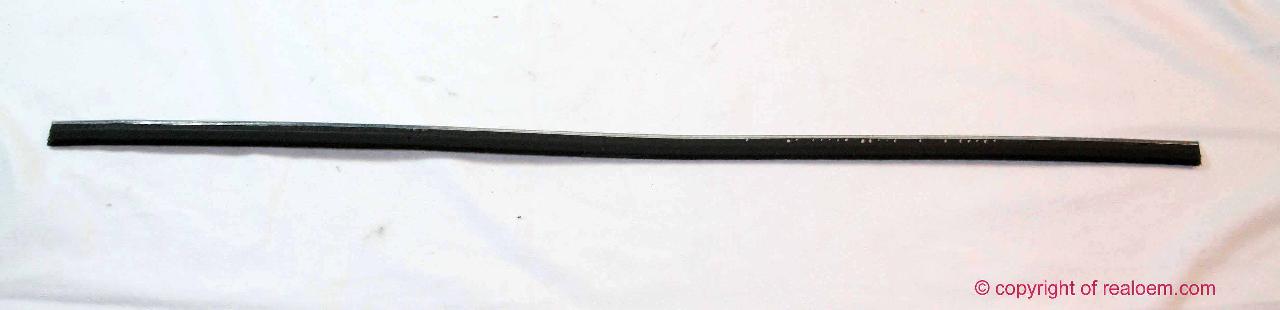

| -- | Door weatherstrip inner | 1 | 51216454229 | $63.18 | Shop at ECS Tuning | |||||

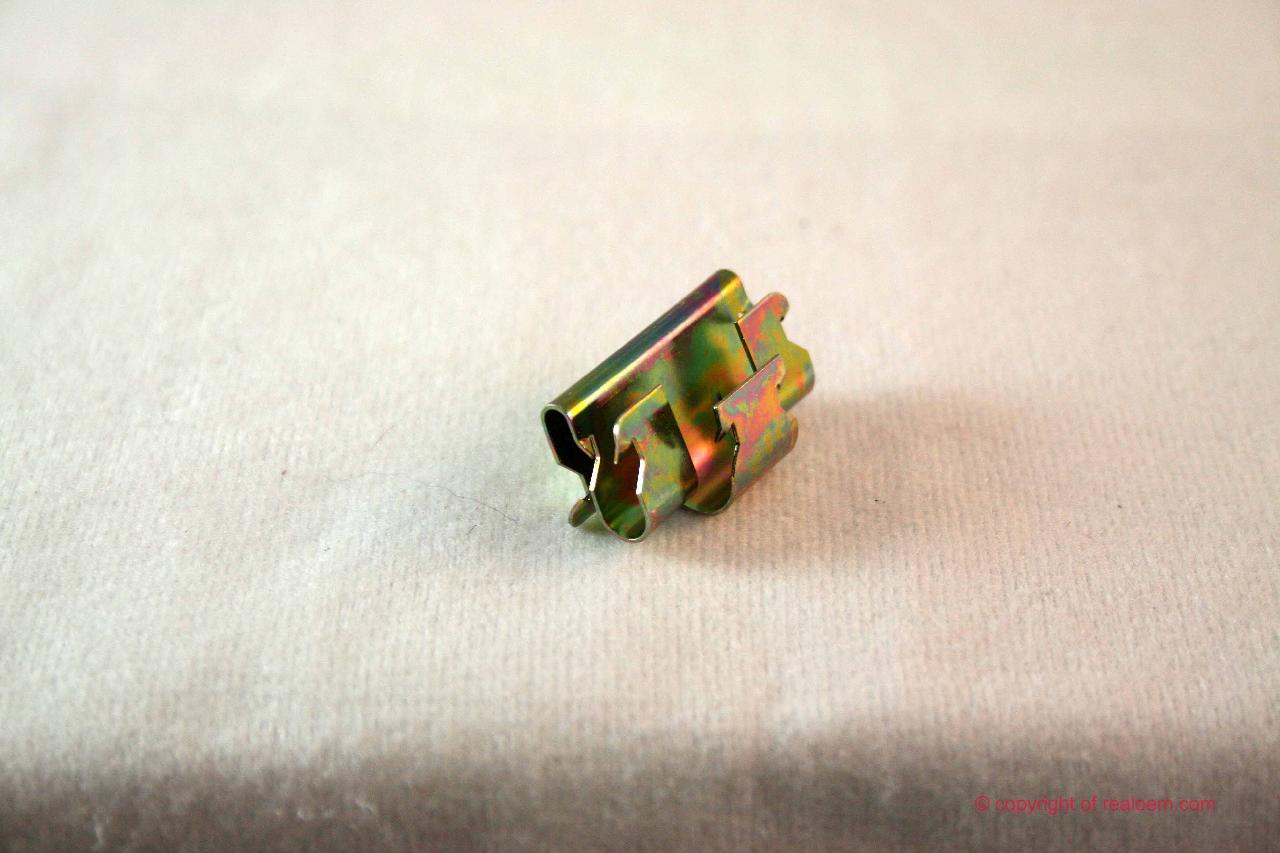

| -- | Clamp | 4 | 51216454231 | $3.11 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | SCHWARZ/SCHWARZ | 1 | 51411816856 | $394.44 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door trim panel right | MARINE/SCHWARZ | 1 | 51411816860 | $359.15 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door trim panel right | GOLDBRAUN/SCHW | 1 | 51411816862 | $359.15 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Interior right front moulding | 1 | 51216440182 | $62.80 | Shop at ECS Tuning | |||||
| -- | Door weatherstrip inner | 1 | 51216454229 | $63.18 | Shop at ECS Tuning | |||||
| -- | Clamp | 4 | 51216454231 | $3.11 | Shop at ECS Tuning | |||||
| 03 | Clamp | 2 | 51411808209 | $1.16 | Shop at ECS Tuning | |||||
| 03 | Clamp | 24 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
