Door trim panel/wooden cover front for BMW 1502-2002tii 1602 (1971)

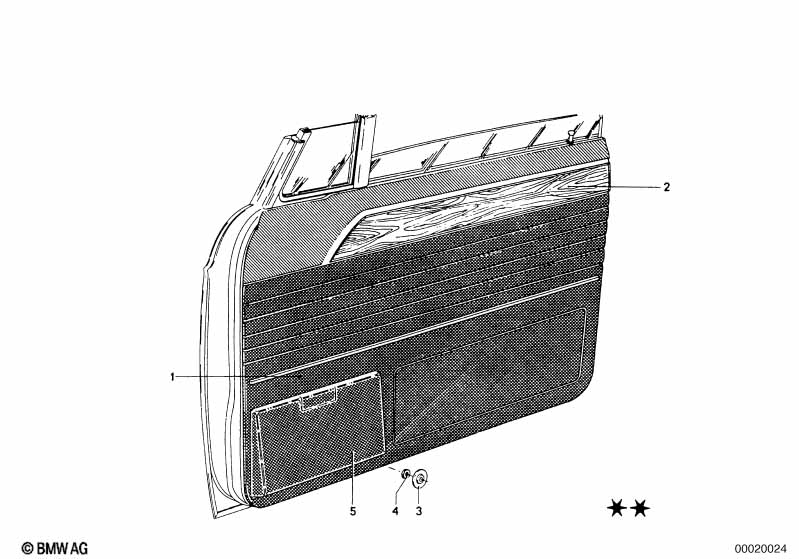

This Door trim panel/wooden cover front technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door trim panel left | "L" SCHWARZ | 1 | 51411836497 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | "L" SCHWARZ | 1 | 51411836498 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wooden cover front left | "L" | 1 | 51411836381 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wooden cover front right | "L" | 1 | 51411836382 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | 10 | 51411805353 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 04 | Set nut 25 | M4 | 10 | 07509064279 | ENDED | Shop at ECS Tuning | ||||
| 05 | Door pocket | SCHWARZ | 2 | 51411805525 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Door trim panel/wooden cover front?
- This technical diagram illustrates the Door trim panel/wooden cover front within the Vehicle trim group for the 1502-2002tii 1602 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel left (Part #51411836497).
- Which models use the hardware listed in this Door trim panel/wooden cover front?
- The hardware and components featured in the Door trim panel/wooden cover front are specific to the 1502-2002tii 1602 produced during 1971. These technical specifications ensure that parts like the Door trim panel left (51411836497) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel/wooden cover front assembly?
- Each item in the Door trim panel/wooden cover front corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Door trim panel left by locating its position on the schematic, which then links to the official BMW part number 51411836497 for the Vehicle trim section.
